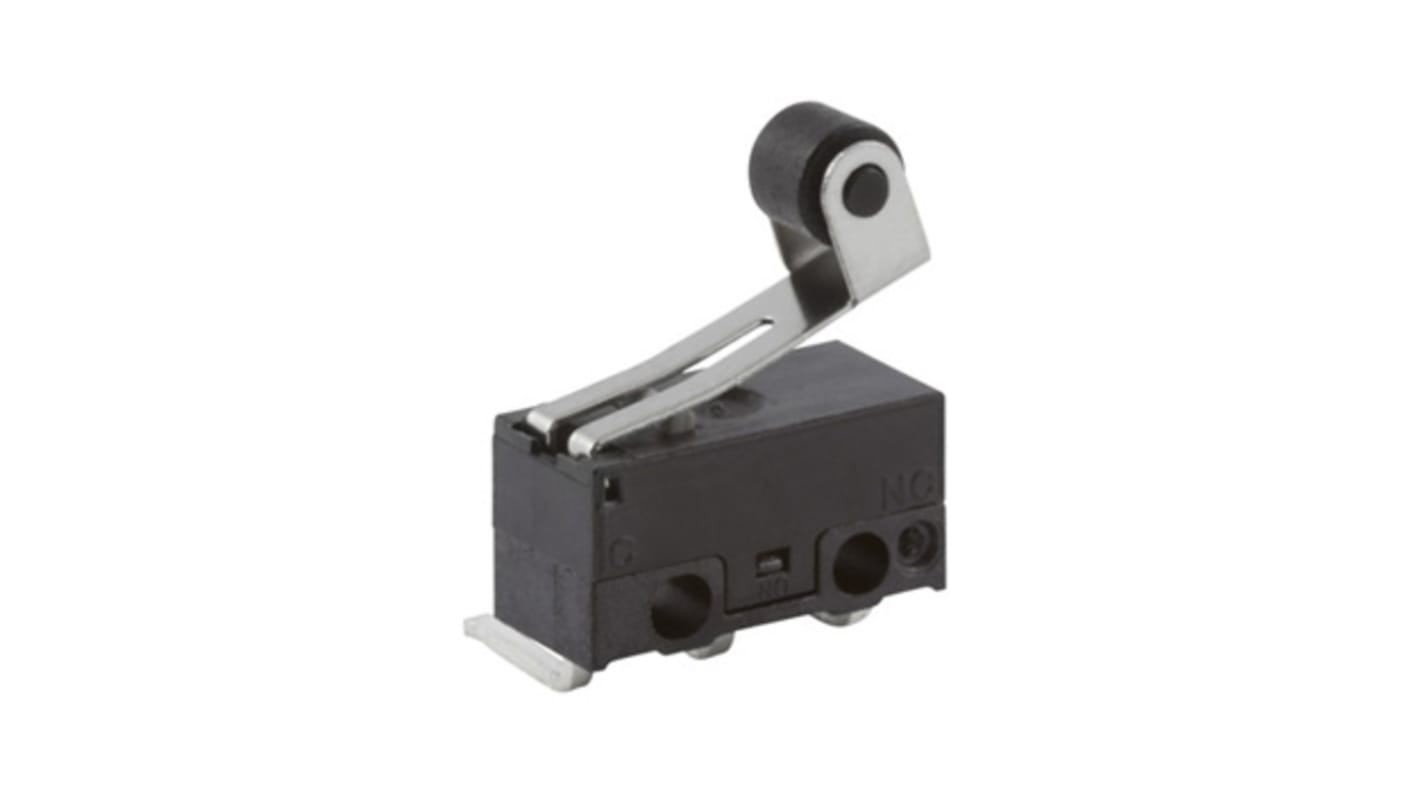

ZF Roller Lever Micro Switch, Right Angle PCB Terminal, 50 mA @ 30 V dc, SPDT
RS Stock No.:
706-4187
Mfr. Part No.:
DG23-B2RA
Manufacturer:
ZF
View all Micro Switches
Price Each
€0.91
(exc. VAT)
€1.12
(inc. VAT)
Add to Basket
Units
Add to basket
Stock check temporarily unavailable - call for stock availability
Units
Per unit
1 +
€0.91
Add to a parts list
Packaging Options:
Standard Pack
Production Pack
RS Stock No.:
706-4187
Mfr. Part No.:
DG23-B2RA
Manufacturer:
ZF
Technical data sheets
Legislation and Compliance
Product Details
Specifications
DG sub-subminiature switch Data Sheet
Group 6
3D
Login to download CAD Models
RoHS Certificate of Compliance
Statement of conformity
Miniature PCB Microswitch
Available with a choice of actuators
Switch body moulded from UL94V-0 material
SPDT silver-plated wiping contacts
Operating temperature range: -25 to +85°C
Approvals
UL recognised component, CSA certified
Attribute
Value
Actuator Type
Roller Lever
Terminal Type
Right Angle PCB
Contact Current Rating
50 mA @ 30 V dc
Contact Configuration
SPDT
Operating Force
0.59 N
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+85°C
Contact Material
Gold Plated
Mechanical Life
1000000Operations
Operating Temperature Range
-25 → +85°C
