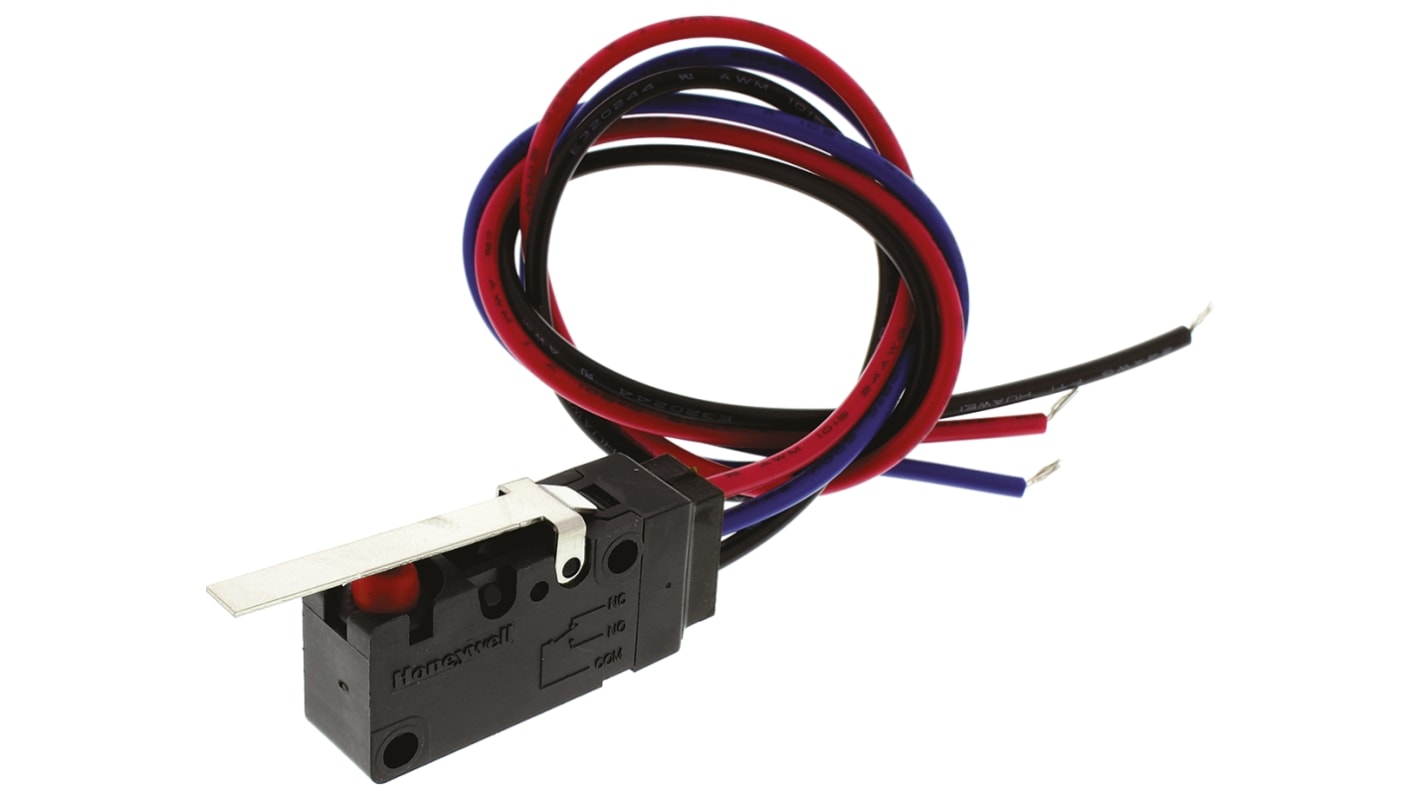

Honeywell Standard Straight Lever Microswitch, Pre-wired Terminal, 100 mA @ 48 V dc, SPDT, IP67
- RS Stock No.:
- 749-6506
- Mfr. Part No.:
- V15W11-WZ200A02-AW1
- Manufacturer:
- Honeywell
Stock information currently inaccessible
- RS Stock No.:
- 749-6506
- Mfr. Part No.:
- V15W11-WZ200A02-AW1
- Manufacturer:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Standard Straight Lever | |
| Terminal Type | Pre-wired | |
| Contact Current Rating | 100 mA @ 48 V dc | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 200 gf | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Gold Plated | |
| Case Material | PBT | |
| Mechanical Life | 1000000Cycles | |
| Operating Temperature Range | -40 → +85°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Standard Straight Lever | ||
Terminal Type Pre-wired | ||
Contact Current Rating 100 mA @ 48 V dc | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 200 gf | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Gold Plated | ||
Case Material PBT | ||
Mechanical Life 1000000Cycles | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- CN
