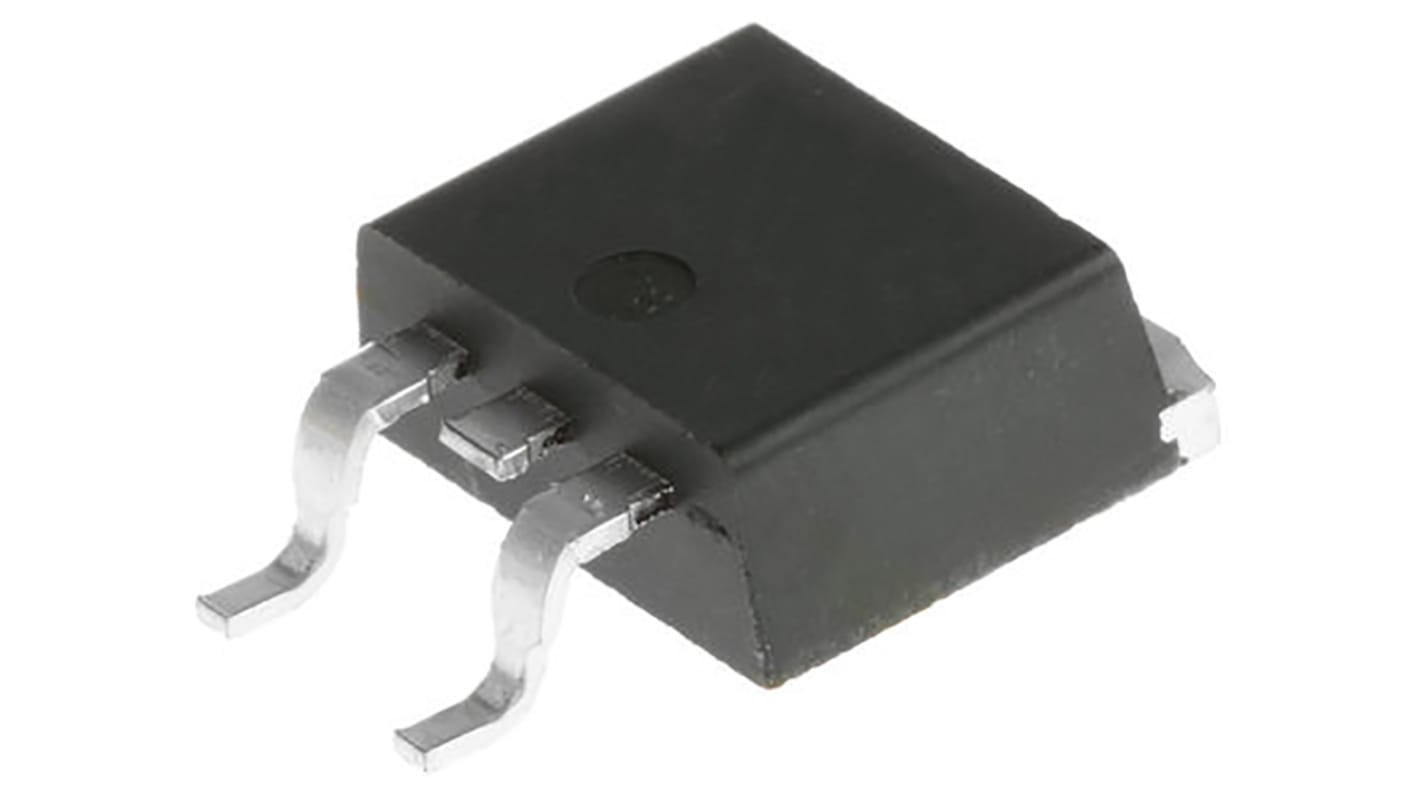

Vishay Type P-Channel MOSFET, 110 A, 60 V Enhancement, 3-Pin TO-263
- RS Stock No.:
- 919-0938
- Mfr. Part No.:
- SUM110P06-07L-E3
- Manufacturer:
- Vishay
Subtotal (1 reel of 800 units)*
€1,592.00
(exc. VAT)
€1,960.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 800 + | €1.99 | €1,592.00 |
*price indicative
- RS Stock No.:
- 919-0938
- Mfr. Part No.:
- SUM110P06-07L-E3
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | 110A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-263 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.0088Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 375W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 1.5V | |
| Typical Gate Charge Qg @ Vgs | 230nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 15.875mm | |
| Height | 4.83mm | |
| Width | 10.414 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id 110A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-263 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.0088Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 375W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 1.5V | ||
Typical Gate Charge Qg @ Vgs 230nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Length 15.875mm | ||
Height 4.83mm | ||
Width 10.414 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
FEATURES
• TrenchFET® power MOSFET
• Package with low thermal resistance
P-Channel MOSFET, 30V to 80V, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
