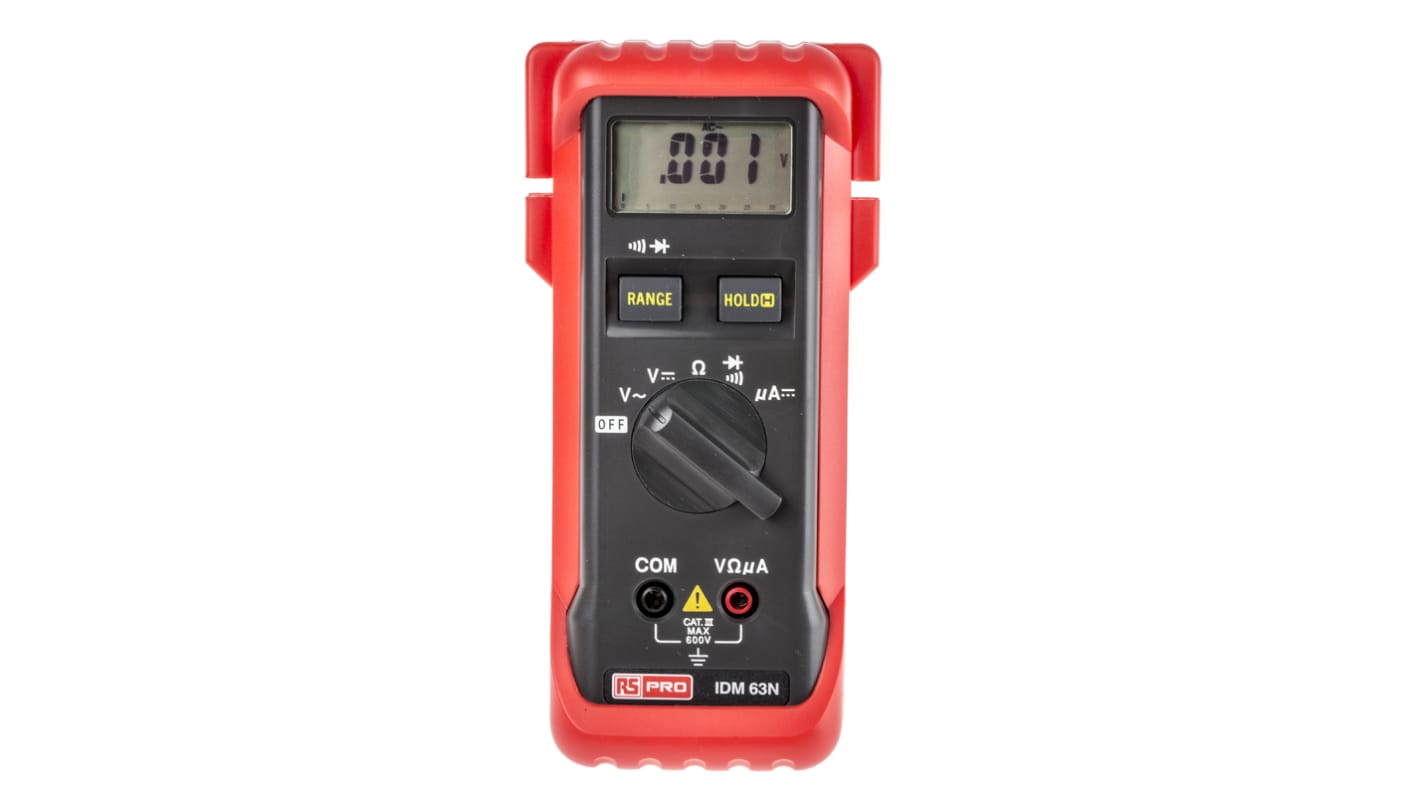

RS PRO IDM63N Handheld Digital Multimeter, 3mA dc Max, 600V ac Max

RS Stock No.:: 123-3240
Manufacturer:: RS PRO

RS PRO IDM63N Handheld Digital Multimeter, 3mA dc Max, 600V ac Max

Subtotal (1 unit)*

€130.11

(exc. VAT)

€160.04

(inc. VAT)

In Stock

212 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€130.11

*price indicative

Compare

Calibration Options:

RS PRO IDM63N Handheld Digital Multimeter, 3mA dc Max, 600V ac Max - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 123-3393

Each

€203.11

(exc. VAT)

€249.83

(inc. VAT)

RS PRO IDM63N Handheld Digital Multimeter, 3mA dc Max, 600V ac Max - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 123-3394

Each

€222.11

(exc. VAT)

€273.20

(inc. VAT)

RS Stock No.:: 123-3240
Manufacturer:: RS PRO

RS PRO IDM63N Pocket Digital Multimeter

RS PRO IDM63N high-performance digital multimeter measuring AC-DC voltage, electrical current, resistance, continuity and diode test. This meter has an LCD display where the measurement readouts can be viewed.

RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits

3200 Count digital display
65 segment analogue bar graph
Full Autoranging with manual override
Continuity and Diode Test
Auto Power Off
Fast continuity beeper (0.2 msec)
Data Hold
Protective Holster with tilt stand
800-hour battery life
Display hold function
Conforms to IEC1010-1 600 V category III

What does it measure?

DC and AC Voltages - up to 600 V
DC Current - up to 3000μA
Resistance and continuity checking - up to 30 MΩ
Diode - open circuit voltage up to 3.3 V

Slim Design

Ergonomically designed slim shape with one handed operating knob and buttons. It just fits into the palm of your hand.

Extra Protection

The multimeter is supplied with a protective holster that includes a built-in stand and convenient test lead storage. This holster provides an extra degree of protection and convenience. Wrap the leads around the holster to store the test probes.

Batteries

Batteries can be easily replaced by removing the battery door for battery replacement. Designed for users convenience without opening the bottom case.

What does it include?

Pair of Test Leads
Battery (Installed)
User Manual
Holster

Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	IDM63N
	Functions Measured	AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum Resistance Measurement	30MΩ
	Absolute Maximum DC Current Measurement	3mA dc
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum AC Voltage Measurement	600V ac
	True RMS	No
	DC Current Measurement Resolution	0.1µA dc
	Resistance Measurement Resolution	100mΩ
	DC Voltage Measurement Resolution	0.1mV dc
	AC Voltage Measurement Resolution	1mV ac
	Safety Category Level	CAT III
	Weight	310g
	Best DC Current Accuracy	±1% + 2 Digits
	Height	165mm
	Best DC Voltage Accuracy	±0.5% + 2 Digits
	Minimum Operating Temperature	0°C
	Best Resistance Measurement Accuracy	±1% + 4 Digits
	Maximum Operating Temperature	+50°C
	Battery Type	AAA 1.5 V, AM4, IEC LR03
	Safety Category Voltage	600V
	Width	36mm
	Length	80mm
	Best AC Voltage Accuracy	±1.5% + 5 Digits
	Dimensions	80 x 36 x 165mm

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Display Type Digital
	Model Number p IDM63N
	Functions Measured AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum Resistance Measurement 30MΩ
	Absolute Maximum DC Current Measurement 3mA dc
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum AC Voltage Measurement 600V ac
	True RMS No
	DC Current Measurement Resolution 0.1µA dc
	Resistance Measurement Resolution 100mΩ
	DC Voltage Measurement Resolution 0.1mV dc
	AC Voltage Measurement Resolution 1mV ac
	Safety Category Level CAT III
	Weight 310g
	Best DC Current Accuracy ±1% + 2 Digits
	Height 165mm
	Best DC Voltage Accuracy ±0.5% + 2 Digits
	Minimum Operating Temperature 0°C
	Best Resistance Measurement Accuracy ±1% + 4 Digits
	Maximum Operating Temperature +50°C
	Battery Type AAA 1.5 V, AM4, IEC LR03
	Safety Category Voltage 600V
	Width 36mm
	Length 80mm
	Best AC Voltage Accuracy ±1.5% + 5 Digits
	Dimensions 80 x 36 x 165mm
