Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	StarTech.com
	Product Type	Network Card
	Bus Type	PCIe
	Network Speed	100Mbps
	Interface Type	RJ45
	Number of Ports	4
	Maximum Data Transfer Rate	2.5Gbps
	Wake-on-LAN WoL	Yes
	Standards/Approvals	WEEE

	Select all
	Brand StarTech.com
	Product Type Network Card
	Bus Type PCIe
	Network Speed 100Mbps
	Interface Type RJ45
	Number of Ports 4
	Maximum Data Transfer Rate 2.5Gbps
	Wake-on-LAN WoL Yes
	Standards/Approvals WEEE

Datasheet - PR42GI-NETWORK-CARD

COO (Country of Origin):: MY

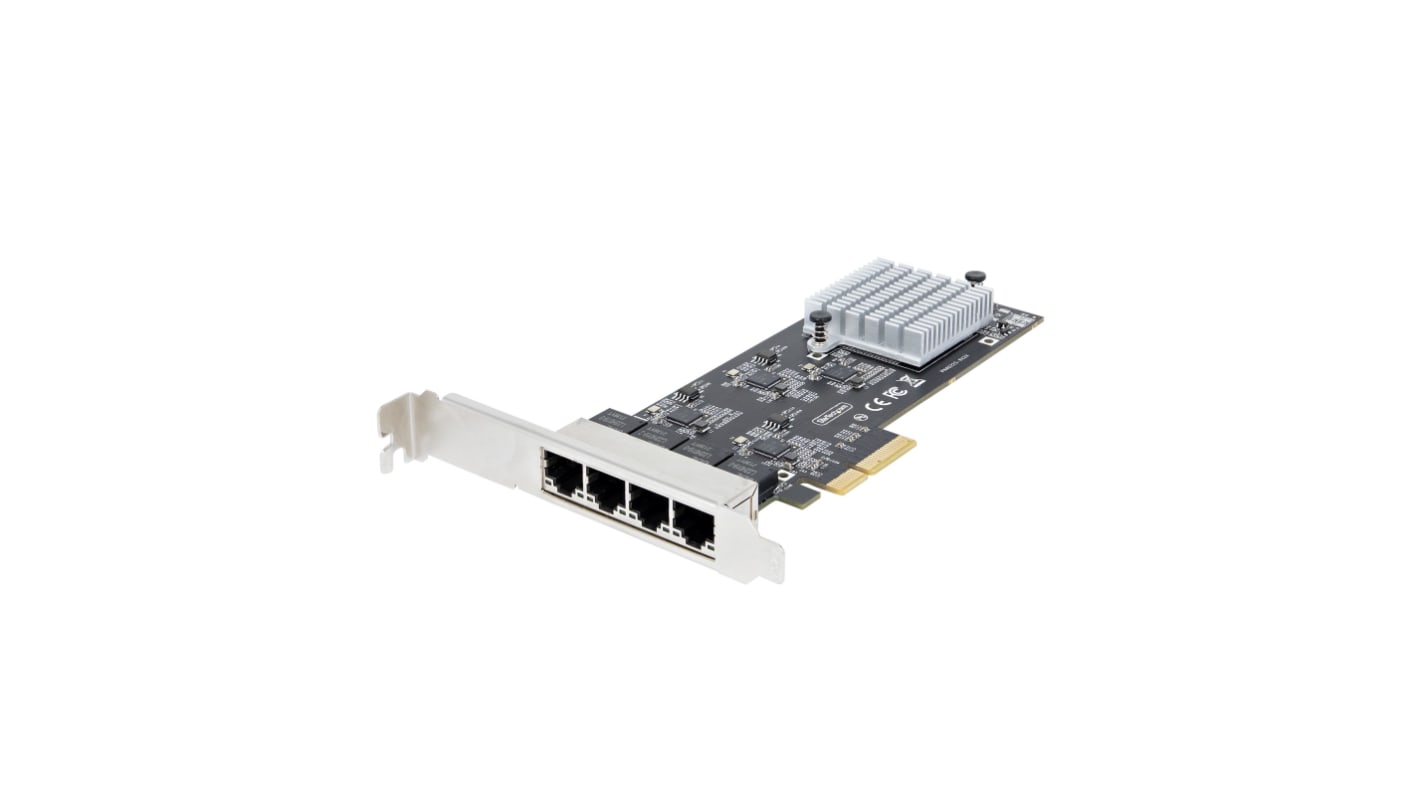

StarTech Network Card, 2.5 Gbps Network Speed, 4 Ports - PR42GI-NETWORK-CARD

This network card provides quad independent Ethernet connections for desktops and servers, offering multispeed compatibility to bridge new and legacy network infrastructure. Fitted as a PCIe expansion device, it supports remote management and boot operations while utilising existing Cat5e or Cat6 cabling for up to 2.5GBASE-T throughput. The design includes low-profile bracket support for small form factor systems and compatibility with common operating systems.

Features and Benefits:

• 2.5Gbps maximum data transfer rate increases throughput for heavy traffic
• Independent Intel I225-V controllers reduce port contention
• PCIe x4 Interface enables host bandwidth for multiple links
• Wake-on-LAN capability permits remote system power-up
• 9K jumbo frame support lowers CPU overhead for large transfers

Applications

• Used for multi-gigabit workstation storage access
• Suitable for networked media streaming and content delivery
• Ideal for server LAN consolidation in small racks
• Used with mixed-speed cabling to upgrade office networks

Which expansion slot is required for installation?

It requires an available PCI Express x4 slot or higher.

Which ports support Wake-on-LAN?

Only Ethernet Port 1 supports Wake-on-LAN

the remaining ports do not.

What cabling is acceptable to reach 2.5G speeds?

Cat5e or Cat6 cabling is supported to achieve 2.5GBASE-T operation.

What operating systems are compatible with the device?

It is compatible with Windows, Windows Server, VMware and Linux.

Are low-profile systems accommodated during installation?

Yes, a low-profile bracket is included for small form factor installation.

StarTech.com 4 Port PCIe RJ45 Network Card, 100Mbps
