Midas 2.3 in Passive matrix OLED Display 160 x 128 pixel COG I2C, Parallel, SPI
- RS Stock No.:
- 204-620
- Mfr. Part No.:
- MDOG160128B1Y-RGBM
- Manufacturer:
- Midas
Subtotal (1 unit)*
€30.04
(exc. VAT)
€36.95
(inc. VAT)
In Stock
- 65 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €30.04 |
*price indicative
- RS Stock No.:
- 204-620
- Mfr. Part No.:
- MDOG160128B1Y-RGBM
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Product Type | OLED Display | |
| Diagonal Display Size | 2.3in | |
| Viewing Area Dimensions | 33.575 x 26.864 mm | |
| Aspect Ratio | 5:4 | |
| Matrix Type | Passive | |
| Screen Resolution | 160 x 128 pixel | |
| Interface Type | I2C, Parallel, SPI | |
| Driver Mounting | COG | |
| External Depth | 1.6mm | |
| Minimum Operating Temperature | -40°C | |
| External Height | 48.50mm | |
| External Width | 39.90mm | |
| Touch Screen Type | No Touch Screen | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS Compliant | |
| Forward Voltage | 3V | |
| Series | MDOG160128B1Y-RGBM | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Product Type OLED Display | ||
Diagonal Display Size 2.3in | ||
Viewing Area Dimensions 33.575 x 26.864 mm | ||
Aspect Ratio 5:4 | ||
Matrix Type Passive | ||
Screen Resolution 160 x 128 pixel | ||
Interface Type I2C, Parallel, SPI | ||
Driver Mounting COG | ||
External Depth 1.6mm | ||
Minimum Operating Temperature -40°C | ||
External Height 48.50mm | ||
External Width 39.90mm | ||
Touch Screen Type No Touch Screen | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS Compliant | ||
Forward Voltage 3V | ||
Series MDOG160128B1Y-RGBM | ||
- COO (Country of Origin):
- TW

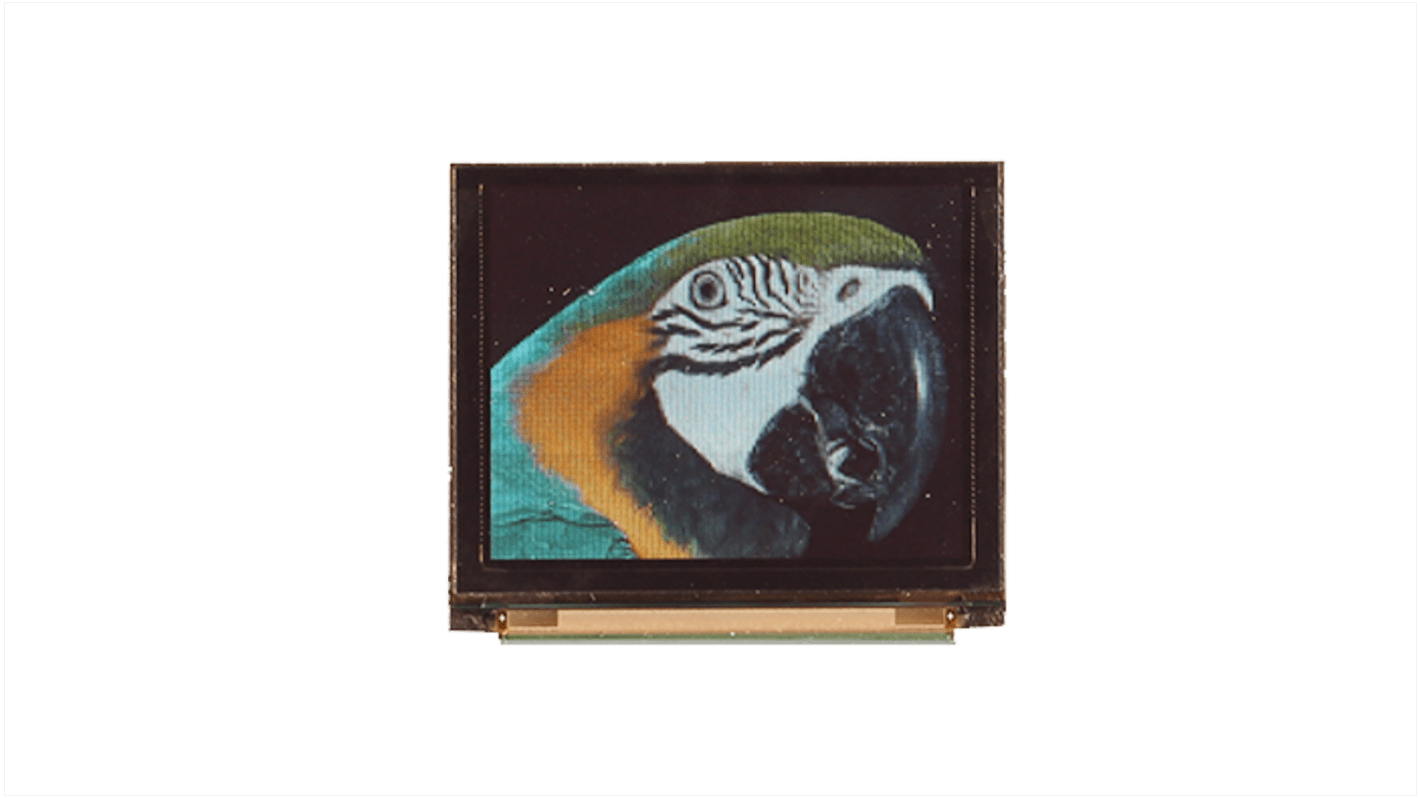

The Midas 160x128 graphic OLED display has a diagonal size of 1.69 inch and is constructed using Chip on Glass technology. It features a full color appearance, making it suitable for applications that require vibrant visuals and detailed graphical output.
RoHS compliant
Supports I²C Parallel and SPI interface
