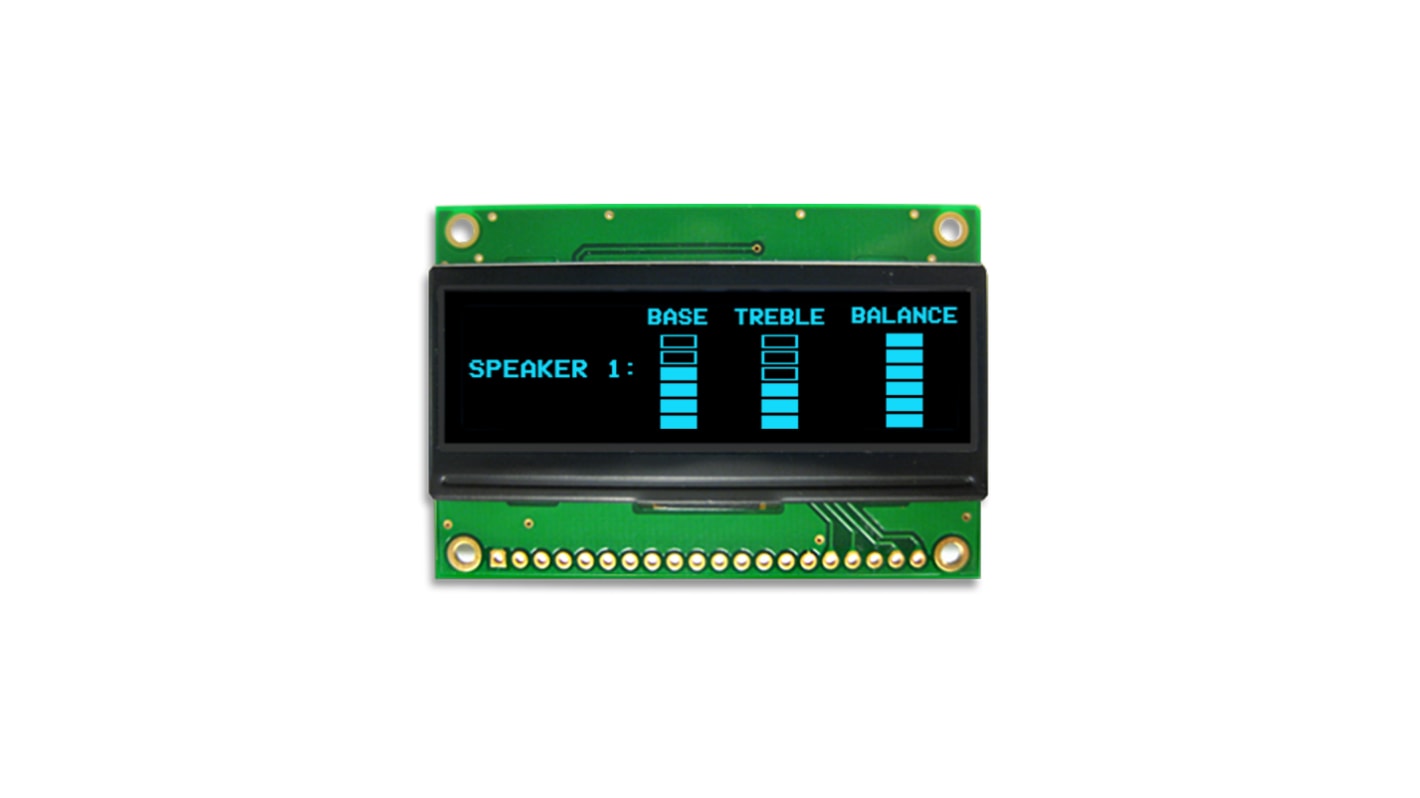

NEWHAVEN DISPLAY INTERNATIONAL 2.23 in Passive matrix Blue OLED Display 128 x 32 pixel PCB
- RS Stock No.:
- 205-060
- Mfr. Part No.:
- NHD-2.23-12832UCB3
- Manufacturer:
- NEWHAVEN DISPLAY INTERNATIONAL
Subtotal (1 unit)*
€43.62
(exc. VAT)
€53.65
(inc. VAT)
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €43.62 |
*price indicative
- RS Stock No.:
- 205-060
- Mfr. Part No.:
- NHD-2.23-12832UCB3
- Manufacturer:
- NEWHAVEN DISPLAY INTERNATIONAL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NEWHAVEN DISPLAY INTERNATIONAL | |
| Product Type | OLED Display | |
| Diagonal Display Size | 2.23in | |
| Viewing Area Dimensions | 57.02 x 15.10 mm | |
| Aspect Ratio | 3.78:1 | |
| Matrix Type | Passive | |
| Screen Resolution | 128 x 32 pixel | |
| Contrast Ratio | 10000:1 | |
| Driver Mounting | PCB | |
| External Depth | 5.5mm | |
| Minimum Operating Temperature | -40°C | |
| External Height | 63.2mm | |
| External Width | 43.1mm | |
| Touch Screen Type | No Touch Screen | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH, RoHS | |
| Display Colour | Blue | |
| Power Dissipation | 0.186W | |
| Forward Current | 62mA | |
| Forward Voltage | 3V | |
| Series | NHD-2.23-12832UCB3 | |
| Select all | ||
|---|---|---|
Brand NEWHAVEN DISPLAY INTERNATIONAL | ||
Product Type OLED Display | ||
Diagonal Display Size 2.23in | ||
Viewing Area Dimensions 57.02 x 15.10 mm | ||
Aspect Ratio 3.78:1 | ||
Matrix Type Passive | ||
Screen Resolution 128 x 32 pixel | ||
Contrast Ratio 10000:1 | ||
Driver Mounting PCB | ||
External Depth 5.5mm | ||
Minimum Operating Temperature -40°C | ||
External Height 63.2mm | ||
External Width 43.1mm | ||
Touch Screen Type No Touch Screen | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH, RoHS | ||
Display Colour Blue | ||
Power Dissipation 0.186W | ||
Forward Current 62mA | ||
Forward Voltage 3V | ||
Series NHD-2.23-12832UCB3 | ||
The NEWHAVEN DISPLAY INTERNATIONAL OLED display offers high contrast viewing with vibrant blue graphics set against a deep black background. The OLED display technology is self-illuminating and engineered to provide high visibility and ensure easy readability from any angle in different environments. With this OLED, you can expect top speed response times.
Controller Type is SSD1305
Compatibility with Arduino and similar development boards
