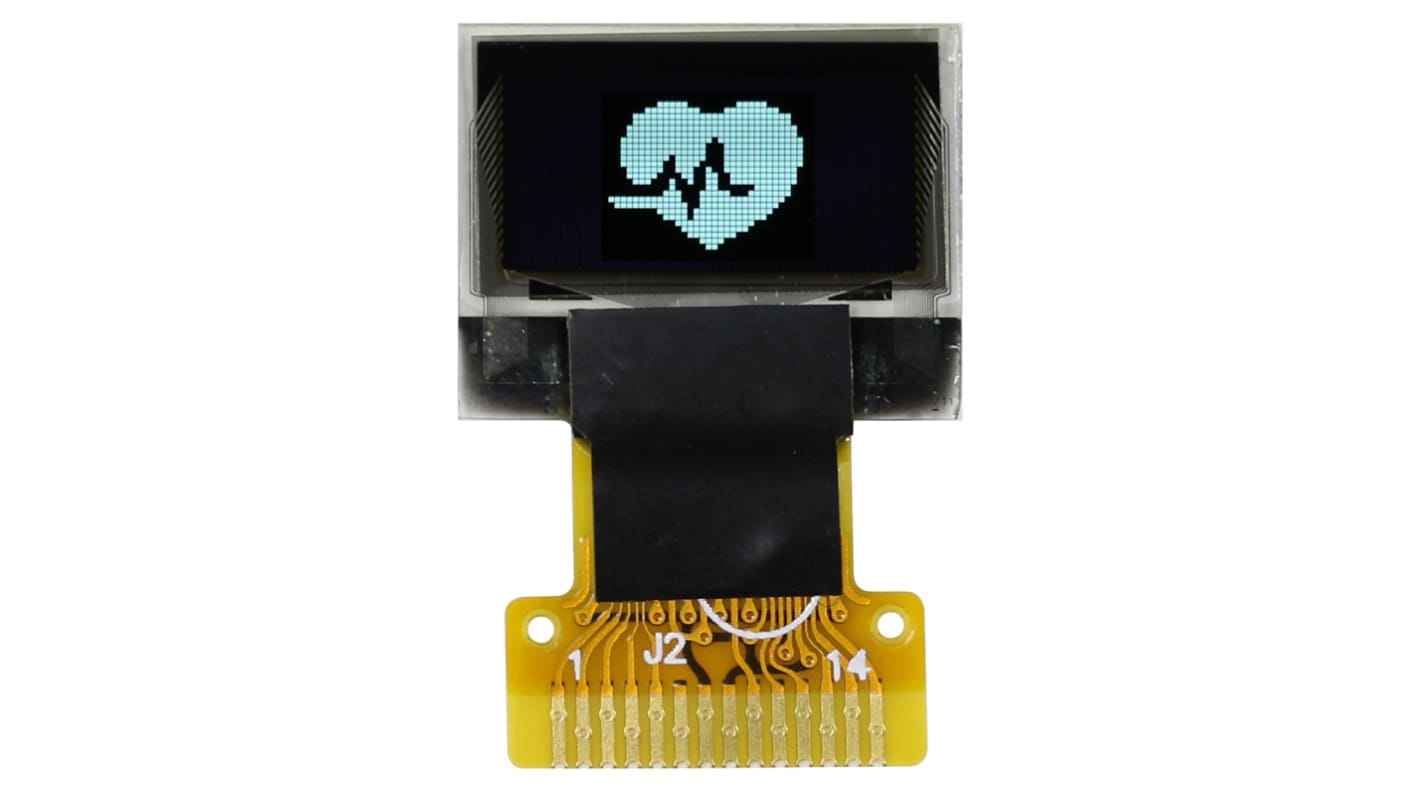

Midas 0.49 in Passive matrix White OLED Display 64 x 32 pixel COT
- RS Stock No.:
- 254-3555
- Mfr. Part No.:
- MCOT064032A1V-WI
- Manufacturer:
- Midas
Bulk discount available
Subtotal (1 unit)*
€4.87
(exc. VAT)
€5.99
(inc. VAT)
In Stock
- 56 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €4.87 |
| 5 + | €4.46 |
*price indicative
- RS Stock No.:
- 254-3555
- Mfr. Part No.:
- MCOT064032A1V-WI
- Manufacturer:
- Midas
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Product Type | OLED Display | |
| Diagonal Display Size | 0.49in | |
| Viewing Area Dimensions | 12.58 x 6.58 mm | |
| Aspect Ratio | 11.6:1.3 | |
| Matrix Type | Passive | |
| Screen Resolution | 64 x 32 pixel | |
| Contrast Ratio | 2000:1 | |
| External Depth | 1.3mm | |
| Driver Mounting | COT | |
| Minimum Operating Temperature | -40°C | |
| External Height | 1.3mm | |
| External Width | 14.5mm | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Series | MCOT064032A1V-WI | |
| Display Colour | White | |
| Forward Voltage | 3.3V dc | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Product Type OLED Display | ||
Diagonal Display Size 0.49in | ||
Viewing Area Dimensions 12.58 x 6.58 mm | ||
Aspect Ratio 11.6:1.3 | ||
Matrix Type Passive | ||
Screen Resolution 64 x 32 pixel | ||
Contrast Ratio 2000:1 | ||
External Depth 1.3mm | ||
Driver Mounting COT | ||
Minimum Operating Temperature -40°C | ||
External Height 1.3mm | ||
External Width 14.5mm | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
Series MCOT064032A1V-WI | ||
Display Colour White | ||
Forward Voltage 3.3V dc | ||
The Midas chip-on-tab 48 x 64 resolution graphic OLED display has a white on black appearance. This display uses the SSD1306 controller.
14 connections
Operating temperature -40°C to +80°C
