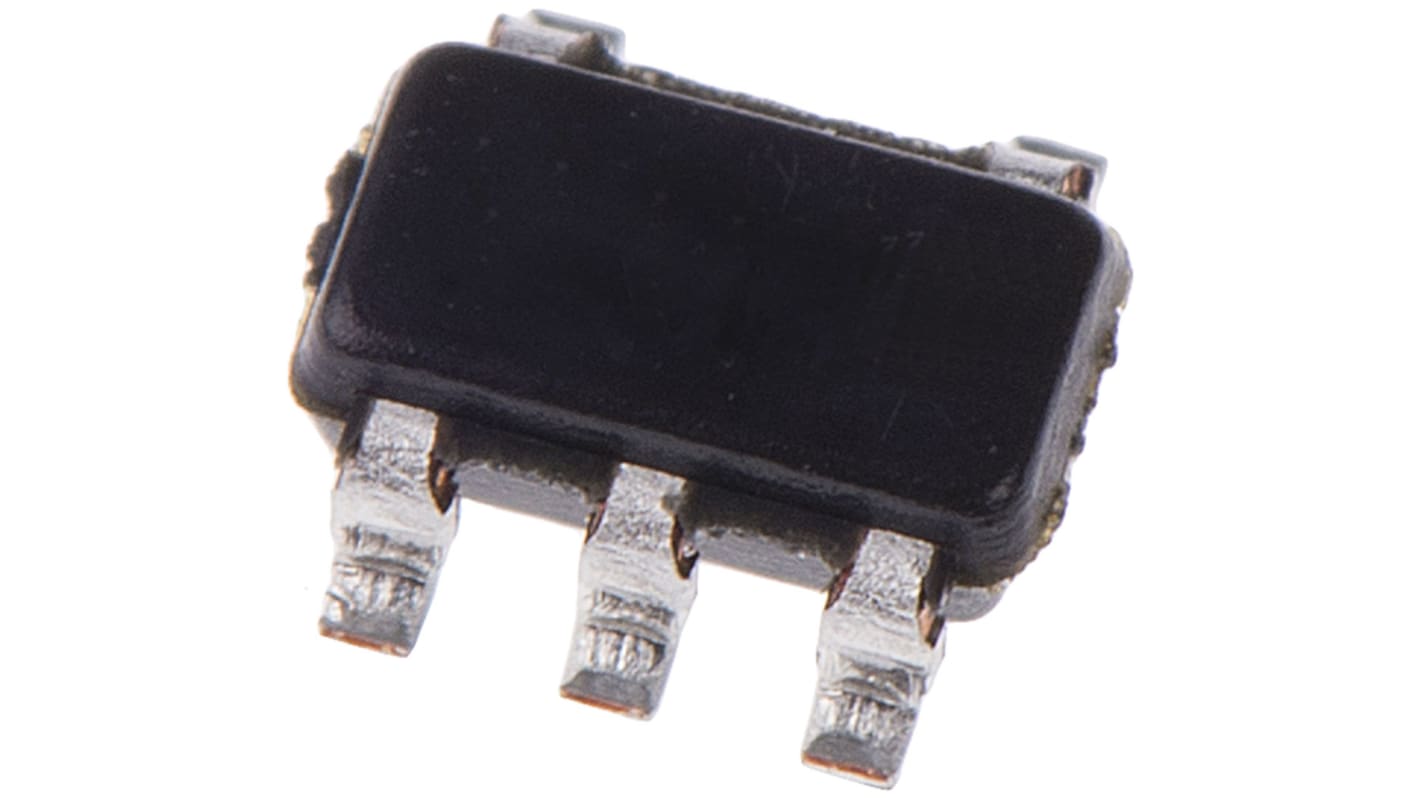

TSX561AIYLT STMicroelectronics, Op Amp, RRIO, 900kHz 10 kHz, 3 → 16 V, 5-Pin SOT-23

RS Stock No.:: 165-5645
Mfr. Part No.:: TSX561AIYLT
Manufacturer:: STMicroelectronics

TSX561AIYLT STMicroelectronics, Op Amp, RRIO, 900kHz 10 kHz, 3 → 16 V, 5-Pin SOT-23

Price Each (On a Reel of 3000)**

€0.899

(exc. VAT)

€1.106

(inc. VAT)

Temporarily out of stock - back order for despatch 23-05-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Reel**
3000 +	€0.899	€2,697.00

**price indicative

RS Stock No.:: 165-5645
Mfr. Part No.:: TSX561AIYLT
Manufacturer:: STMicroelectronics

TSX561, TSX562, TSX564, TSX561A, TSX562A, TSX564A, Micropower, wide bandwidth (900kHz), 16V CMOS Operational Amplifiers
ESD Control Selection Guide V1

Attribute	Value
Amplifier Type	Low Power, Precision
Mounting Type	Surface Mount
Package Type	SOT-23
Power Supply Type	Single
Number of Channels per Chip	1
Pin Count	5
Typical Single Supply Voltage	3 → 16 V
Typical Gain Bandwidth Product	900kHz
Typical Slew Rate	1.1V/µs
Maximum Operating Frequency	10 kHz
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Rail to Rail	Rail to Rail Input/Output
Typical Voltage Gain	85 dB
Height	1.3mm
Length	3mm
Dimensions	3 x 1.75 x 1.3mm
Typical Input Voltage Noise Density	55nV/√Hz
Width	1.75mm

TSX561AIYLT STMicroelectronics, Op Amp, RRIO, 900kHz 10 kHz, 3 → 16 V, 5-Pin SOT-23

TSX56x, TSX56xA, Micro-Power, 900 kHz, 16 V CMOS Operational Amplifiers
