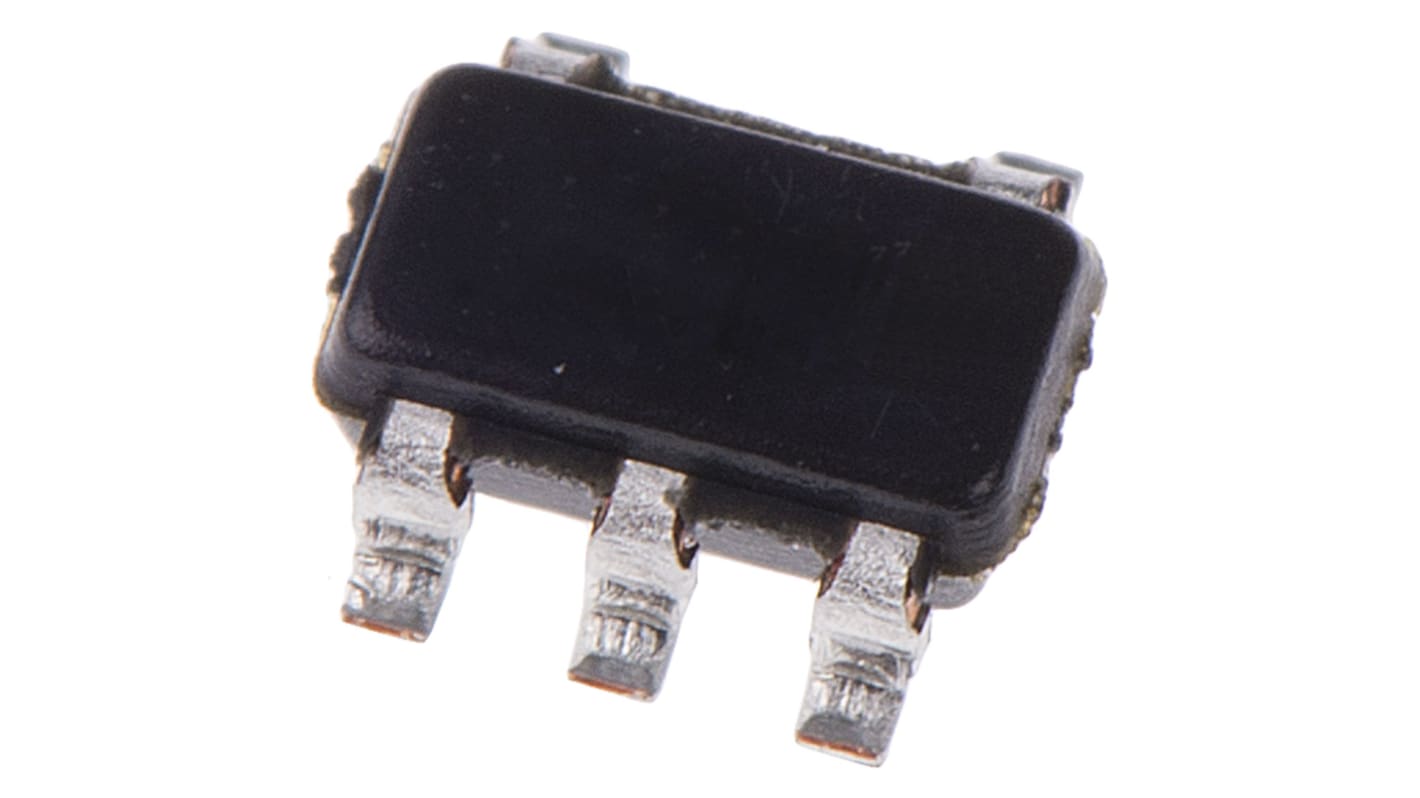

TSX561ILT STMicroelectronics, Low Power, Op Amp, RRIO, 900kHz, 3 → 16 V, 5-Pin SOT-23

RS Stock No.:: 168-7257
Mfr. Part No.:: TSX561ILT
Manufacturer:: STMicroelectronics

TSX561ILT STMicroelectronics, Low Power, Op Amp, RRIO, 900kHz, 3 → 16 V, 5-Pin SOT-23

Subtotal (1 reel of 3000 units)**

€1,908.00

(exc. VAT)

€2,346.00

(inc. VAT)

Temporarily out of stock - back order for despatch 29-06-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Reel**
3000 +	€0.636	€1,908.00

**price indicative

RS Stock No.:: 168-7257
Mfr. Part No.:: TSX561ILT
Manufacturer:: STMicroelectronics

TSX561, TSX562, TSX564, TSX561A, TSX562A, TSX564A, Micropower, Wide Bandwidth (900kHz), 16V CMOS Operational Amplifiers Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Amplifier Type	Low Power
Mounting Type	Surface Mount
Package Type	SOT-23
Power Supply Type	Single
Number of Channels per Chip	1
Pin Count	5
Typical Single Supply Voltage	3 → 16 V
Typical Gain Bandwidth Product	900kHz
Typical Slew Rate	1.1V/µs
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Typical Voltage Gain	85 dB
Rail to Rail	Rail to Rail Input/Output
Height	1.3mm
Length	3mm
Typical Input Voltage Noise Density	48nV/√Hz
Dimensions	3 x 1.75 x 1.3mm
Width	1.75mm

TSX561ILT STMicroelectronics, Low Power, Op Amp, RRIO, 900kHz, 3 → 16 V, 5-Pin SOT-23

TSX56x, TSX56xA, Micro-Power, 900 kHz, 16 V CMOS Operational Amplifiers
