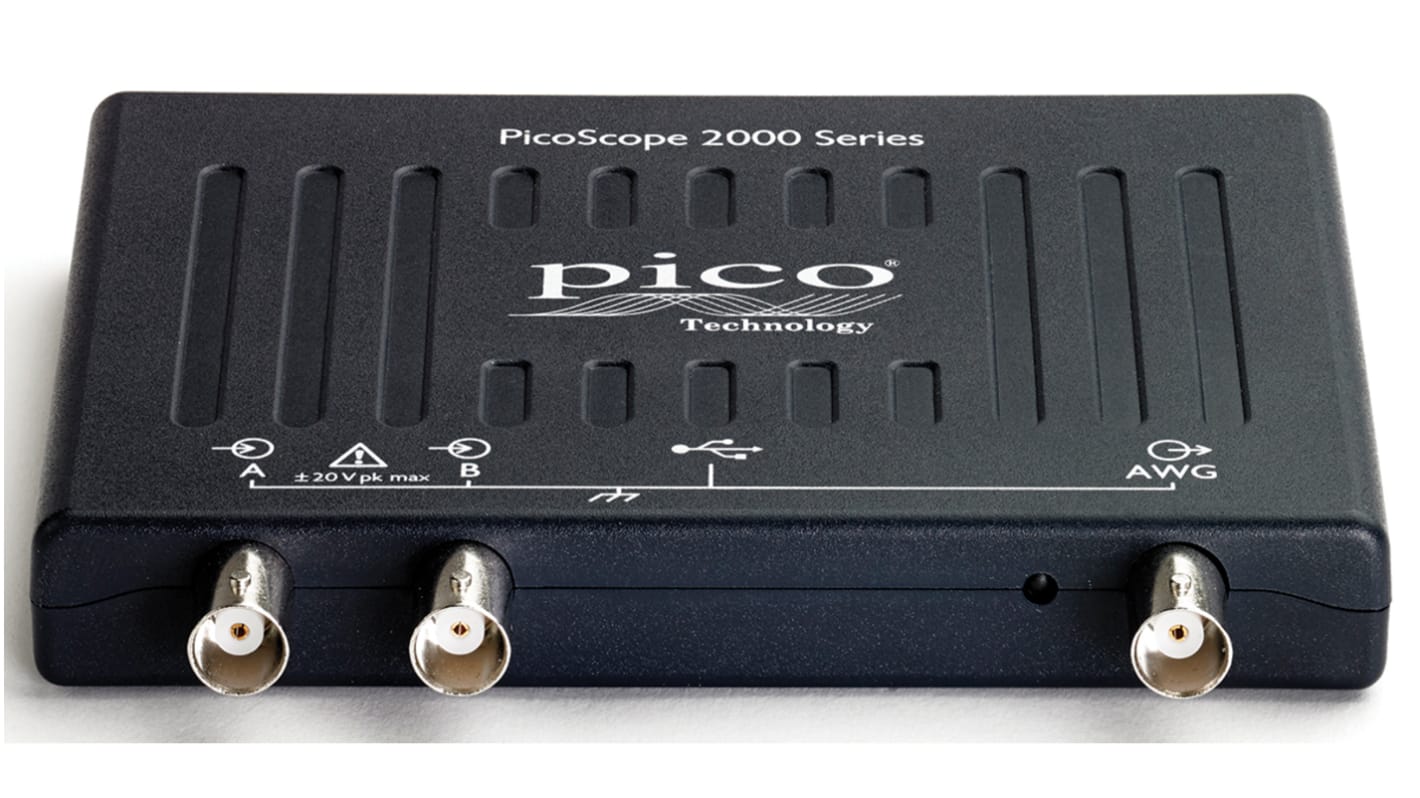

    Pico Technology 2206B PC Based Oscilloscope, 50MHz, 2 Analogue Channels With UKAS Calibration

    RS Stock No.:
    111-7052
    Mfr. Part No.:
    PicoScope 2206B
    Manufacturer:
    Pico Technology
    Pico Technology
    View all Oscilloscopes
    Temporarily out of stock - back order for despatch when stock is available
    Add to Basket
    units

    Added

    Price Each

    €515.00

    (exc. VAT)

    €633.45

    (inc. VAT)

    unitsPer unit
    1 +€515.00
    RS Stock No.:
    111-7052
    Mfr. Part No.:
    PicoScope 2206B
    Manufacturer:
    Pico Technology
    COO (Country of Origin):
    GB

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

    PicoScope 2206B 2-channel 50 MHz PC Oscilloscope


    PicoScope 2206B is a 50 MHz 2-channel oscilloscope which features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2206B has a maximum sampling rate of 500 MS/s, buffer memory of 32 Msamples and 1 MHz AWG signal generator. Fifteen automatic measurements are available in scope mode and another eleven in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2206B offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2206B takes advantage of the computing, display and communication power of an attached laptop or desktop PC – now incorporating pinch, zoom and drag capabilities.

    Features and Benefits


    Powerful, portable, compact
    2 analog channels
    50 MHz bandwidth
    Built-in arbitrary waveform generator
    500 MS/s, 32 MS buffer
    USB connected and powered
    Serial decoding/FFT advanced waveform analysis included
    Excellent signal integrity
    Dimensions 130 x 104 x 18.8 mm
    Weight <200 g

    Areas of Application


    Design
    Test
    Education
    Service
    Monitoring
    Fault-finding
    Repair

    Note

    Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

    Standards

    EN 61010-1:2010

    Supplied with

    USB 2.0 cable, MI007 passive probes (x2), quick start guide, software and reference CD


    Pico PC Based Instruments

    Specifications

    AttributeValue
    Digital/AnalogueAnalogue
    Bandwidth50MHz
    Number of Analogue Channels2
    Oscilloscope TypePC Based
    SeriesPicoScope 2000
    CalibratedUKAS
    InterfaceCAN, IIC, LIN, RS232, SPI, UART, USB
    Power SourceUSB
    Minimum Vertical Sensitivity4mV/div
    Maximum Vertical Sensitivity4V/div
    Minimum Time Base2ns/div
    Sample Rate Random1 G samples/s
    Vertical Resolution8 bit
    Dimensions130 x 104 x 18.8mm
    Weight<200g
    Record Length10000M points/ch
    Maximum Time Base5000s/div
    Rise Time7ns
