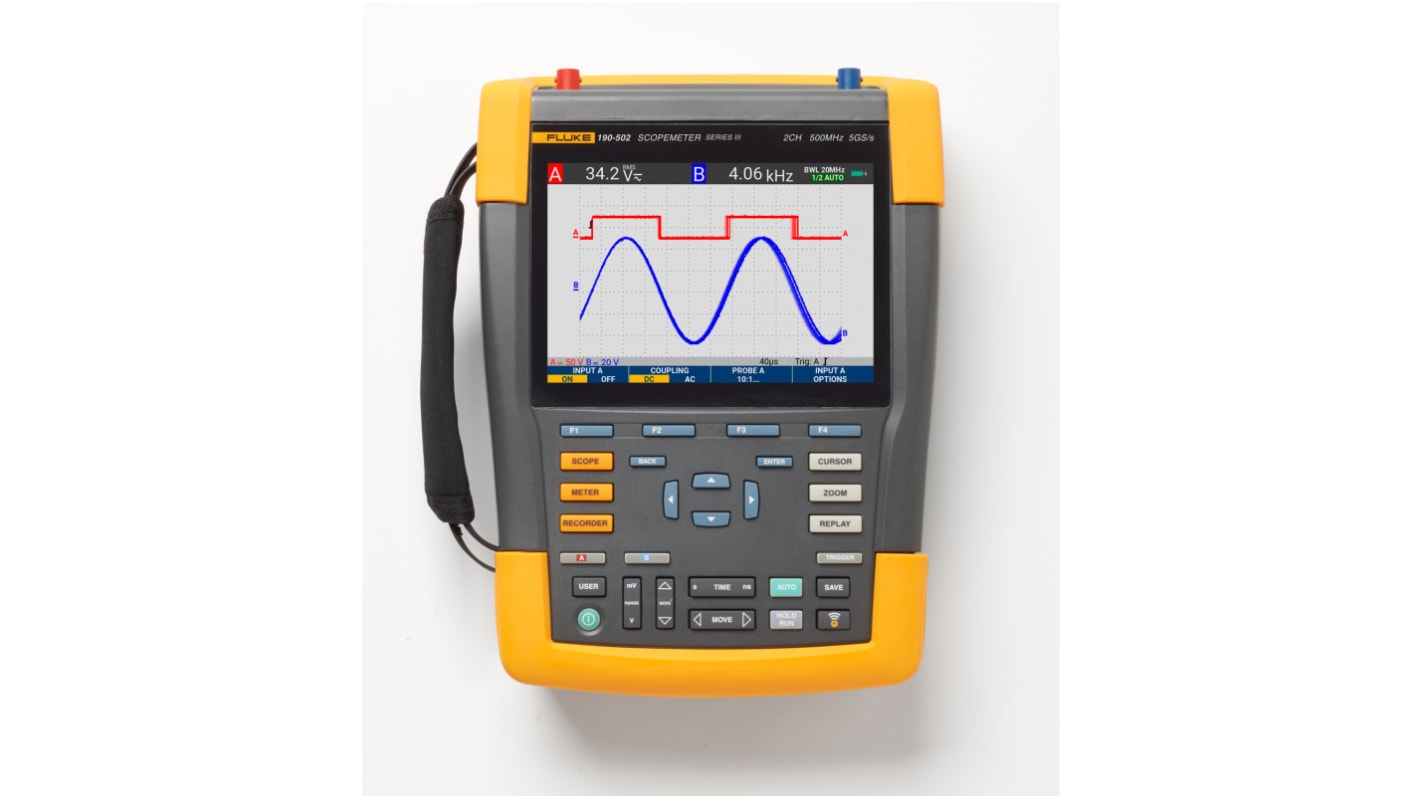

Fluke ScopeMeter III Series, Fluke 190-502, 500 MHz Portable Oscilloscope, 2 Channels, UKAS

RS Stock No.:: 230-5787
Mfr. Part No.:: FLUKE-190-502-III
Manufacturer:: Fluke

Fluke ScopeMeter III Series, Fluke 190-502, 500 MHz Portable Oscilloscope, 2 Channels, UKAS

Subtotal (1 unit)*

€7,430.34

(exc. VAT)

€9,139.32

(inc. VAT)

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	€7,430.34

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 230-5787
Mfr. Part No.:: FLUKE-190-502-III
Manufacturer:: Fluke

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Oscilloscope
	Bandwidth	500MHz
	Number of Channels	2
	Model Number	Fluke 190-502
	Oscilloscope Type	Portable
	Oscilloscope Form	Digital Storage
	Memory Depth	30kpts
	Interface Type	USB
	Sample Rate Random	5G samples/s
	Screen Size	6 in
	Series	ScopeMeter III
	Standards/Approvals	No
	Depth	192mm
	Width	70mm
	Height	192mm
	Calibrated	UKAS
	Vertical Resolution	8 bit
	Battery Type	Lithium-ion
	Plug Type	USB
	Maximum Time Base	4s/div
	Rise Time	0.7ns
	Maximum Vertical Sensitivity	10000V/div
	Minimum Time Base	1ns/div
	Minimum Vertical Sensitivity	2mV/div
	Safety Category Level	CAT III, CAT IV
	Power Source	Mains, Battery
	Battery Life	7h
	Display Type	Colour
	Safety Category Voltage	600V, 1V

	Select all
	Brand Fluke
	Product Type Oscilloscope
	Bandwidth 500MHz
	Number of Channels 2
	Model Number Fluke 190-502
	Oscilloscope Type Portable
	Oscilloscope Form Digital Storage
	Memory Depth 30kpts
	Interface Type USB
	Sample Rate Random 5G samples/s
	Screen Size 6 in
	Series ScopeMeter III
	Standards/Approvals No
	Depth 192mm
	Width 70mm
	Height 192mm
	Calibrated UKAS
	Vertical Resolution 8 bit
	Battery Type Lithium-ion
	Plug Type USB
	Maximum Time Base 4s/div
	Rise Time 0.7ns
	Maximum Vertical Sensitivity 10000V/div
	Minimum Time Base 1ns/div
	Minimum Vertical Sensitivity 2mV/div
	Safety Category Level CAT III, CAT IV
	Power Source Mains, Battery
	Battery Life 7h
	Display Type Colour
	Safety Category Voltage 600V, 1V

Datasheet - FLUKE-190-502-III

COO (Country of Origin):: RO

Fluke ScopeMeter III Series Oscilloscope, 500 MHz Bandwidth, 2 Analogue Channels - FLUKE-190-502-III

This portable digital oscilloscope provides exceptional performance with a bandwidth of 500MHz. Designed for ease of use in the field, it measures 265mm x 192mm x 70mm and weighs just 2.1kg, making it an Ideal choice for professionals across automation, electronics, and electrical industries. With a Record length of 10,000 points and a memory depth of 30 kpts, it ensures precise signal capture.

Features & Benefits

• 500MHz bandwidth enables detailed waveform analysis
• Two analogue channels facilitate simultaneous signal monitoring
• Battery-powered design ensures portable usage without mains dependency
• USB Interface allows easy data transfer to computers
• High vertical sensitivity range from 20mV to 10,000 V/div for versatile usage
• Digital storage capability enhances data retention and retrieval

Applications

• Utilised for in-field electrical troubleshooting tasks
• Ideal for diagnosing complex automotive electronic systems
• Used in the maintenance of industrial automation equipment
• Suitable for educational purposes in electronics laboratories

What is the maximum sample rate for this device?

The maximum sample rate is 5 Gsps, allowing for high-resolution signal capture to accurately analyse fast-changing waveforms.

How does the memory depth impact performance?

With a memory depth of 30 kpts, the oscilloscope can store longer signal sequences, essential for troubleshooting intermittent or complex signals effectively.

What type of battery is used, and how does it affect portability?

It uses a rechargeable Li-ion battery, which provides extended use without the need for frequent recharges, supporting its portable design for fieldwork.
