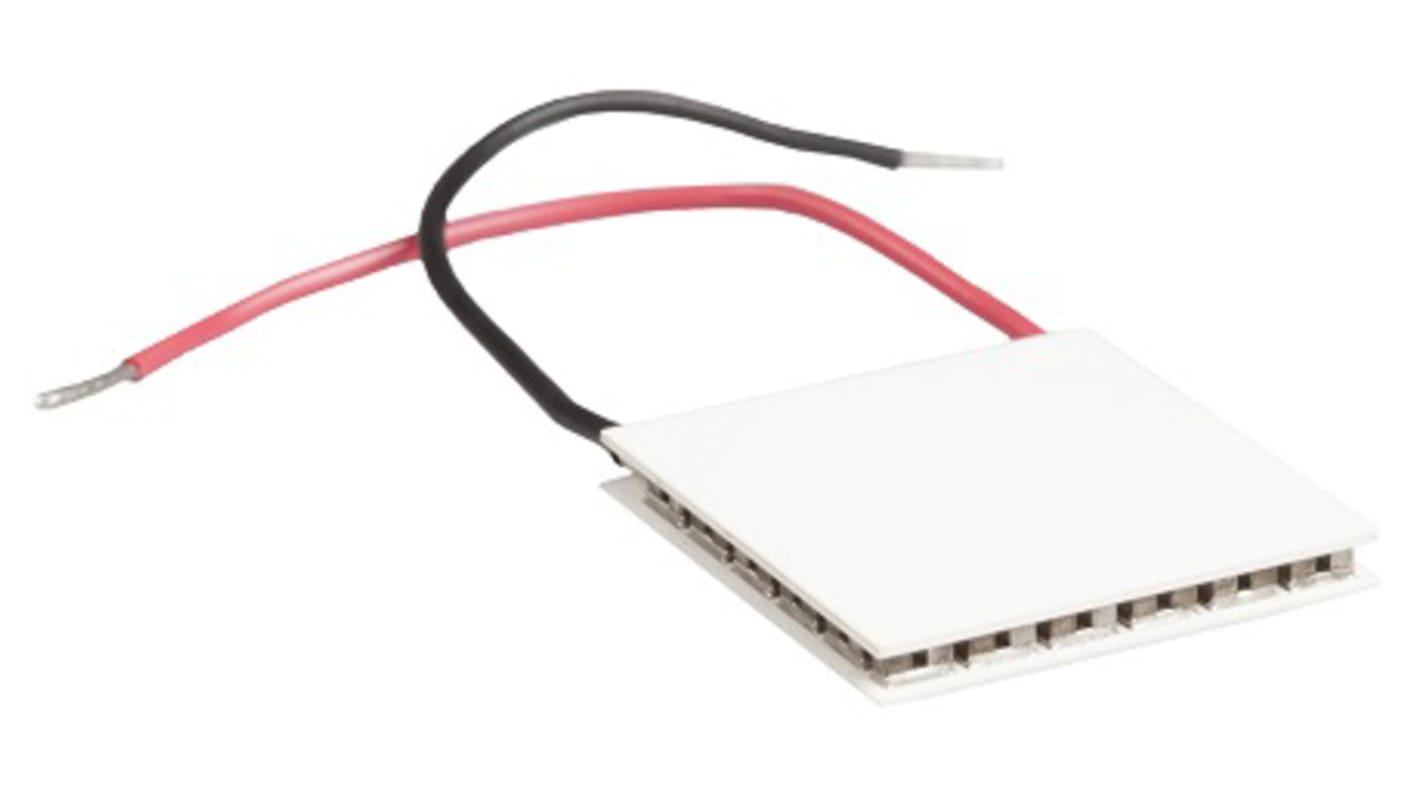

Adaptive Peltier Module, 18 W, 4 A, 7.9V, 10 mm x 3 mm x 3.6 mm
- RS Stock No.:
- 174-3129
- Mfr. Part No.:
- ET-063-10-13-H1
- Manufacturer:
- Adaptive
Bulk discount available
Subtotal (1 unit)*
€16.78
(exc. VAT)
€20.64
(inc. VAT)
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €16.78 |
| 5 - 9 | €16.00 |
| 10 - 24 | €15.43 |
| 25 - 99 | €14.84 |
| 100 + | €14.33 |
*price indicative
- RS Stock No.:
- 174-3129
- Mfr. Part No.:
- ET-063-10-13-H1
- Manufacturer:
- Adaptive
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adaptive | |
| Maximum Cooling Capacity | 18W | |
| Product Type | Peltier Module | |
| Maximum Temperature Difference | 73°C | |
| Thickness | 3.6mm | |
| Maximum Current | 4A | |
| Maximum Voltage | 7.9V | |
| Lead Wire Type | Unstripped | |
| Length | 10mm | |
| Standards/Approvals | RoHS | |
| Width | 3 mm | |
| Series | ET-063-10-13-H1 | |
| Select all | ||
|---|---|---|
Brand Adaptive | ||
Maximum Cooling Capacity 18W | ||
Product Type Peltier Module | ||
Maximum Temperature Difference 73°C | ||
Thickness 3.6mm | ||
Maximum Current 4A | ||
Maximum Voltage 7.9V | ||
Lead Wire Type Unstripped | ||
Length 10mm | ||
Standards/Approvals RoHS | ||
Width 3 mm | ||
Series ET-063-10-13-H1 | ||
- COO (Country of Origin):
- CN
The Adaptive interconnect double stage peltier cooler module has active area of 30 x 15mm.
Max hot side temperature: 90°C for best long term performance
Max mounting pressure: 1.5MPa
