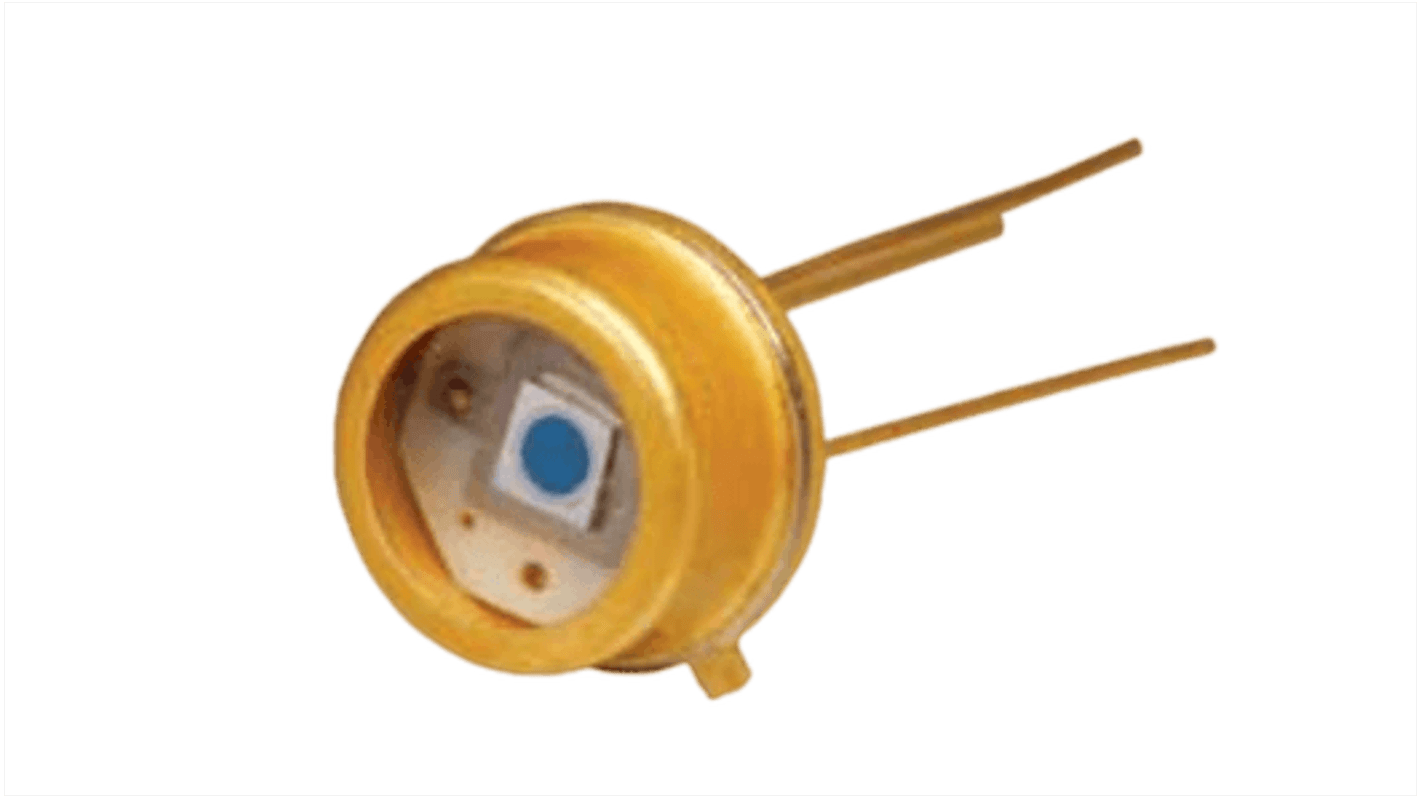

OSI Optoelectronics FCI-InGaAs-1500 Infrared Photodiode, 65 °, Through Hole
- RS Stock No.:
- 183-7117
- Mfr. Part No.:
- FCI-InGaAs-1500
- Manufacturer:
- OSI Optoelectronics
Bulk discount available
Subtotal (1 tray of 10 units)*
€1,530.02
(exc. VAT)
€1,881.92
(inc. VAT)
In Stock
- 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 10 - 10 | €153.002 | €1,530.02 |
| 20 + | €147.341 | €1,473.41 |
*price indicative
- RS Stock No.:
- 183-7117
- Mfr. Part No.:
- FCI-InGaAs-1500
- Manufacturer:
- OSI Optoelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OSI Optoelectronics | |
| Spectrums Detected | Infrared | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 1550nm | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 1100nm | |
| Maximum Wavelength Detected | 1620nm | |
| Typical Fall Time | 0.6ns | |
| Amplified | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 8mm | |
| Height | 3.81mm | |
| Width | 5 mm | |
| Diameter | 5.4 mm | |
| Angle of Half Sensitivity | 65 ° | |
| Series | FCI-InGaAS | |
| Typical Rise Time | 0.6ns | |
| Breakdown Voltage | 30V | |
| Polarity | Reverse | |
| Automotive Standard | No | |
| Dark Current | 0.2nA | |
| Select all | ||
|---|---|---|
Brand OSI Optoelectronics | ||
Spectrums Detected Infrared | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 1550nm | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 1100nm | ||
Maximum Wavelength Detected 1620nm | ||
Typical Fall Time 0.6ns | ||
Amplified No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 8mm | ||
Height 3.81mm | ||
Width 5 mm | ||
Diameter 5.4 mm | ||
Angle of Half Sensitivity 65 ° | ||
Series FCI-InGaAS | ||
Typical Rise Time 0.6ns | ||
Breakdown Voltage 30V | ||
Polarity Reverse | ||
Automotive Standard No | ||
Dark Current 0.2nA | ||
- COO (Country of Origin):
- US
FCI-InGaAs-XXX-X series with Active area sizes of 1mm, 1.5mm and 3mm, are part of OSI Optoelectronics' large Active area IR sensitive detectors which exhibit excellent responsivity from 1100nm to 1620nm, allowing high sensitivity to weak signals.These large Active area devices are Ideal for use in infrared instrumentation and monitoring applications. The photodiode chip are isolated in TO-46 or TO-5 packages with a broadband double sided AR coated flat window. FCI-InGaAs-1500-X and FCI-InGaAs-3000-X come with different shunt resistance values of 5, 10, 20, 30 and 40 MΩ.
High Responsivity
Large Active Area Diameter
Low Noise
Spectral Range 900nm to 1700nm
APPLICATIONS
Optical Instrumentation
Power Measurement
IR Sensing
Medical Devices
