PUI Audio Lead Wire 180 μm Piezo Buzzer Component 100 mm 30V Max
- RS Stock No.:
- 276-801
- Mfr. Part No.:
- AB1541B-LW100-R
- Manufacturer:
- PUI Audio
Get a bulk buy discount
Add 10 more to save 8%
View bulk pricing optionsSubtotal (1 unit)*
€0.90
(exc. VAT)
€1.11
(inc. VAT)
Temporarily out of stock
- 94 unit(s) shipping from 14 January 2027
- Plus 100 unit(s) shipping from 31 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 9 | €0.90 | - |
| 10 - 99 | €0.82 | 8% |
| 100 - 499 | €0.74 | 17% |
| 500 - 999 | €0.70 | 22% |
| 1000 + | €0.56 | 37% |
*price indicative
- RS Stock No.:
- 276-801
- Mfr. Part No.:
- AB1541B-LW100-R
- Manufacturer:
- PUI Audio
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PUI Audio | |
| Mount Type | Lead Wire | |
| Product Type | Piezo Buzzer Component | |
| Maximum Supply Voltage | 30V | |
| Diameter | 15mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 100mm | |
| Standards/Approvals | RoHS 2011, EU | |
| Height | 180μm | |
| Depth | 180μm | |
| Termination Style | Lead Wire | |
| Maximum Frequency | 1000Hz | |
| Select all | ||
|---|---|---|
Brand PUI Audio | ||
Mount Type Lead Wire | ||
Product Type Piezo Buzzer Component | ||
Maximum Supply Voltage 30V | ||
Diameter 15mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Length 100mm | ||
Standards/Approvals RoHS 2011, EU | ||
Height 180μm | ||
Depth 180μm | ||
Termination Style Lead Wire | ||
Maximum Frequency 1000Hz | ||
- COO (Country of Origin):
- CN

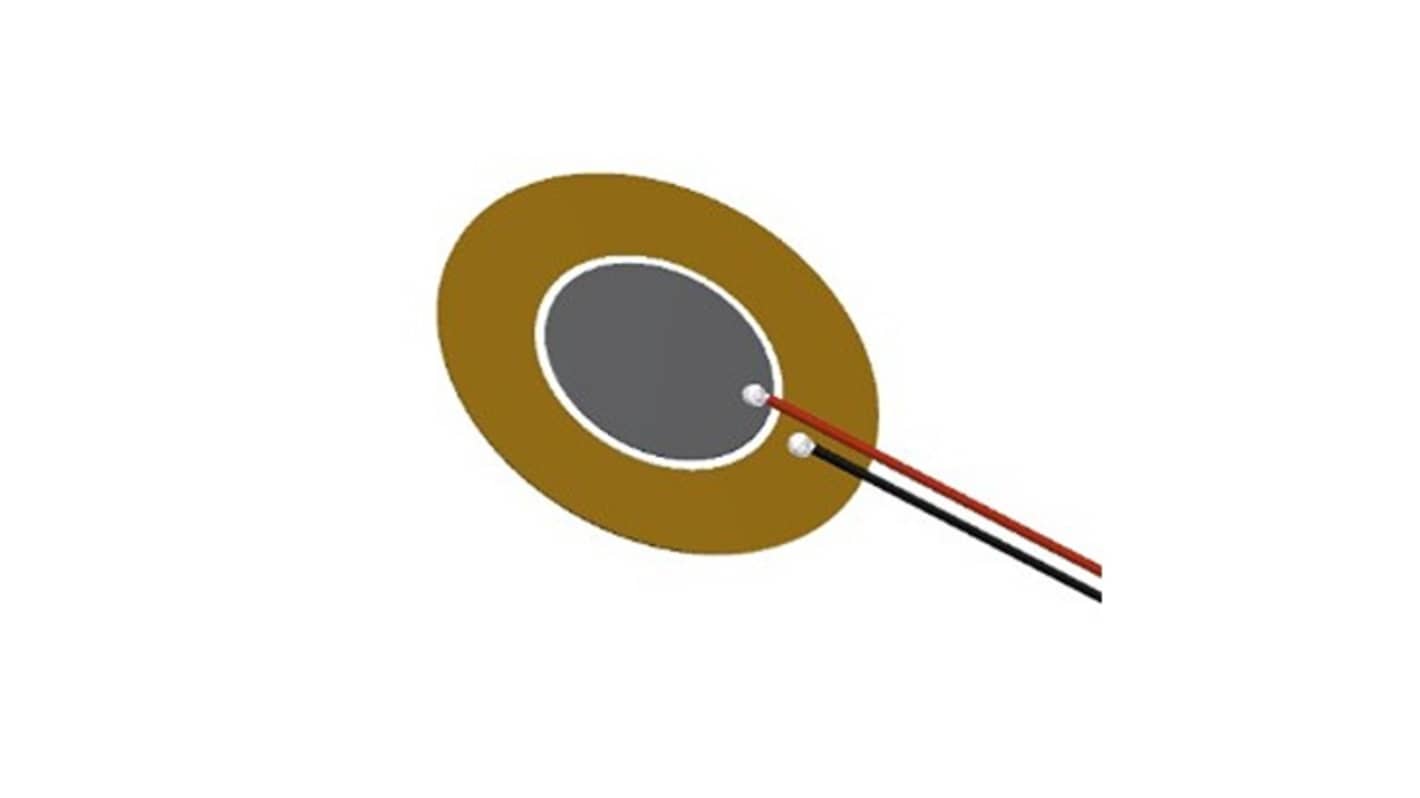

The PUI Audio Piezo Bender features a compact design with a height of 0.18 mm, and both a width and length of 15 mm, making it ideal for various applications. It operates effectively within a temperature range of 20° to 60°C and has a round shape for versatility in installation. Made from brass, it offers durability, while its resonant frequency is 4.1 kHz, ensuring reliable performance in electronic systems.
Capacitance is 8000 pF
Maximum input voltage is 30 Vp p
Impedance is 1000 Ohms
