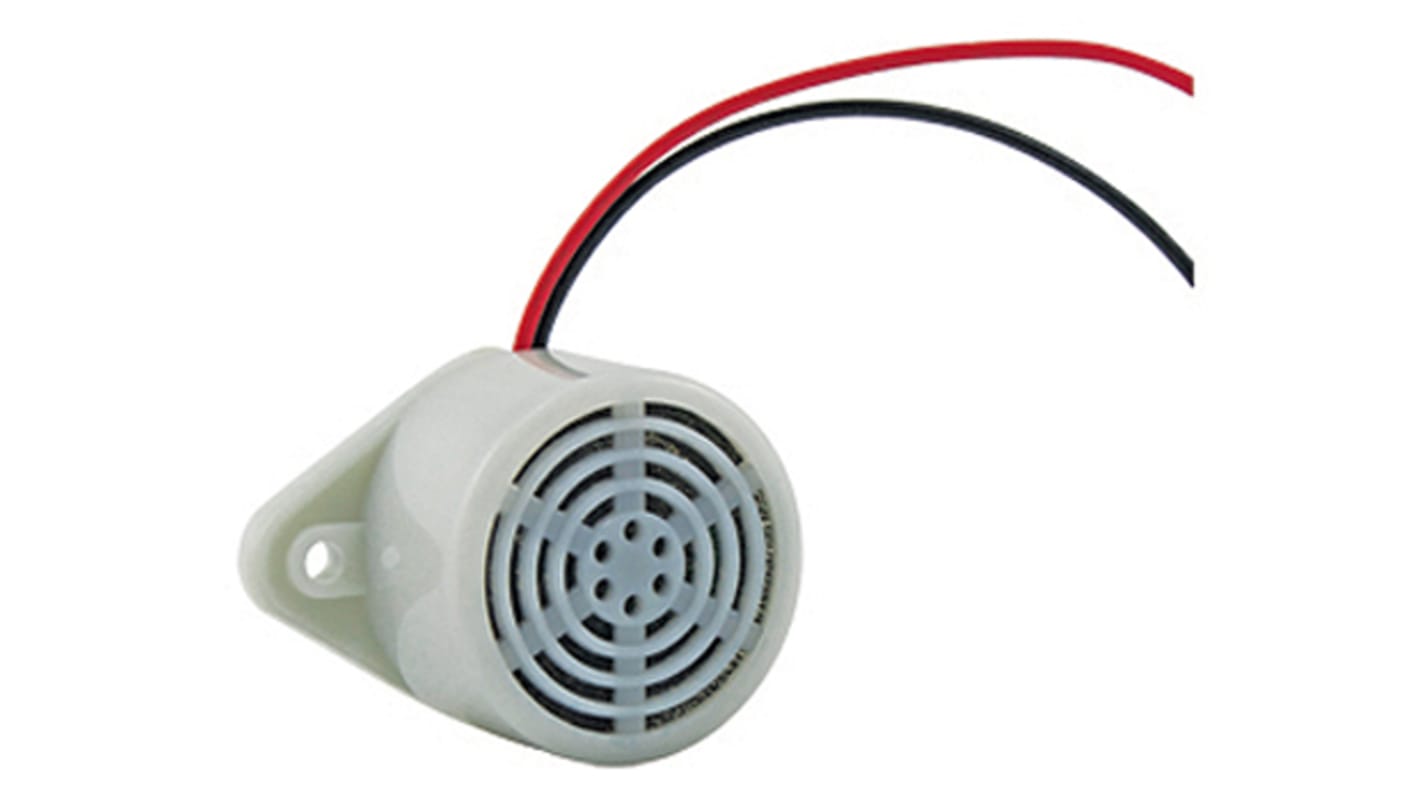

RS PRO 95dB Base Mount, Panel Mount Continuous Internal Magnetic Buzzer Component, 26.4 x 17.6mm, 4V dc Min, 6V dc Max
- RS Stock No.:
- 111-8177
- Distrelec Article No.:
- 304-02-584
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
€11.07
(exc. VAT)
€13.62
(inc. VAT)
In Stock
- 92 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 19 August 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | €11.07 |
5 - 9 | €10.61 |
10 - 24 | €10.07 |
25 - 49 | €9.53 |
50 + | €8.74 |
*price indicative
- RS Stock No.:
- 111-8177
- Distrelec Article No.:
- 304-02-584
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Mounting Type | Base Mount, Panel Mount | |
Minimum Supply Voltage | 4V dc | |
Maximum Supply Voltage | 6V dc | |
Sound Level | 95dB | |
Drive Type | Internal | |
Tone Type | Continuous | |
Diameter | 26.4mm | |
Height | 17.6mm | |
Dimensions | 26.4 x 17.6mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +70°C | |
Maximum Frequency | 0.5kHz | |
Supply Current | 33mA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Mounting Type Base Mount, Panel Mount | ||
Minimum Supply Voltage 4V dc | ||
Maximum Supply Voltage 6V dc | ||
Sound Level 95dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 26.4mm | ||
Height 17.6mm | ||
Dimensions 26.4 x 17.6mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 0.5kHz | ||
Supply Current 33mA | ||
