WAGO Analogue Module 750 Thermocouple, Voltage 24V

RS Stock No.:: 240-7932
Mfr. Part No.:: 750-458
Manufacturer:: WAGO

WAGO Analogue Module 750 Thermocouple, Voltage 24V

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

WAGO Analogue Input Module 750 Analogue 24V dc

RS Stock No.: 279-2967

Each

€453.72

(exc. VAT)

€558.08

(inc. VAT)

RS Stock No.:: 240-7932
Mfr. Part No.:: 750-458
Manufacturer:: WAGO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	WAGO
	Product Type	Analogue Module
	Input Type	Thermocouple, Voltage
	Mount Type	DIN Rail
	Maximum Supply Voltage	24V
	Number of I/Os	8
	Maximum Operating Temperature	55°C
	Width	0.472in
	Series	750
	Standards/Approvals	EAC, UL
	Depth	69mm
	Length	3.937in

	Select all
	Brand WAGO
	Product Type Analogue Module
	Input Type Thermocouple, Voltage
	Mount Type DIN Rail
	Maximum Supply Voltage 24V
	Number of I/Os 8
	Maximum Operating Temperature 55°C
	Width 0.472in
	Series 750
	Standards/Approvals EAC, UL
	Depth 69mm
	Length 3.937in

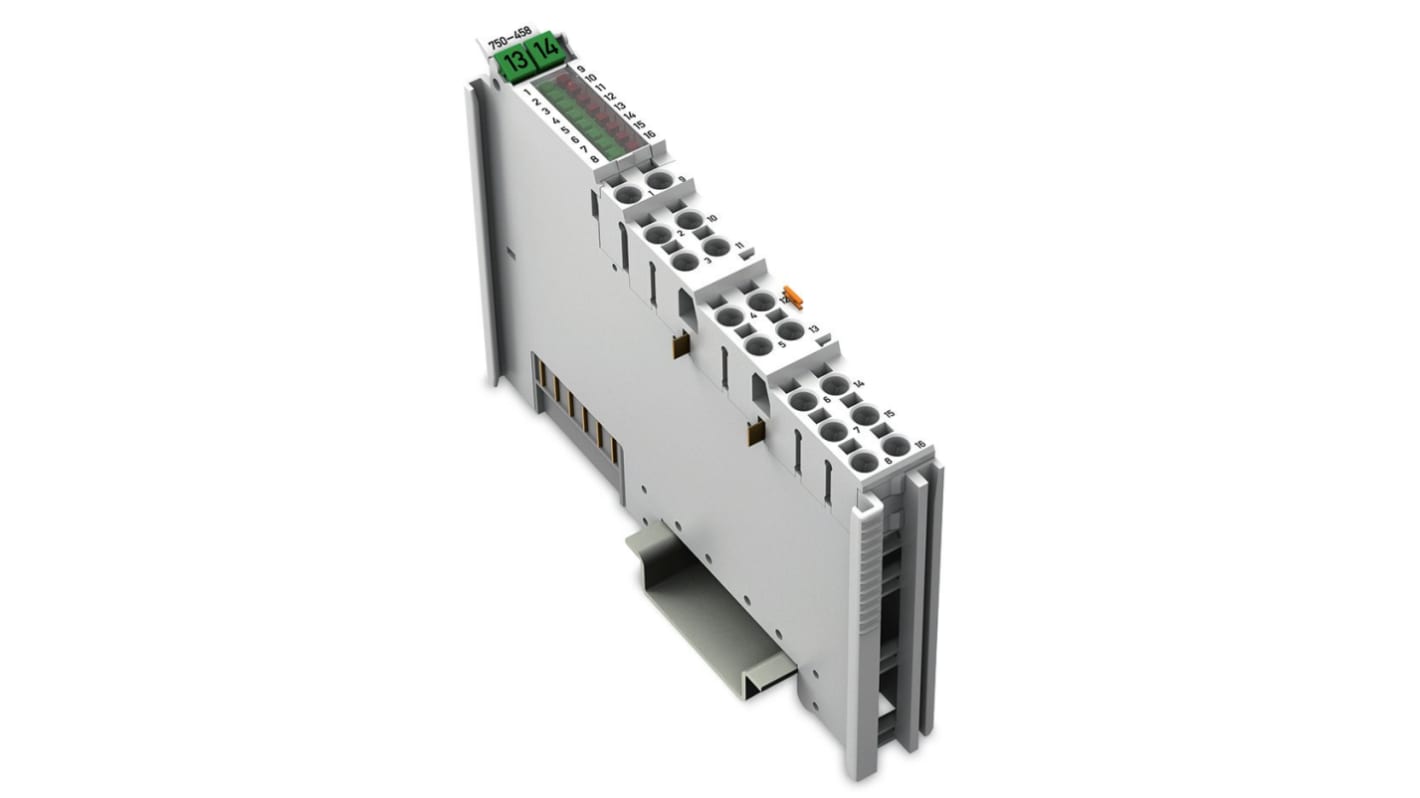

The WAGO 8 channel analogue input module directly connects to thermocouples. The module automatically linearizes the entire temperature range. Cold junction compensation mitigates the clamping unit offset voltage over the 0–55°C operating range. The modul

IP20 rated

DIN-35 rail mounting

A line break is indicated by a red LED

Unused channels can be deactivated

Features multiple setting options and high accuracy
