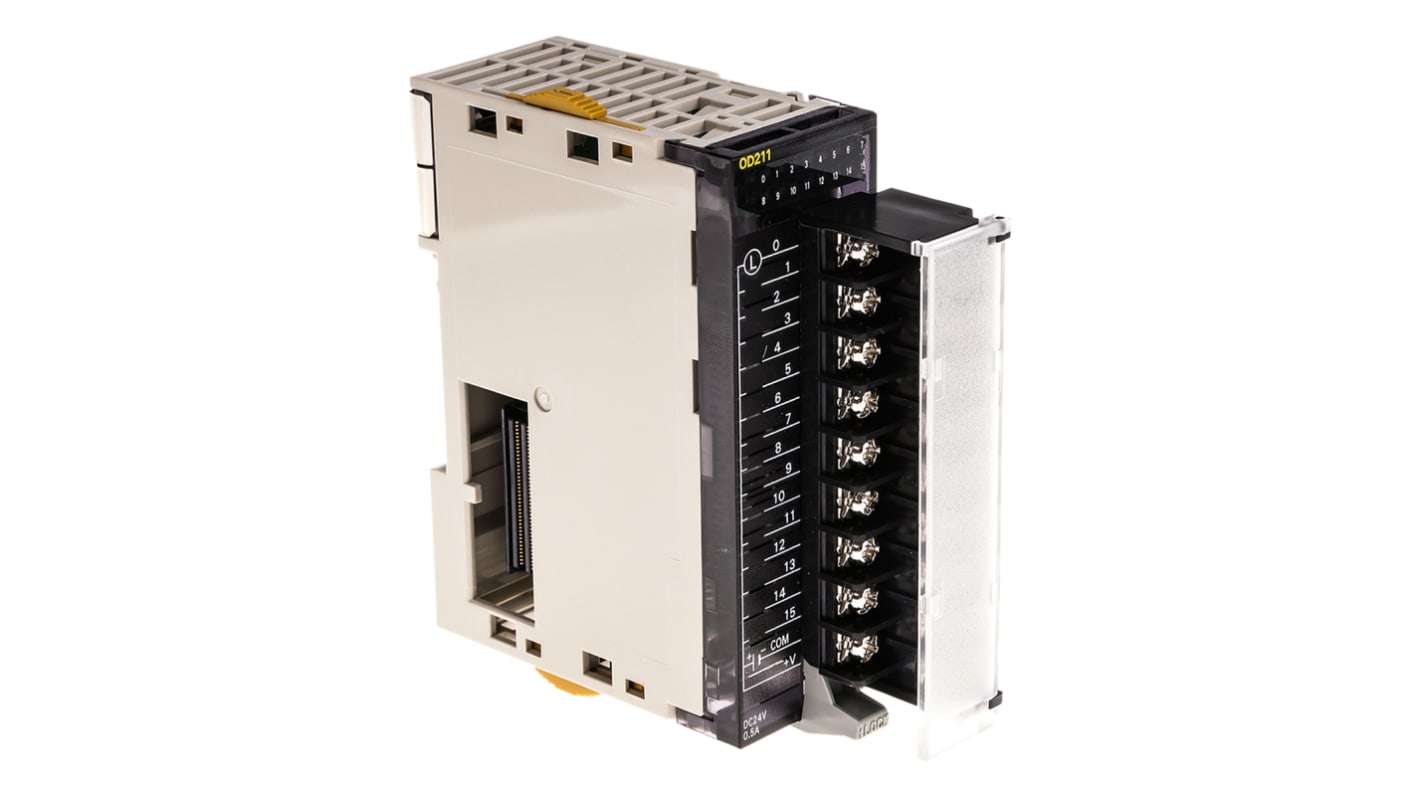

Omron SYSMAC CJ Series Series PLC I/O Module for Use with SYSMAC CJ Series, Digital, Transistor

The PNP transistor output module (Stock No. 512-5902) features short circuit protection and an output wire break sensing facility
Commons: 1 (8 for stock no. 510-1489)
Outputs: 16 (8 for stock no. 510-1489)
Current Consumption: 90mA @ 5Vdc (48mA @ 24Vdc) for stock no. 510-1489; 110mA @ 5Vdc (96mA @ 24Vdc) for 512-5895; 100mA @ 5Vdc only, for stock nos. 510-1495 and 512-5902

This PLC I/O module is an essential component for the SYSMAC CJ Series, facilitating industrial automation processes. It acts as a link between the programmable logic controller and field devices, allowing for effective control and monitoring of operations. With 16 digital outputs, this module improves operational efficiency and integrates smoothly into existing systems.

• Handles an output current of up to 500mA per output
• Compact design allows for straightforward integration into systems
• Durable construction for stability in industrial environments

• Utilised in automation setups requiring multiple digital outputs
• Ideal for robotics for actuator control
• Important for process control in assembly lines

It offers digital and transistor outputs, allowing for flexible control options across a range of applications.

The module can manage 16 outputs simultaneously, making it suitable for comprehensive control tasks.

The module can handle an output current of 500mA, accommodating various devices.

Yes, it can be integrated easily into existing systems, enhancing their capabilities and functionality.

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)
