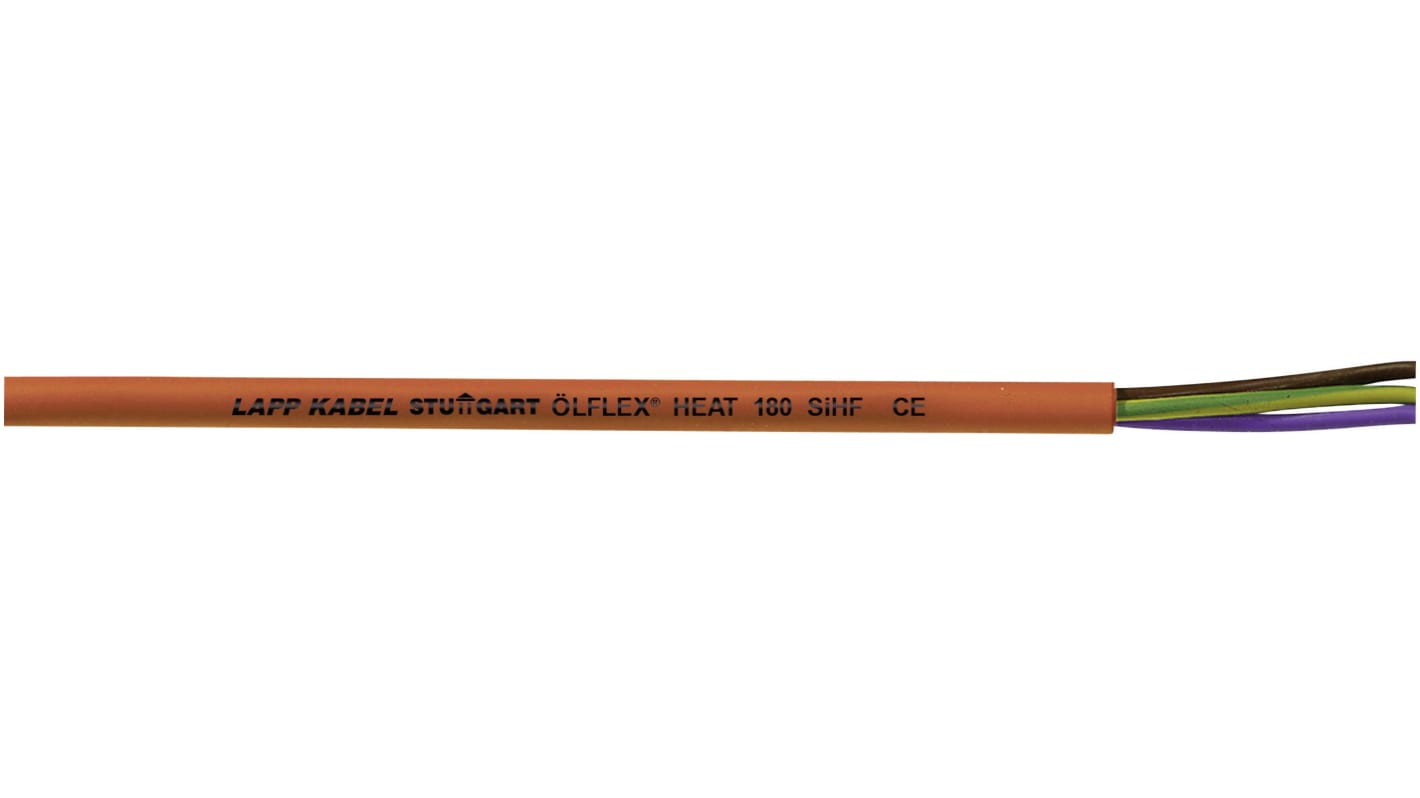

Lapp 3 Core Power Cable, 2.5 mm², 50m, Brown/Red Silicone Sheath, Flexible Multicore, 500 V

From Lapp, the Olflex Heat 180 SiHF is a power and control cable designed for applications where a wide operating temperature is required. This cable features a silicon based core insulation and sheath, and can operate in areas with high ambient temperatures where conventional cables will embrittle after a short time.

This high temperature cable is also halogen-free, and emits no corrosive gases while burning, meaning it is ideal for conditions where the protection of human life and property is paramount.

The Olflex silicon power cable is a versatile solution to cable management in challenging environments.

Features and Benefits

• Flame retardant to IEC 60332-1-2
• Halogen free to IEC 60754-1
• Reduced smoke density
• Operating temperature range of -50 °C to +180 °C
• Resistant against a multitude of oils, alcohols, vegetable and animal fats and chemical media

Applications

Though the Olflex Heat 180 SiHF cable is suitable for multiple purposes, its increased temperature resistance means it is ideal for applications such as;

• Steel Works
• Industrial Furnaces
• Bakery Equipment
• Solarium Construction
• Lighting

Accessories

Lapp Olflex power and control cables should be used with accessories that match their capabilities, and as such Lapp provide a range of reliable and easy-to-install cable glands, such as the Skintop SHV-M FKM Series.

• 664-4410 is an IP68 M12 Skintop Cable Gland Kit for 3.8 to 4.8 mm Cable Diameters
• 664-4417 is an IP68 M16 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4426 is an IP68 M20 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4429 is an IP68 M20 Skintop Cable Gland Kit for 6.8 to 8.8 mm Cable Diameters
• 664-4423 is an IP68 M20 Skintop Cable Gland Kit for 8.5 to 10.8 mm Cable Diameters

Bridge the gap between your equipment and its energy source with this power cable from LAPP. It comes in a length of 50m, so there's an abundant supply to cut and use for large-scale projects. The tinned copper contacts offer high conductivity and resistance to corrosion, giving you a connection you can count on. Thanks to its 500V voltage rating, it's the right choice for general-purpose, medium-duty applications.

• Minimum bend radius of four times its outer diameter for flexible installation around corners
• Silicone outer jacket provides resistance to impact and wear for use in harsh environments

• Industrial lighting
• Steel mills
• Assembly lines

This unit is built to handle extreme conditions, thanks to its wide operating temperature range between -25°C and +180°C.
