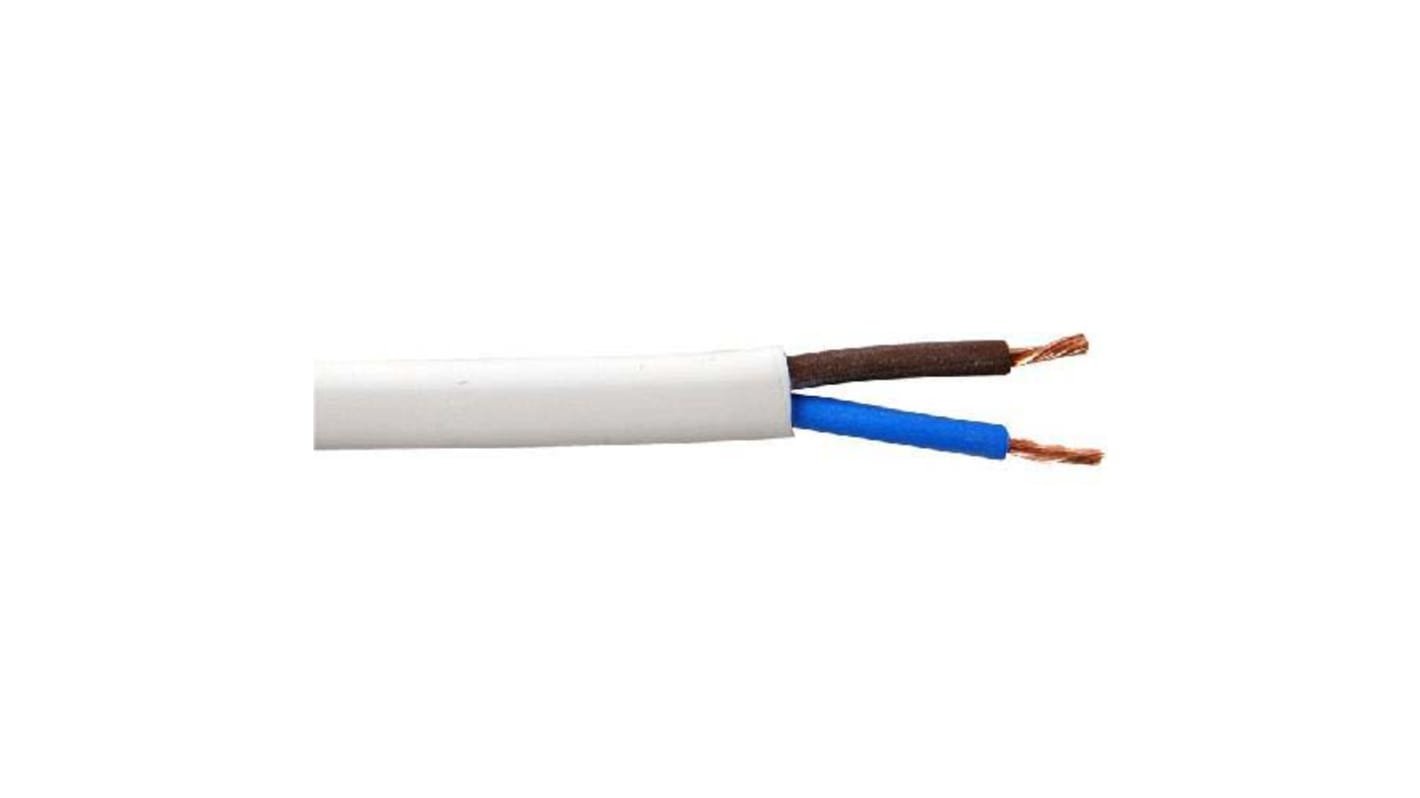

RS PRO Fire Performance 1 mm² 2 Core Power Cable, H05Z1Z1-F, White, 100m

View all Power Cable

Subtotal (1 reel of 100 metres)*

€130.83

(exc. VAT)

€160.92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +€130.83€1.308

*price indicative

RS Stock No.:
836-0717
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

1 mm²

Number of Cores

2

Sheath Colour

White

Length

100m

Cable Type

Fire Performance

CPR Certification

Eca

Outer Diameter

5.9 → 7.5mm

Voltage Rating

500 V

European Harmonised Code

H05Z1Z1-F

Size of Strands

0.2 mm

Insulation Material

Thermoplastic

Maximum Operating Temperature

+70°C

Conductor Material

Copper

Standards Met

BS EN 50525

Fire Behaviour

Flame Retardant

Minimum Operating Temperature

-5°C

Number of Strands

29

American Wire Gauge

17 AWG

Conductor Resistance

19.5 Ω/km

COO (Country of Origin):
TR

3182B / H05Z1Z1-F LSZH 0.75 Cable


3182B is indoor general wiring cable. These low smoke zero halogen (LSZH) cables can be used in public areas where fire, smoke emission and toxic fumes pose potential threats to life and equipment.

Features and Benefits


• Thermoplastic insulation and sheath;• LSZH (Low smoke zero halogen);• Flame retardant;• Operating temperature range: -5°C to +70°C

Product Application Information


Pendant lighting drops, supply leads in hospitals or airport projects are ideal areas where this type of cable can be used.

Standards

EN 50363-8, EN 50363-7, IEC 60332-1, EN 50525-3-11, Class 5 IEC 60228, RoHS
