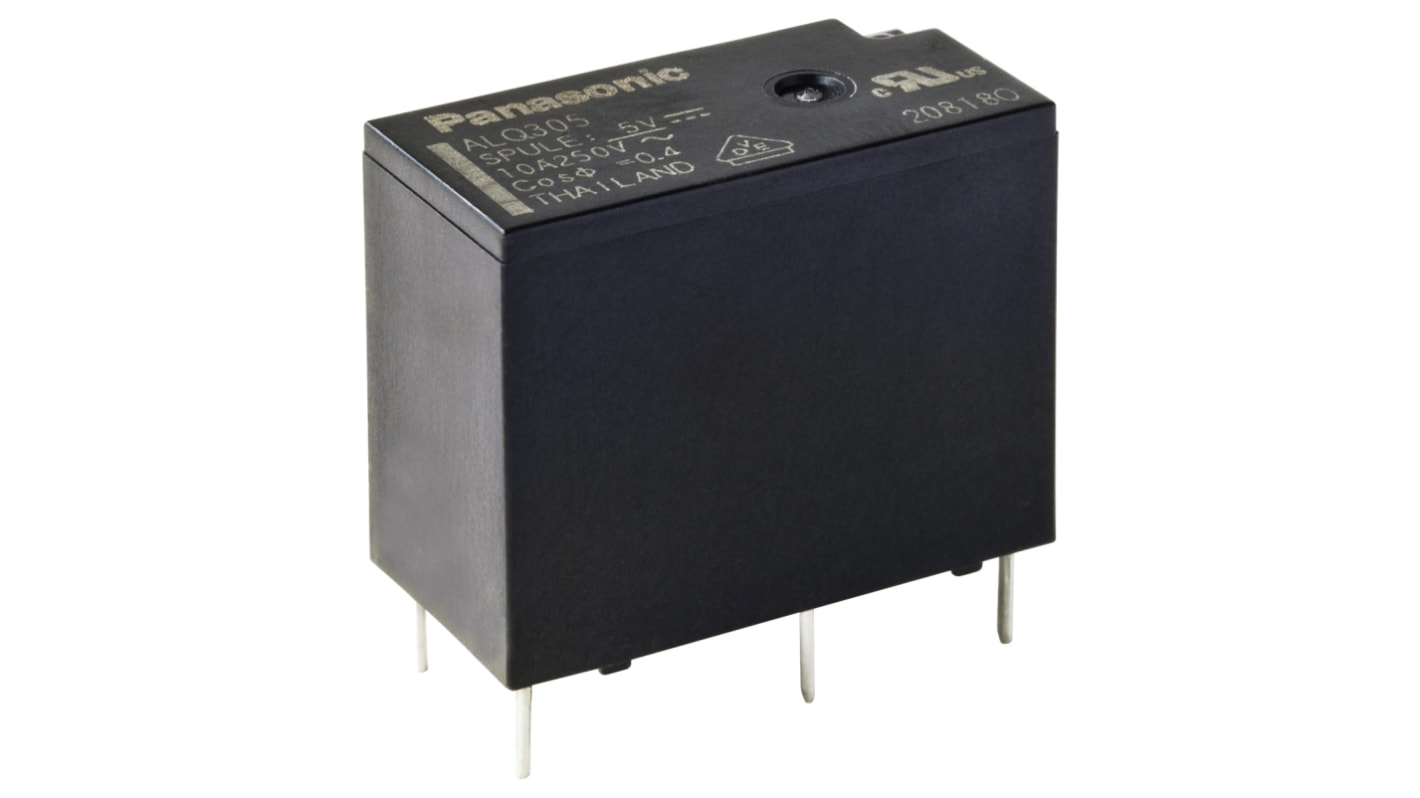

    Panasonic PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

    Subtotal (1 box of 100 units)*

    €165.80

    (exc. VAT)

    €203.90

    (inc. VAT)

    Add to Basket
    Select or type quantity
    Temporarily out of stock
    • 100 unit(s) shipping from 01 November 2025
    Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
    Units
    Per unit
    Per Box*
    100 +€1.658€165.80

    *price indicative

    RS Stock No.:
    134-7865
    Mfr. Part No.:
    ALQ1F12
    Manufacturer:
    Panasonic
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Panasonic

    Coil Voltage

    12V dc

    Contact Configuration

    SPDT

    Mounting Type

    PCB Mount

    Switching Current

    10A

    Number of Poles

    1

    Latching

    No

    Terminal Type

    PCB Pin

    Maximum Switching Voltage AC

    250V

    Maximum Switching Voltage DC

    30V dc

    Length

    20mm

    Coil Resistance

    360Ω

    Coil Power

    400mW

    Isolation Coil To Contact

    4kVrms

    Maximum Operating Temperature

    +85°C

    Height

    15.6mm

    Standards Met

    CQC, CSA, cUL, cULus, UL, VDE

    Life

    Minimum of 10000000 (Mechanical) operations

    Minimum Operating Temperature

    -40°C

    Contact Material

    Silver Alloy

    Depth

    10mm

    Maximum Switching Power AC

    1250 (NO) VA, 500 (NC) VA

    Maximum Switching Power DC

    150 (NO) W, 30 (NC) W

    Dimensions

    20 x 10 x 15.6mm

    Application

    Air Conditioners, Cooking Ovens, Home Appliances, Industrial Equipment, Motor Controls, Power Supply, Refrigerators, Robots, Washing Machine
