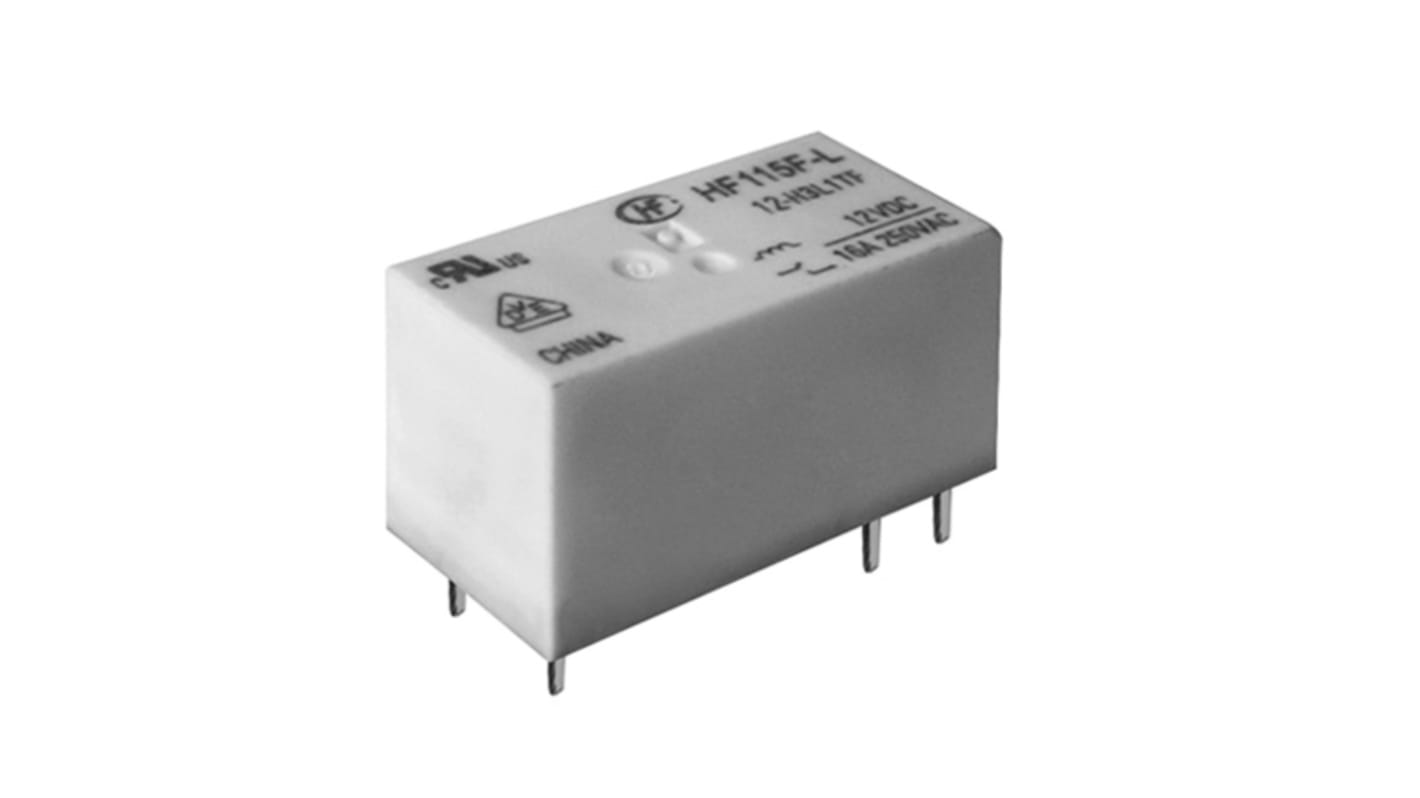

Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 20A Switching Current, SPST
- RS Stock No.:
- 176-2937
- Mfr. Part No.:
- HF115F-L/12-H3L2TF(610)
- Manufacturer:
- Hongfa Europe GMBH
121 In stock for delivery within 2 working days
Price Each
€2.65
(exc. VAT)
€3.26
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | €2.65 |
- RS Stock No.:
- 176-2937
- Mfr. Part No.:
- HF115F-L/12-H3L2TF(610)
- Manufacturer:
- Hongfa Europe GMBH
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Hongfa SPNO Latching Relay
The Hongfa SPNO 1-pole latching PCB mount relay is actuated with the help of a 12VDC coil and up to 20A DC/AC current through the coil for the relay to switch position. It is a miniature type high power relay. It can be used with a single or double coil winding configuration. This relay has silver alloy contact for high electrical endurance.
Features and Benefits
• Environmental friendly product
• Isolation voltage between the coil and contacts is 5KV
• High surge withstand voltage up to 10KVAC
• Service temperature range between -40°C and 85°C
• High mechanical endurance and life expectancy of 2M cycles
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
• Isolation voltage between the coil and contacts is 5KV
• High surge withstand voltage up to 10KVAC
• Service temperature range between -40°C and 85°C
• High mechanical endurance and life expectancy of 2M cycles
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
Applications
• Used as a control device
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 20A |
| Number of Poles | 1 |
| Latching | Yes |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 440V |
| Maximum Switching Voltage DC | 300V dc |
| Maximum Switching Current AC | 20 A |
| Maximum Switching Current DC | 20 A |
| Length | 29mm |
| Coil Resistance | 360Ω |
| Coil Power | 600mW |
| Depth | 12.7mm |
| Contact Material | Silver Alloy |
| Standards Met | CQC File No:CQC17002168381, cULus File No:E134517, VDE File No:116934 |
| Minimum Operating Temperature | -40°C |
| Series | HF115F-L |
| Height | 15.7mm |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 5kV |
| Life | 2 x 10^6 cycles |
| Maximum Switching Power AC | 4 kVA |
| Dimensions | 29 x 12.7 x 15.7mm |
