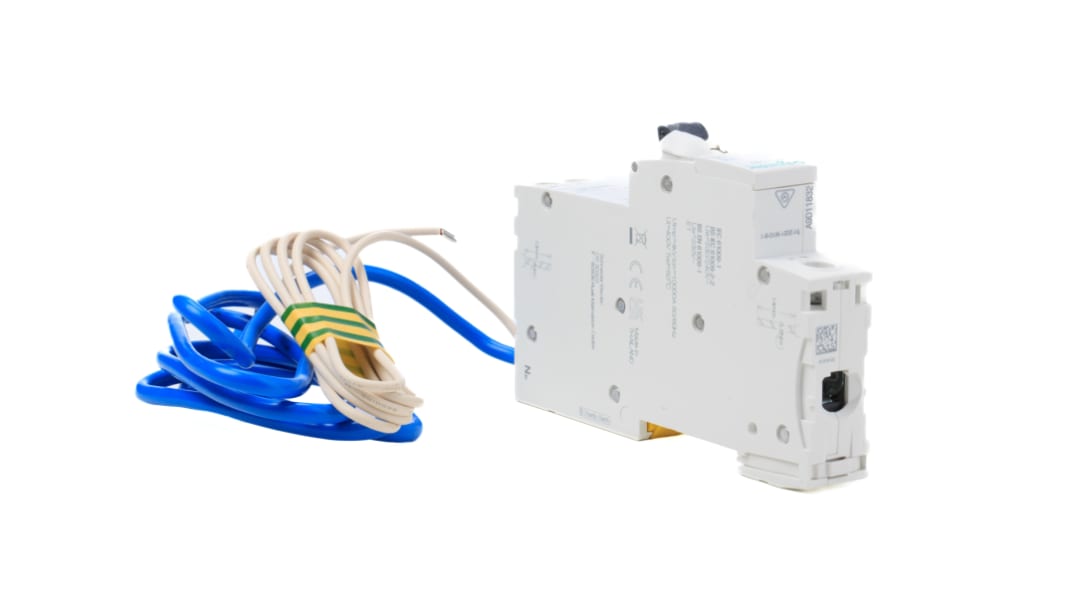

Schneider Electric RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range

RS Stock No.:: 790-9305
Distrelec Article No.:: 304-02-121
Mfr. Part No.:: A9D11820
Manufacturer:: Schneider Electric

Schneider Electric RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range

Subtotal (1 unit)**

€152.98

(exc. VAT)

€188.17

(inc. VAT)

24 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€152.98

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 790-9305
Distrelec Article No.:: 304-02-121
Mfr. Part No.:: A9D11820
Manufacturer:: Schneider Electric

Multi9 to Acti9 Reference Guide
Acti9 Ordering Guide
Datasheet
Instruction Sheet
Product Environmental Profile

Attribute	Value
Current Rating	20A
Number of Poles	1P+N
Trip Sensitivity	30mA
Tripping Characteristics	Type C
Range	Acti 9
Circuit Breaker Type	RCBO
Series	iC60H
Rated AC Voltage	240V
Mounting Style	DIN Rail Mount
Earth Leakage Protection Type	A
Better World Product	Yes
Better World Verification	Green Premium
Special Features	Short Circuit Protection
Breaking Capacity at Maximum Voltage Rating	10 kA
Tripping Mechanism	Thermal-Magnetic
Application	Distribution
Overall Length	110mm
Break Time	Instantaneous
Overall Depth	77.5mm
Overall Width	18mm
Terminal Contact Type	Screw
Overall Dimensions	110 x 18 x 77.5mm

Schneider Electric RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti 9 Range

Better World

Schneider Electric iC60H Series, RCBO, 20A Current Rating - A9D11820

Features & Benefits

Applications

Can it be used in commercial buildings?

Will it provide protection against electrical faults?

Is it compatible with other Schneider Electric products?
