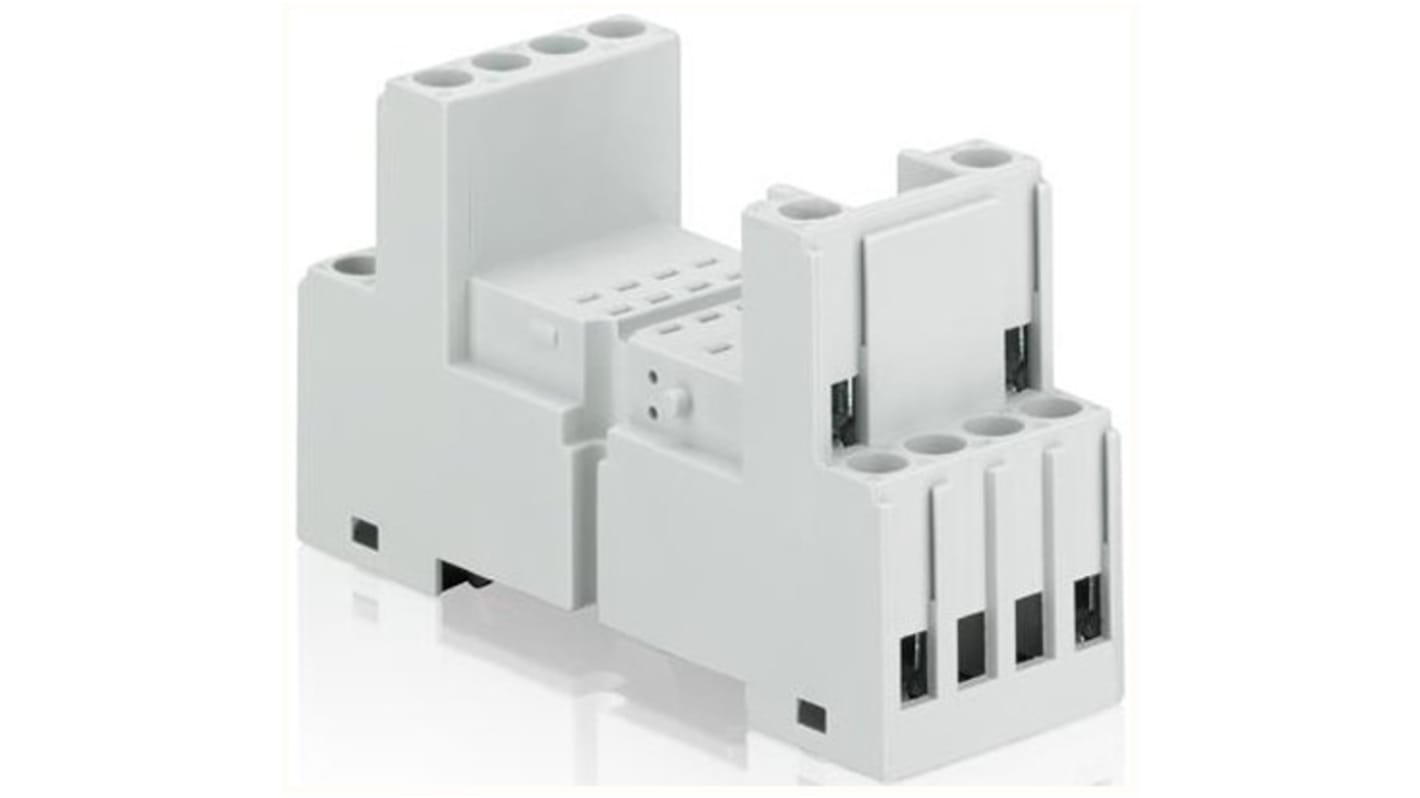

ABB CR-P/M PCB Mount Relay Socket

Need a way to securely fit a switching gear on a PCB? This relay socket from ABB creates a reliable link between your switch and control instrument for streamlined operations. Once mated with a relay, simply snap it onto a DIN rail for convenient, tool-free installation. The highly conductive, gold-plated contacts transmit strong signals to boost system reliability. A small footprint of just 12.7 (L) x 15.7 (H) x 29mm (D) means this socket easily squeezes into a crowded enclosure.

• Lightweight component, weighing only 66g, puts minimal strain on the PCB
• 16A switching current rating for use with heavy-duty systems
• Wide operating temperature range between -40°C and +70°C for use in challenging conditions

• Medical equipment
• Automated industrial machinery
• Consumer electronics
• Laboratory instruments

The unit handles flexible wire sizes between 20 to 16 AWG and fixed ones between 20 and 14 AWG.

Relay sockets simplify the mounting process and offer a more secure fit.
