MikroElektronika Thermo 2 Click Temperature Sensor MikroBus Click Board for DS1825

View all Sensor Development Tools
Bulk discount available

Subtotal (1 unit)*

€17.59

(exc. VAT)

€21.64

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4€17.59
5 - 9€16.72
10 +€15.83

*price indicative

RS Stock No.:
136-0718
Mfr. Part No.:
MIKROE-1840
Manufacturer:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Product Type

Sensor Development Tool

Sensor Technology

Temperature Sensor

Featured Device

DS1825

Kit Classification

MikroBus Click Board

Standards/Approvals

RoHS

Kit Name

Thermo 2 Click

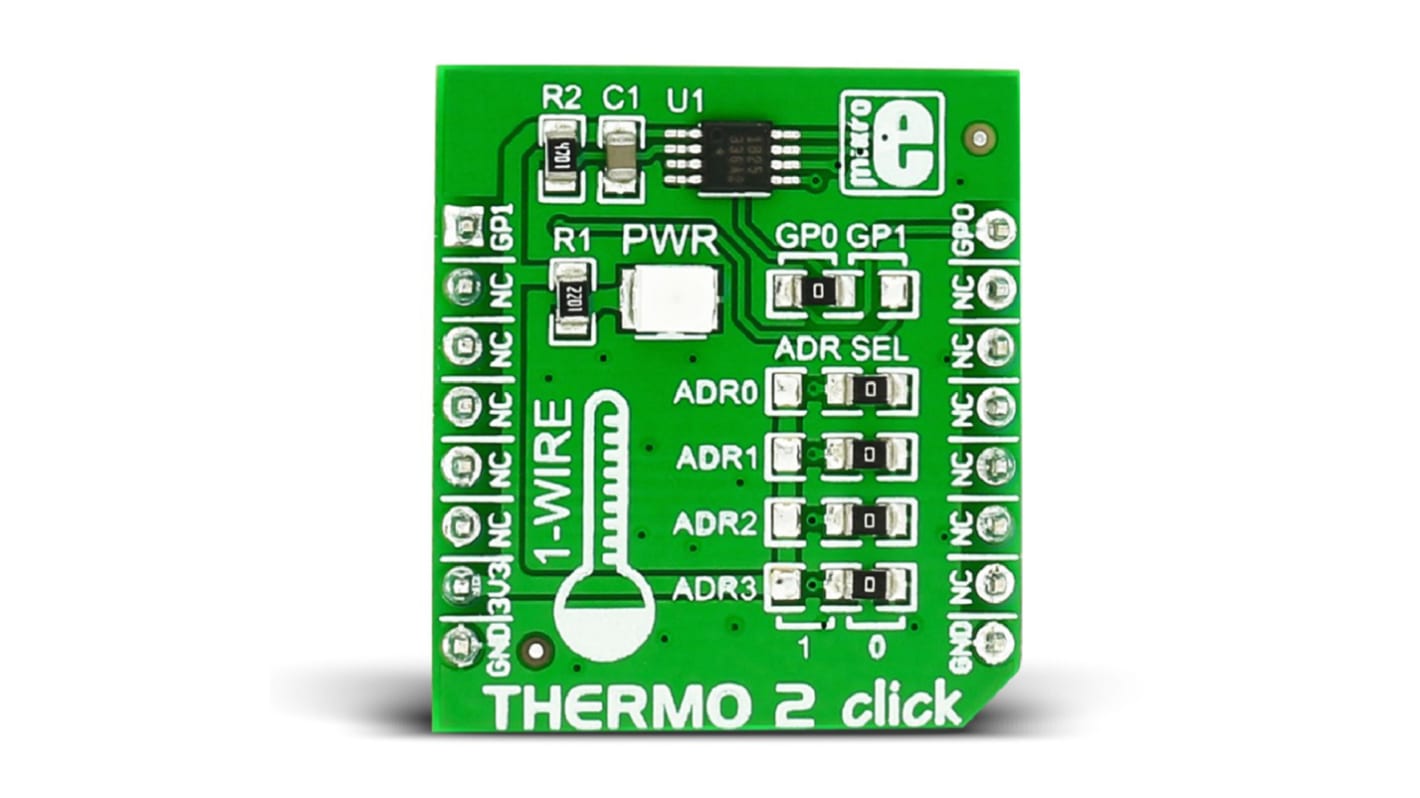

THERMO 2 click mikroBUS™


THERMO 2 click is a mikroBUS add-on board for digital Temperature measurements with Programmable Alarms. It features the DS1825, programmable resolution 1-Wire Digital Thermometer with 4-bit ID. Address selection with four jumpers lets you set up a unique ID for the board. Up to 16 sensors can be connected on the same 1-Wire bus interface.

1-Wire Bus Interface

9 to 12-bit Temperature User Selectable Output

±0.5°C Temperature Accuracy (10°C to 85°C)

Unique 64-Bit Serial Code

Interface pin selection on the mikroBUS socket with a jumper

3.3 V power supply on mikroBUS socket

Dimensions 28.6 x 25.4 mm

Click mikroBUS™ Sensor Boards


MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!

Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

Note

Click board comes with the header strips soldered.
