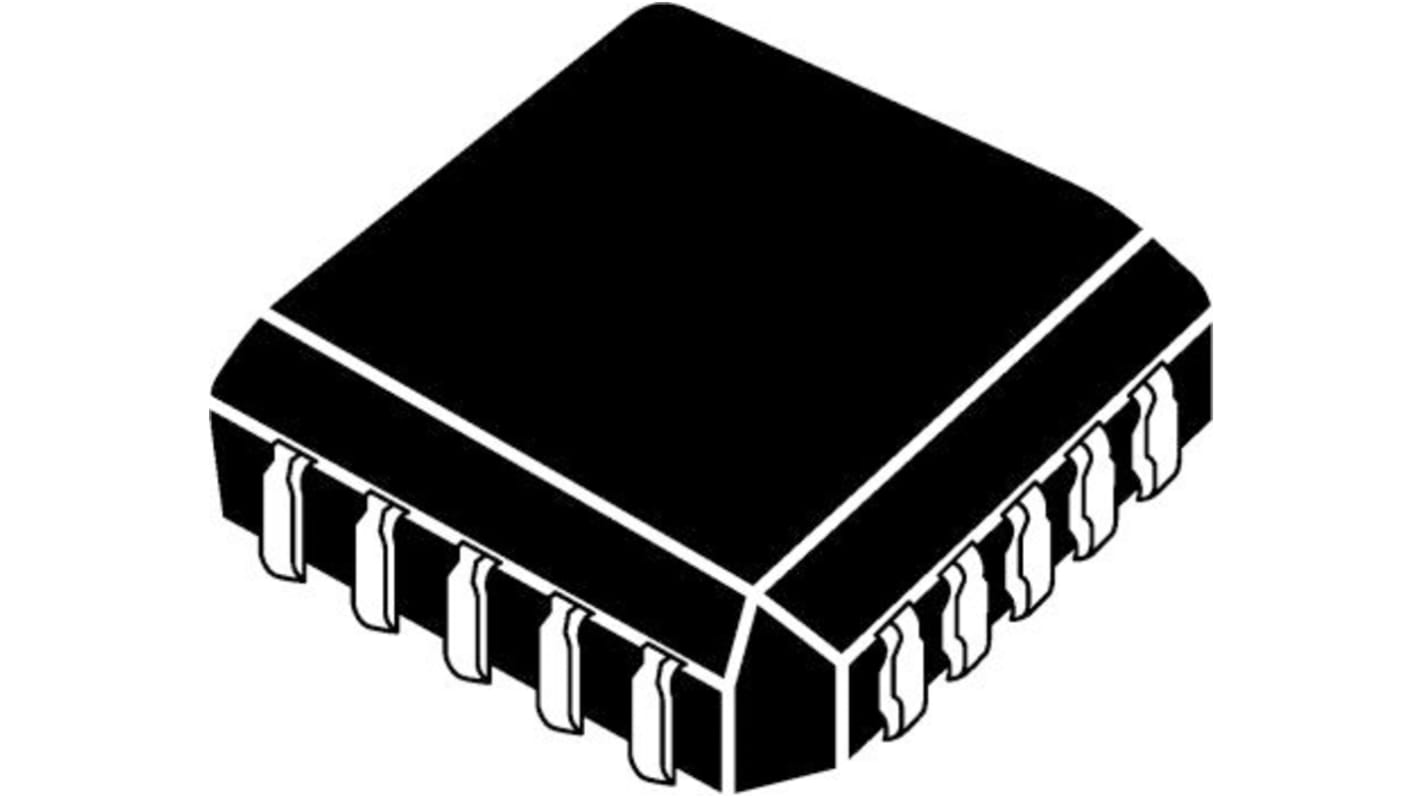

Microchip Simple Programmable Logic Device ATF16V8B 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System Programmability 15
- RS Stock No.:
- 127-8201P
- Mfr. Part No.:
- ATF16V8B-15JU
- Manufacturer:
- Microchip
Bulk discount available
Subtotal 25 units (supplied in a tube)*
€26.00
(exc. VAT)
€32.00
(inc. VAT)
In Stock
- 1,195 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 95 | €1.04 |
| 100 + | €1.00 |
*price indicative
- RS Stock No.:
- 127-8201P
- Mfr. Part No.:
- ATF16V8B-15JU
- Manufacturer:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Series | ATF16V8B | |
| Product Type | Simple Programmable Logic Device | |
| Number of Gates | 150 | |
| Number of Macro Cells | 8 | |
| Number of User I/Os | 8 | |
| Maximum Internal Frequency | 62MHz | |
| In System Programmability | Yes | |
| Re-programmability Support | Yes | |
| Mount Type | Surface | |
| Package Type | PLCC | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5V | |
| Pin Count | 20 | |
| Maximum Propagation Delay Time | 15ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 9.04mm | |
| Width | 9.04 mm | |
| Height | 4.06mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Series ATF16V8B | ||
Product Type Simple Programmable Logic Device | ||
Number of Gates 150 | ||
Number of Macro Cells 8 | ||
Number of User I/Os 8 | ||
Maximum Internal Frequency 62MHz | ||
In System Programmability Yes | ||
Re-programmability Support Yes | ||
Mount Type Surface | ||
Package Type PLCC | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5V | ||
Pin Count 20 | ||
Maximum Propagation Delay Time 15ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 9.04mm | ||
Width 9.04 mm | ||
Height 4.06mm | ||
Automotive Standard No | ||
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
