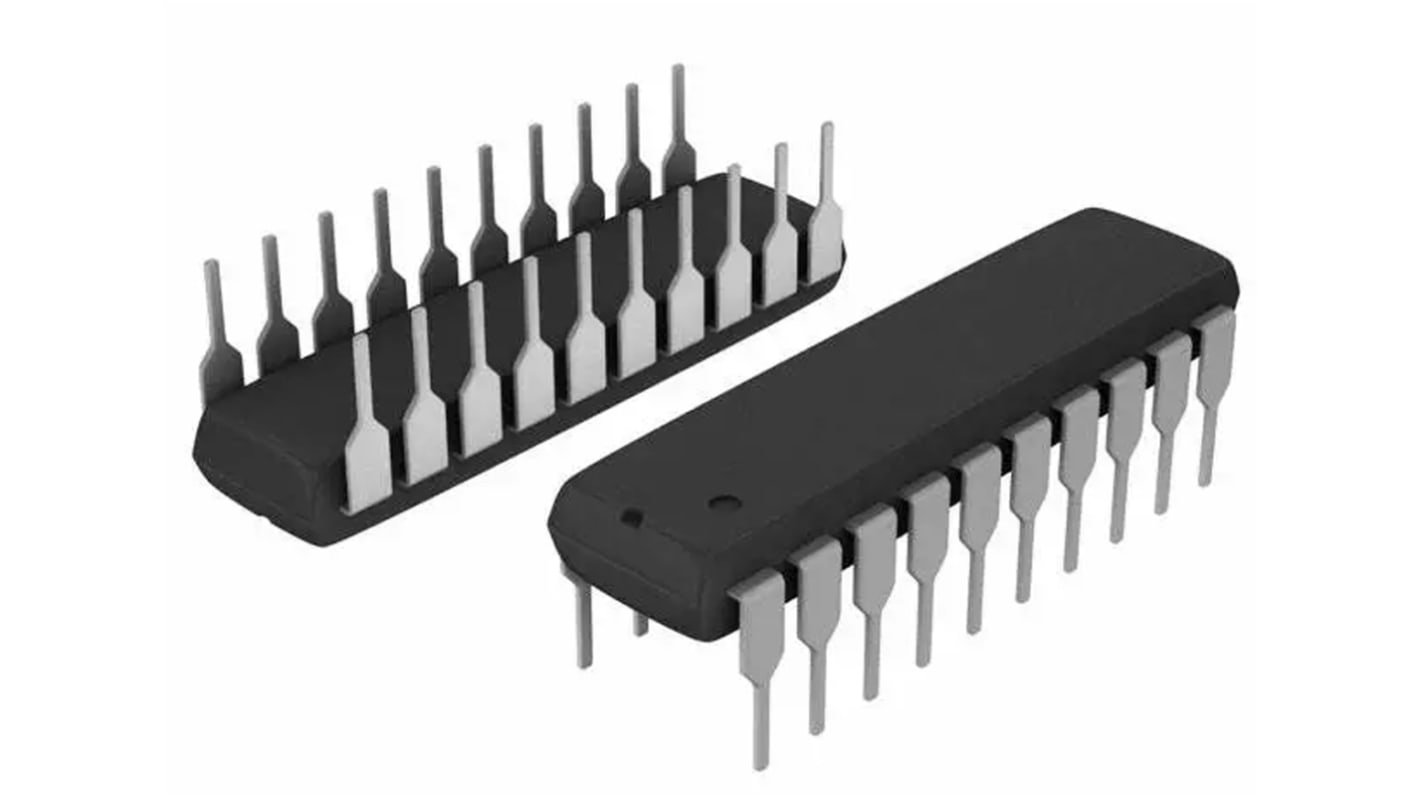

    Microchip ATF16V8BQL-15PU, SPLD Simple Programmable Logic Device ATF16V8B 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns

    View all SPLDs

    Subtotal 5 units (supplied in a tube)*

    €7.08

    (exc. VAT)

    €8.71

    (inc. VAT)

    Add to Basket
    Select or type quantity
    In Stock
    • 2,435 unit(s) ready to ship from another location
    Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
    Units
    Per unit
    5 +€1.416

    *price indicative

    Packaging Options:
    RS Stock No.:
    127-8205P
    Mfr. Part No.:
    ATF16V8BQL-15PU
    Manufacturer:
    Microchip
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Microchip

    Family Name

    ATF16V8B

    Number of Gates

    150

    Number of Macro Cells

    8

    Number of User I/Os

    8

    Maximum Internal Frequency

    62MHz

    Re-programmability Support

    Yes

    Mounting Type

    Through Hole

    Package Type

    PDIP

    Pin Count

    20

    Maximum Propagation Delay Time

    15ns

    Fabrication Technology

    CMOS, TTL

    Dimensions

    26.92 x 7.11 x 4.95mm

    Height

    4.95mm

    Minimum Operating Temperature

    -40 °C

    Propagation Delay Test Condition

    50pF

    Length

    26.92mm

    Width

    7.11mm

    Maximum Operating Supply Voltage

    5 V

    Maximum Operating Temperature

    +85 °C
