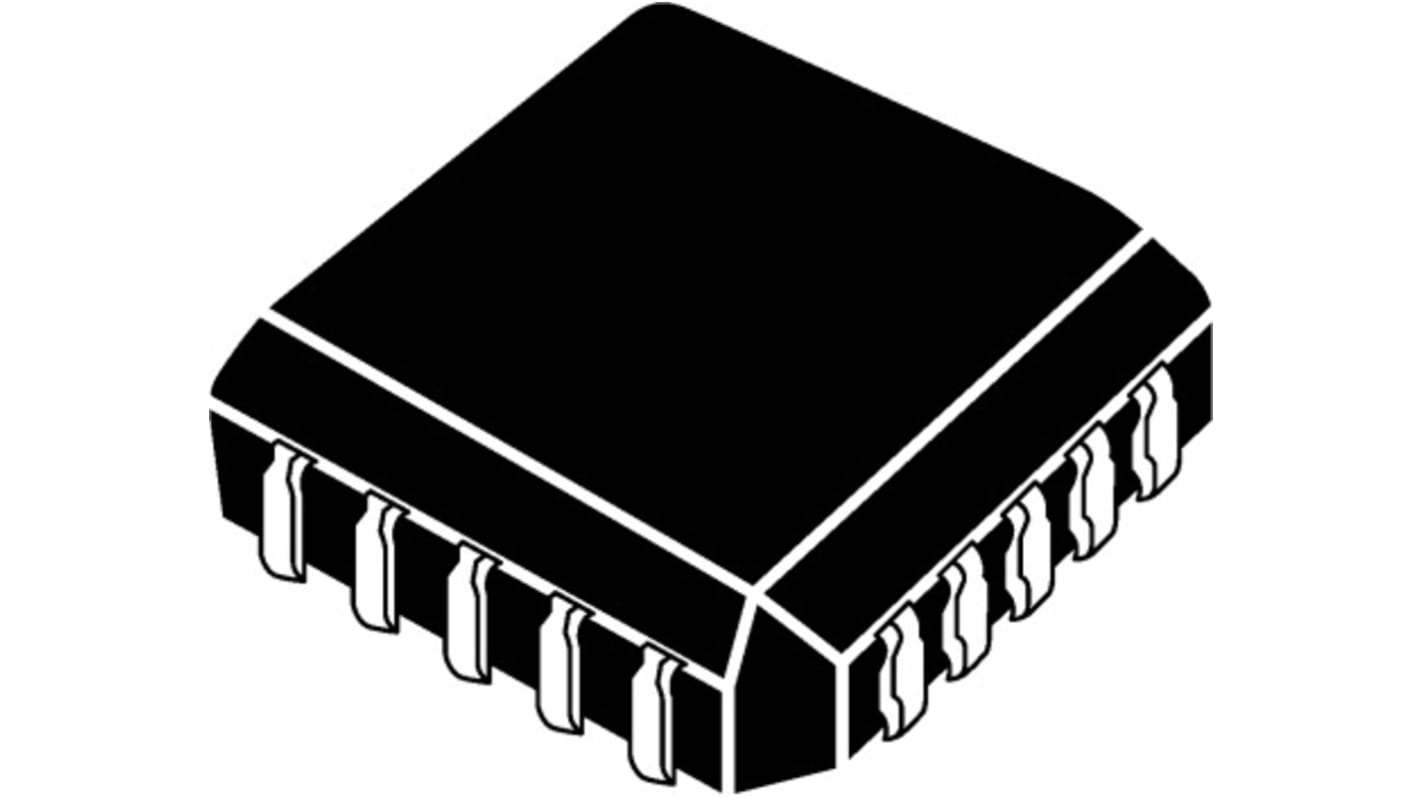

Microchip ATF16V8CZ-15JU, SPLD Simple Programmable Logic Device ATF16V8C 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns

RS Stock No.:: 127-8209P
Mfr. Part No.:: ATF16V8CZ-15JU
Manufacturer:: Microchip

Microchip ATF16V8CZ-15JU, SPLD Simple Programmable Logic Device ATF16V8C 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns

Bulk discount available

Price Each (Supplied in a Tube)**

€2.122

(exc. VAT)

€2.61

(inc. VAT)

195 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
25 - 95	€2.056
100 +	€1.986

**price indicative

RS Stock No.:: 127-8209P
Mfr. Part No.:: ATF16V8CZ-15JU
Manufacturer:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	ATF16V8C
Number of Gates	150
Number of Macro Cells	8
Number of User I/Os	8
Maximum Internal Frequency	62MHz
Re-programmability Support	Yes
Mounting Type	Surface Mount
Package Type	PLCC
Pin Count	20
Maximum Propagation Delay Time	15ns
Fabrication Technology	CMOS, TTL
Dimensions	9.04 x 9.04 x 4.06mm
Height	4.06mm
Propagation Delay Test Condition	50pF
Length	9.04mm
Width	9.04mm
Minimum Operating Temperature	-40 °C
Maximum Operating Supply Voltage	5 V
Maximum Operating Temperature	+85 °C

Microchip ATF16V8CZ-15JU, SPLD Simple Programmable Logic Device ATF16V8C 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns

Simple Programmable Logic Device, Microchip
