Nexperia PESD15VL2BT,215, Dual-Element Bi-Directional ESD Protection Diode, 200W, 3-Pin SOT-23

RS Stock No.:: 508-608
Mfr. Part No.:: PESD15VL2BT,215
Manufacturer:: Nexperia

Nexperia PESD15VL2BT,215, Dual-Element Bi-Directional ESD Protection Diode, 200W, 3-Pin SOT-23

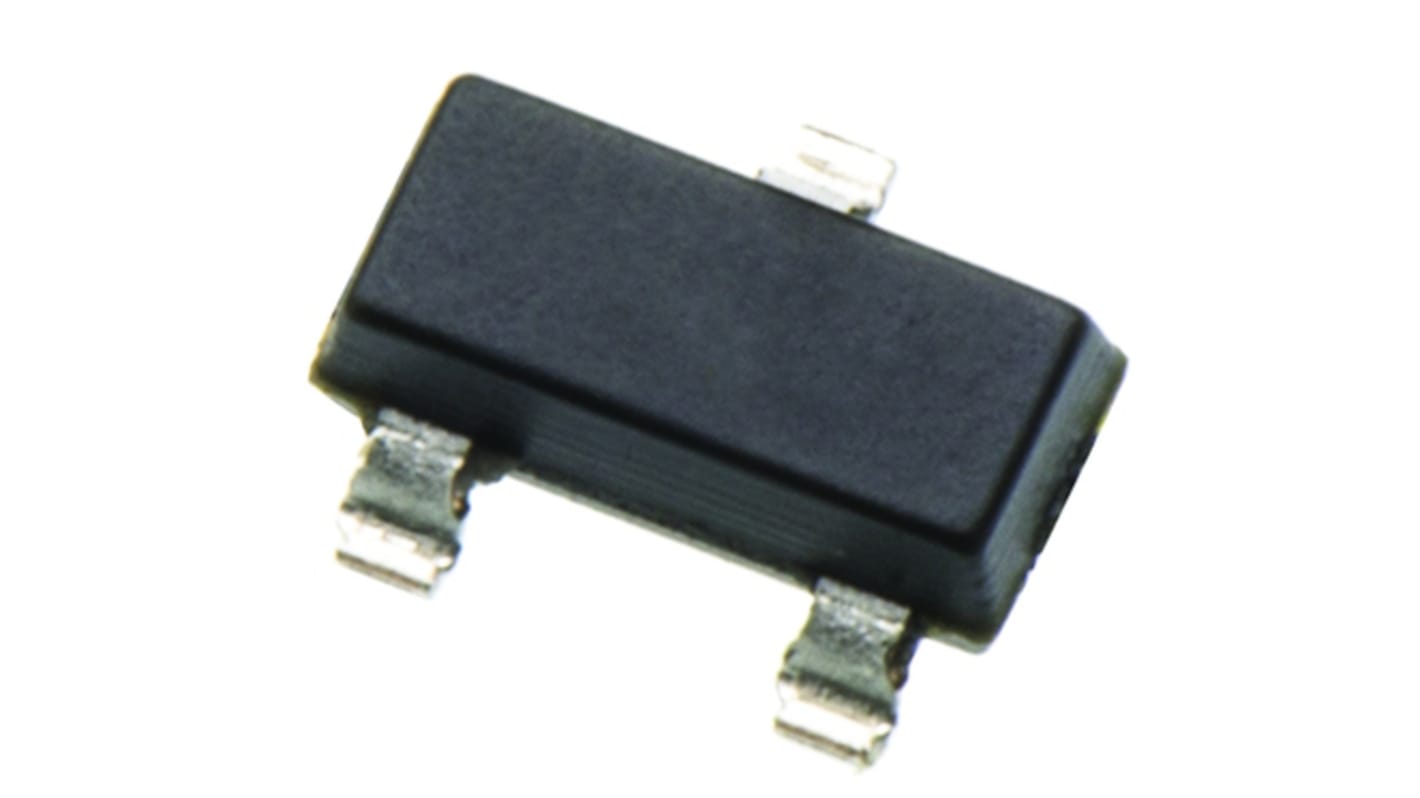

Image representative of range

Price Each (In a Pack of 20)**

€0.058

(exc. VAT)

€0.071

(inc. VAT)

1260 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
20 +	€0.058	€1.16

**price indicative

RS Stock No.:: 508-608
Mfr. Part No.:: PESD15VL2BT,215
Manufacturer:: Nexperia

Bi-Direct ESD protect diode,PESDxxL2BT
ESD Control Selection Guide V1

Attribute	Value
Direction Type	Bi-Directional
Diode Configuration	Series
Maximum Clamping Voltage	44V
Minimum Breakdown Voltage	17.1V
Mounting Type	Surface Mount
Package Type	SOT-23
Maximum Reverse Stand-off Voltage	15V
Pin Count	3
Peak Pulse Power Dissipation	200W
Maximum Peak Pulse Current	5A
ESD Protection	Yes
Number of Elements per Chip	2
Minimum Operating Temperature	-65 °C
Maximum Operating Temperature	+150 °C
Dimensions	3 x 1.4 x 1mm
Length	3mm
Width	1.4mm
Maximum Reverse Leakage Current	50nA
Height	1mm
Test Current	5mA

Nexperia PESD15VL2BT,215, Dual-Element Bi-Directional ESD Protection Diode, 200W, 3-Pin SOT-23

PESDxxxL2 Series, Low Capacitance Double Bidirectional ESD Protection Diodes, Nexperia
