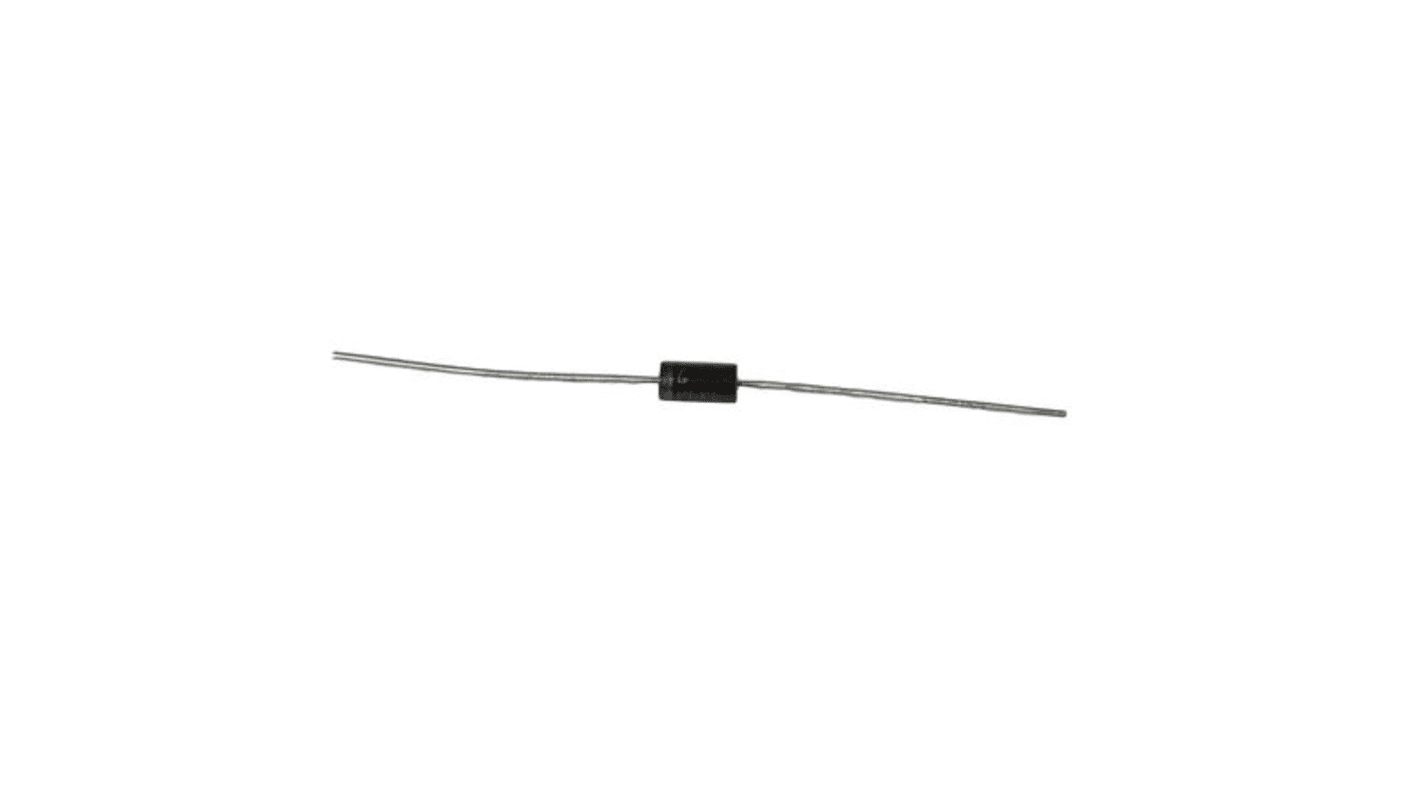

STMicroelectronics P6KE6V8A, Uni-Directional TVS Diode, 600W, 2-Pin DO-15
- RS Stock No.:
- 102-8625
- Mfr. Part No.:
- P6KE6V8A
- Manufacturer:
- STMicroelectronics
Bulk discount available
Subtotal (1 bag of 1000 units)*
€187.00
(exc. VAT)
€230.00
(inc. VAT)
In Stock
- 1,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 - 1000 | €0.187 | €187.00 |
| 2000 - 3000 | €0.183 | €183.00 |
| 4000 - 9000 | €0.177 | €177.00 |
| 10000 - 19000 | €0.172 | €172.00 |
| 20000 + | €0.165 | €165.00 |
*price indicative
- RS Stock No.:
- 102-8625
- Mfr. Part No.:
- P6KE6V8A
- Manufacturer:
- STMicroelectronics
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Single | |
| Direction Type | Uni-Directional | |
| Maximum Clamping Voltage | 13.4V | |
| Minimum Breakdown Voltage | 6.45V | |
| Mounting Type | Through Hole | |
| Package Type | DO-15 | |
| Maximum Reverse Stand-off Voltage | 5.8V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 600W | |
| Maximum Peak Pulse Current | 298A | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +175 °C | |
| Dimensions | 6.75 x 3.53 x 3.53mm | |
| Length | 6.75mm | |
| Width | 3.53mm | |
| Height | 3.53mm | |
| Test Current | 10mA | |
| Maximum Reverse Leakage Current | 1mA | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 13.4V | ||
Minimum Breakdown Voltage 6.45V | ||
Mounting Type Through Hole | ||
Package Type DO-15 | ||
Maximum Reverse Stand-off Voltage 5.8V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 600W | ||
Maximum Peak Pulse Current 298A | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -65 °C | ||
Maximum Operating Temperature +175 °C | ||
Dimensions 6.75 x 3.53 x 3.53mm | ||
Length 6.75mm | ||
Width 3.53mm | ||
Height 3.53mm | ||
Test Current 10mA | ||
Maximum Reverse Leakage Current 1mA | ||
