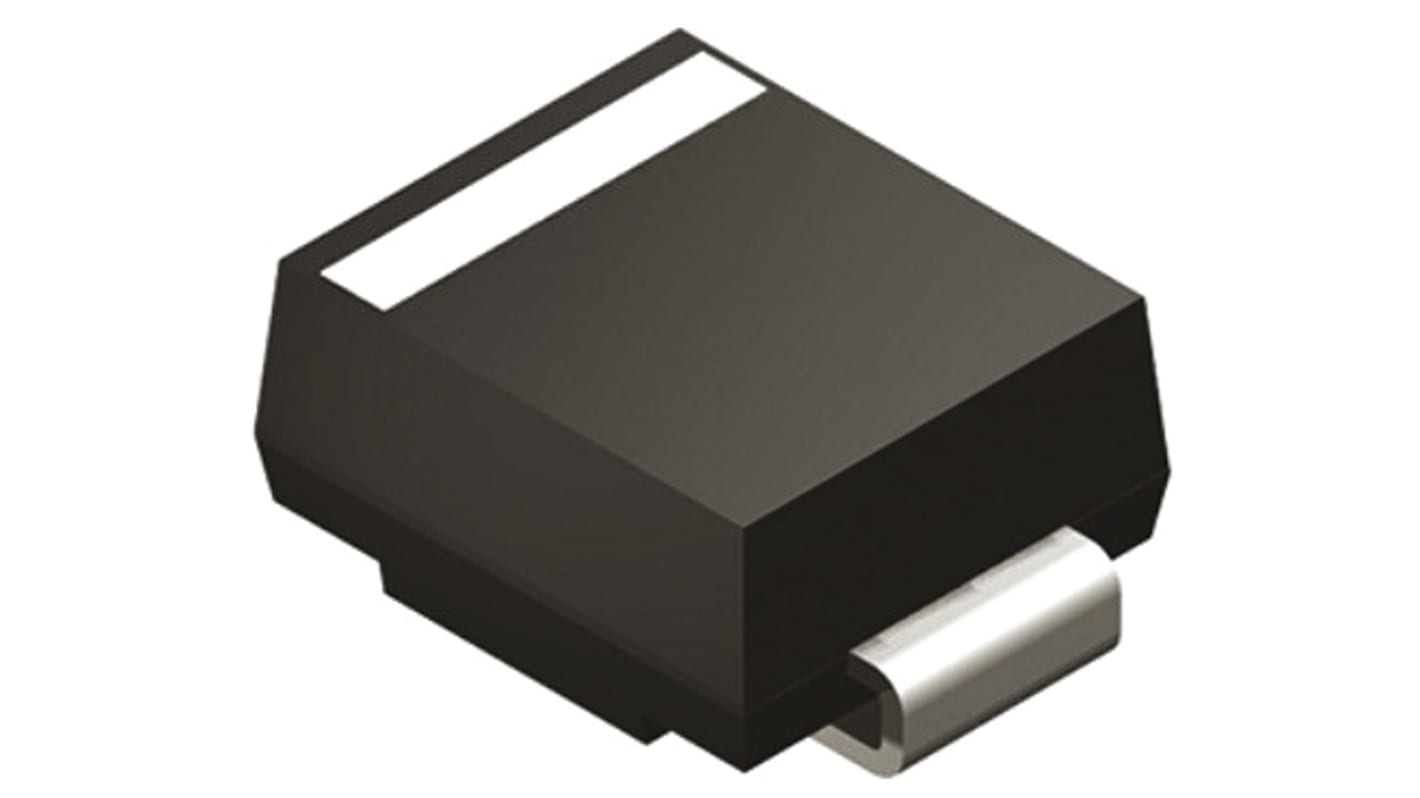

Vishay P6SMB220A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
- RS Stock No.:
- 145-2173
- Mfr. Part No.:
- P6SMB220A-E3/52
- Manufacturer:
- Vishay
Bulk discount available
Subtotal (1 reel of 750 units)*
€99.75
(exc. VAT)
€123.00
(inc. VAT)
Temporarily out of stock
- Shipping from 11 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
750 - 750 | €0.133 | €99.75 |
1500 - 3000 | €0.13 | €97.50 |
3750 + | €0.127 | €95.25 |
*price indicative
- RS Stock No.:
- 145-2173
- Mfr. Part No.:
- P6SMB220A-E3/52
- Manufacturer:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Diode Configuration | Single | |
Direction Type | Uni-Directional | |
Maximum Clamping Voltage | 328V | |
Minimum Breakdown Voltage | 209V | |
Mounting Type | Surface Mount | |
Package Type | DO-214AA (SMB) | |
Maximum Reverse Stand-off Voltage | 185V | |
Pin Count | 2 | |
Peak Pulse Power Dissipation | 600W | |
Maximum Peak Pulse Current | 1.8A | |
Number of Elements per Chip | 1 | |
Minimum Operating Temperature | -65 °C | |
Dimensions | 4.57 x 3.94 x 2.24mm | |
Maximum Operating Temperature | +150 °C | |
Length | 4.57mm | |
Height | 2.24mm | |
Test Current | 1mA | |
Maximum Reverse Leakage Current | 1µA | |
Width | 3.94mm | |
Select all | ||
---|---|---|
Brand Vishay | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Maximum Clamping Voltage 328V | ||
Minimum Breakdown Voltage 209V | ||
Mounting Type Surface Mount | ||
Package Type DO-214AA (SMB) | ||
Maximum Reverse Stand-off Voltage 185V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 600W | ||
Maximum Peak Pulse Current 1.8A | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -65 °C | ||
Dimensions 4.57 x 3.94 x 2.24mm | ||
Maximum Operating Temperature +150 °C | ||
Length 4.57mm | ||
Height 2.24mm | ||
Test Current 1mA | ||
Maximum Reverse Leakage Current 1µA | ||
Width 3.94mm | ||
