Units	Per unit	Per Pack*
20 - 180	€0.214	€4.28
200 - 480	€0.141	€2.82
500 - 980	€0.138	€2.76
1000 - 1980	€0.134	€2.68
2000 +	€0.131	€2.62

Select all	Attribute	Value
	Brand	Vishay
	Diode Configuration	Single
	Direction Type	Uni-Directional
	Maximum Clamping Voltage	58.1V
	Minimum Breakdown Voltage	40V
	Mounting Type	Surface Mount
	Package Type	DO-214AA (SMB)
	Maximum Reverse Stand-off Voltage	36V
	Pin Count	2
	Peak Pulse Power Dissipation	600W
	Maximum Peak Pulse Current	10.3A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Dimensions	4.57 x 3.94 x 2.24mm
	Maximum Operating Temperature	+150 °C
	Length	4.57mm
	Width	3.94mm
	Height	2.24mm
	Test Current	1mA
	Maximum Reverse Leakage Current	1µA

	Select all
	Brand Vishay
	Diode Configuration Single
	Direction Type Uni-Directional
	Maximum Clamping Voltage 58.1V
	Minimum Breakdown Voltage 40V
	Mounting Type Surface Mount
	Package Type DO-214AA (SMB)
	Maximum Reverse Stand-off Voltage 36V
	Pin Count 2
	Peak Pulse Power Dissipation 600W
	Maximum Peak Pulse Current 10.3A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Dimensions 4.57 x 3.94 x 2.24mm
	Maximum Operating Temperature +150 °C
	Length 4.57mm
	Width 3.94mm
	Height 2.24mm
	Test Current 1mA
	Maximum Reverse Leakage Current 1µA

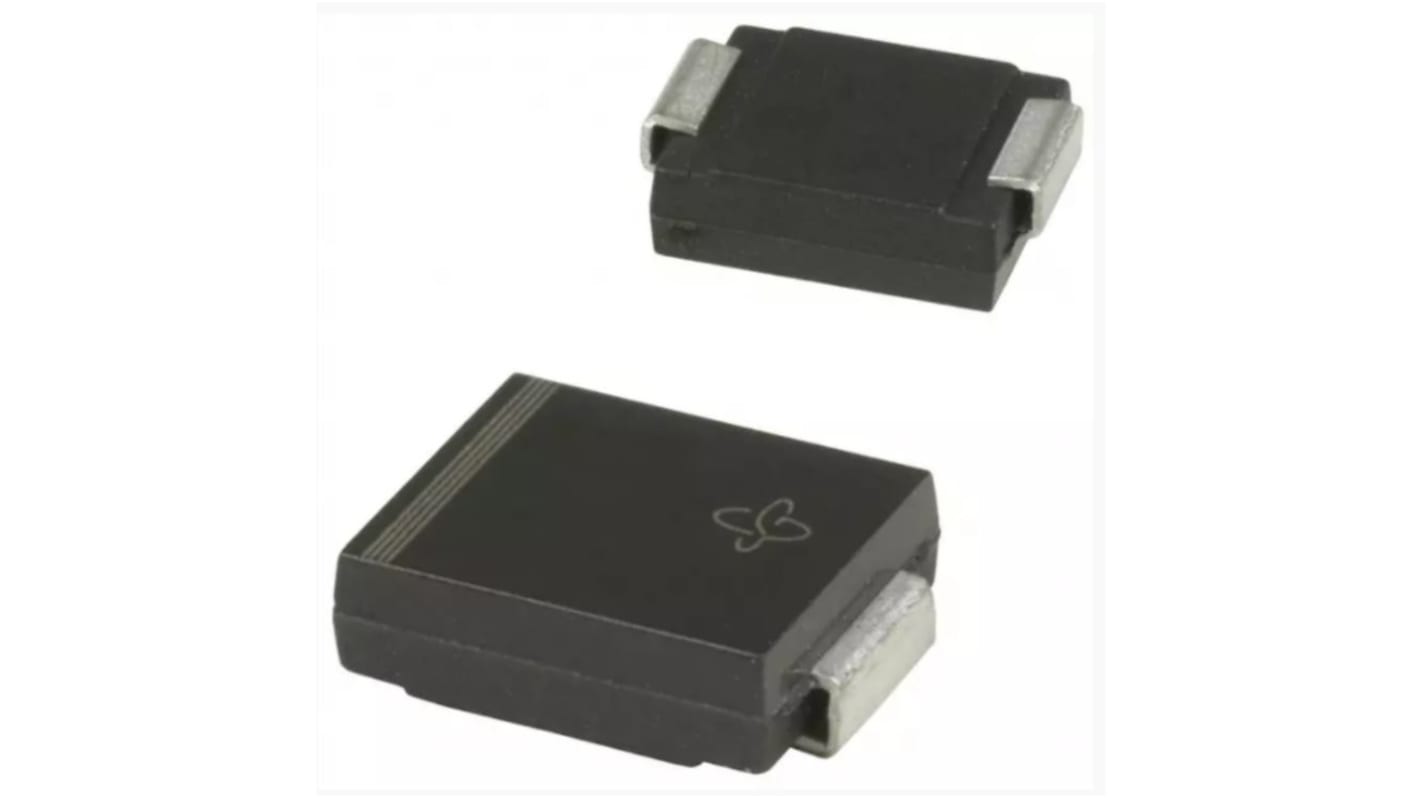

Vishay SMBJ36A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

TRANSZORB® Transient Voltage Suppressors SMT Unidirectional 600W, SMBJ Series, Vishay Semiconductor

Features:

Applications:
