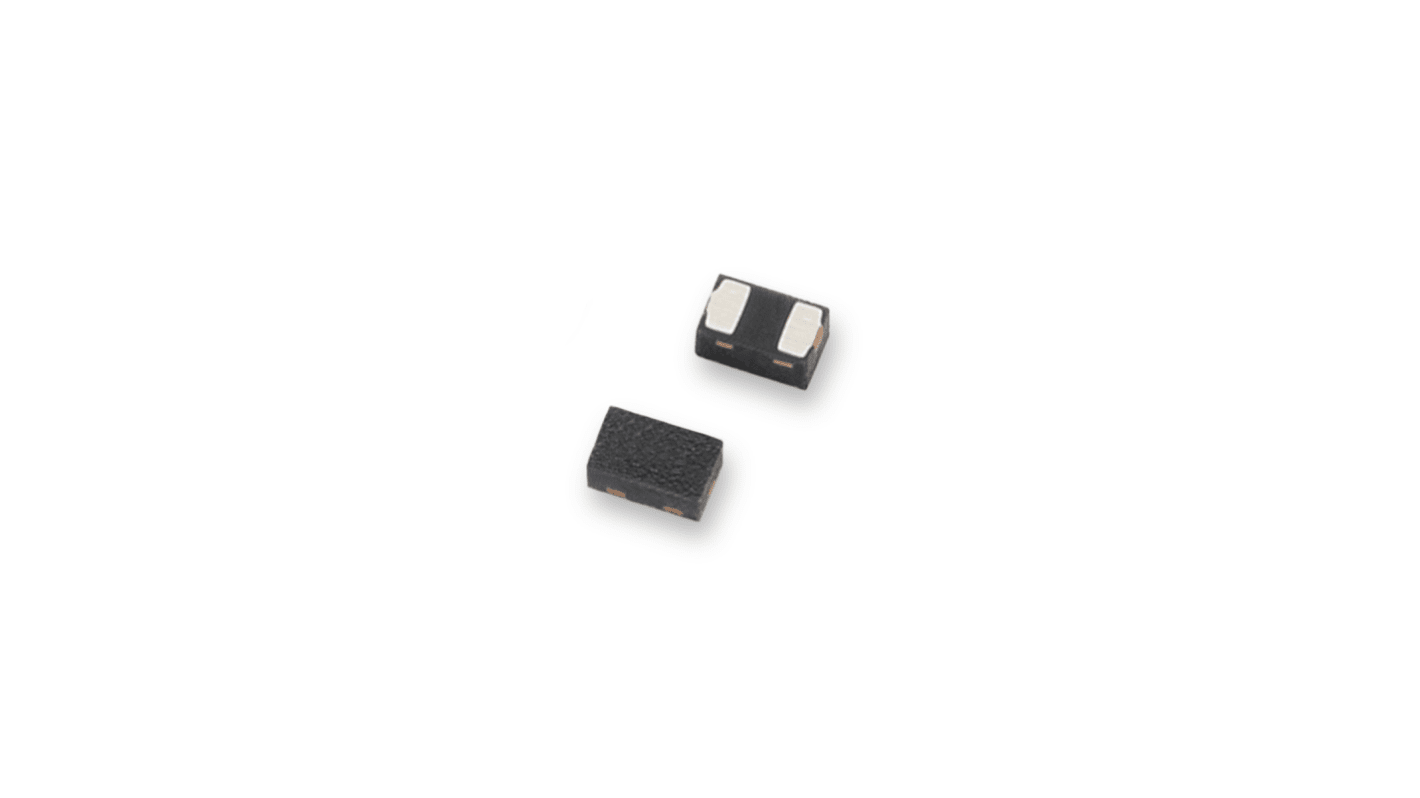

Littelfuse SP4322-01ETG 2-Element Bi-Directional TVS Diode Array, 2-Pin SOD-882
- RS Stock No.:
- 205-3575
- Mfr. Part No.:
- SP4322-01ETG
- Manufacturer:
- Littelfuse
Get a bulk buy discount
Add 1000 more to save €59.00
View bulk pricing optionsSubtotal (1 pack of 50 units)*
€14.95
(exc. VAT)
€18.40
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 50 - 950 | €0.299 | €14.95 | - |
| 1000 - 2450 | €0.24 | €12.00 | €59.00 |
| 2500 - 4950 | €0.235 | €11.75 | €160.00 |
| 5000 + | €0.229 | €11.45 | €350.00 |
*price indicative
- RS Stock No.:
- 205-3575
- Mfr. Part No.:
- SP4322-01ETG
- Manufacturer:
- Littelfuse
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Diode Configuration | Array | |
| Product Type | TVS Diode Array | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 9V | |
| Mount Type | Surface | |
| Package Type | SOD-882 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 2 | |
| Clamping Voltage VC | 4V | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Number of Elements per Chip | 2 | |
| Standards/Approvals | No | |
| Width | 600μm | |
| Series | SP4322 | |
| Height | 500μm | |
| Length | 1mm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 100nA | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Diode Configuration Array | ||
Product Type TVS Diode Array | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 9V | ||
Mount Type Surface | ||
Package Type SOD-882 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 2 | ||
Clamping Voltage VC 4V | ||
ESD Protection Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Number of Elements per Chip 2 | ||
Standards/Approvals No | ||
Width 600μm | ||
Series SP4322 | ||
Height 500μm | ||
Length 1mm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 100nA | ||
- COO (Country of Origin):
- CN
The Littelfuse TVS diode is specifically designed to protect high-speed interfaces against ElectroStatic Discharge (ESD), such as DisplayPort interfaces and USB 3.1 Gen 1. The signal line is protected by low line capacitance of 0.4 pF typical. It has SOD882 package type.
Low capacitance of 0.4pF (TYP @ VR=0V)
Low leakage current of 1nA (TYP) at 5V
Halogen free, lead free and RoHS compliant
Moisture sensitivity level (MSL -1)
AEC-Q101 qualified
