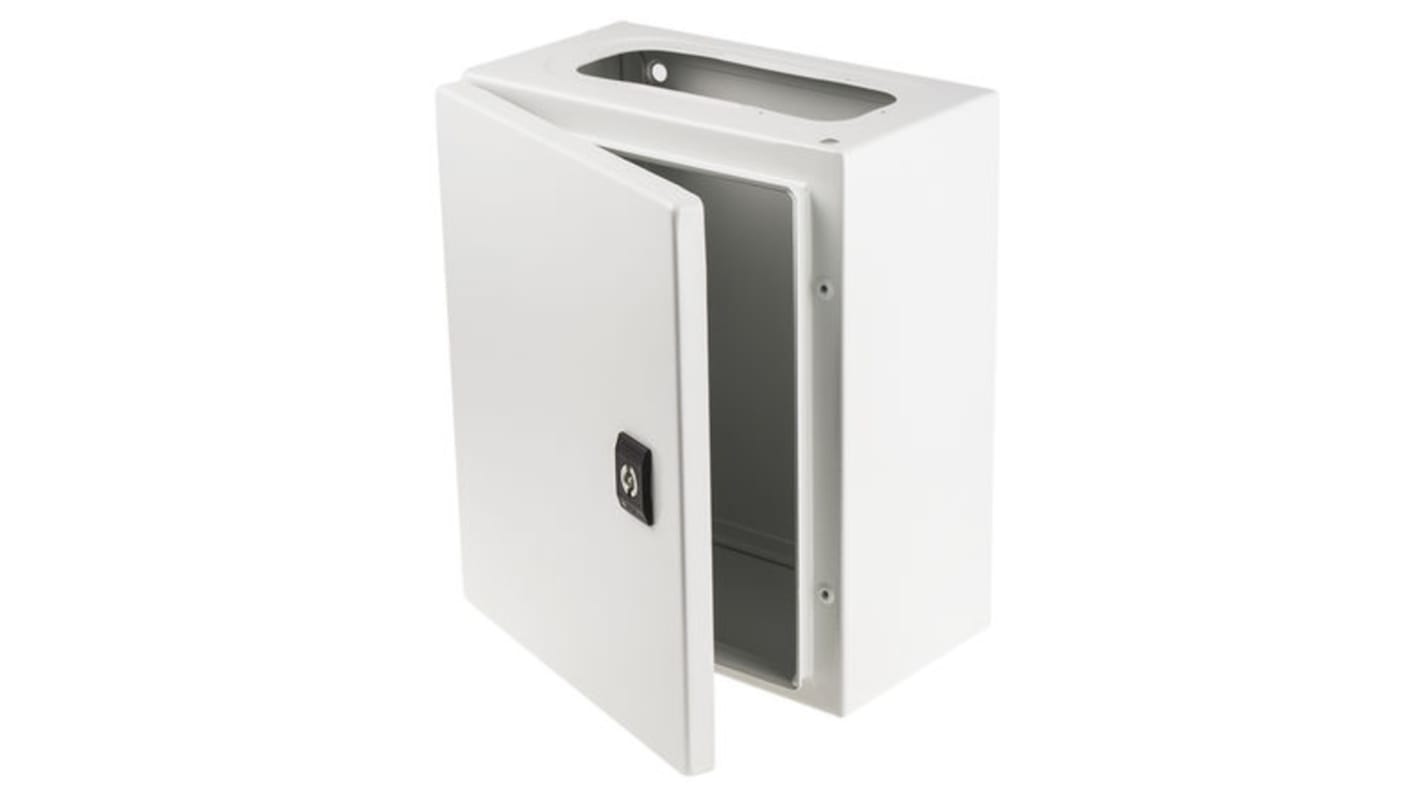

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 300 mm x 250 mm x 150mm

RS Stock No.:: 136-9395
Mfr. Part No.:: NSYCRN325150P
Manufacturer:: Schneider Electric

Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 300 mm x 250 mm x 150mm

Bulk discount available

Price Each

€47.29

(exc. VAT)

€58.17

(inc. VAT)

16 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 - 3	€47.29
4 +	€45.86

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 136-9395
Mfr. Part No.:: NSYCRN325150P
Manufacturer:: Schneider Electric

Schneider Electric IP66/IK10 Spacial CRN - CRNG Multi-Purpose Steel Wall Box Enclosure with Cable Gland Plate.

The Schneider Electric Spacial CRN and CRNG steel wall mounting enclosure is a truly universal wall box enclosure has an epoxy-polyester powder finish light grey body. The enclosure also has a polyurethane seal to guarantee water tightness for years. Schneider Electric range offers you CRN models and CRNG models for larger sizes of wall box enclosures.

CRN and CRNG Universal Wall Box Enclosures Features.

Doors are removable, have a 120° opening, reversible with 2 closing points from 600 mm in height.

Maximum load of 50 kg/m2.

Polyurethane seal.

Smart hinges allow easier removal allowing door reversal.

Various inserts available.

Welded studs on the door and wall box enclosure body (earth welded).

Welded back studs (4), shouldered for mounting 10 mm.

Epoxy polyester coating, polyurethane seal to guarantee water tightness for years.

Polyester painted RAL 7035.

CRNG Wall Boxes.

3 Point lock.

Double door models available (IP 55).

Please Note - Wall brackets available seperately and
not all enclosures are supplied with a mounting (chassis) plate, please refer to the attribute data for details.

Spacial CRN / CRNG Wall Box Enclosure Chassis Optionally Available.

Plain, Silk-screen, micro-perforated, Telequick perforated, Symmetrical, Steel cable gland plate, Insulated cable gland plate (with knockouts), Cable gland plate will receive membranes.

Spacial CRN / CRNG Steel Wall Box Enclosure Typical Applications.

Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).

Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).

Electronics and Industrial networks (18 inch fixed or swing frame).

NSYCRN325150P Spacial CRN Compact Multi-Purpose Wall Box Enclosure with Mount Plate.

Features.

Compact enclosure.

Wall mounting.

Plain front door, reversible 120°.

Mounting plate is supplied.

Sides made from a single folded section, Back welded with double profile forming a protected sealed area.

3 mm double-bar lock.

Standard gland plate.

Hinges, mounting plate and cable gland plate removable.

Body made from steel, mounting plate is galvanised steel.

Epoxy-polyester powder finish, Grey RAL 7035.

IP66 conforming to IEC 60529 (indoor and outdoor use).

What is supplied?

Lock 1, Door 1, Body 1, Cable gland plate 1, Mounting plate 1.

Approvals

CU, UL.

Standards

IEC 62208

Attribute	Value
External Height	300 mm
External Width	250 mm
External Depth	150mm
Body Material	Steel
Transparent Door	No
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Double Bar
Gland Plate	Yes
Colour	Grey
Series	Spacial CRN
RAL Code	RAL 7035
Better World Product	Yes
External Mounting Type	Bracket
Better World Verification	Green Premium
Special Features	120° Door Opening
Internal Mounting Type	Panel
Fixing Kit	No
IK Rating	IK10
