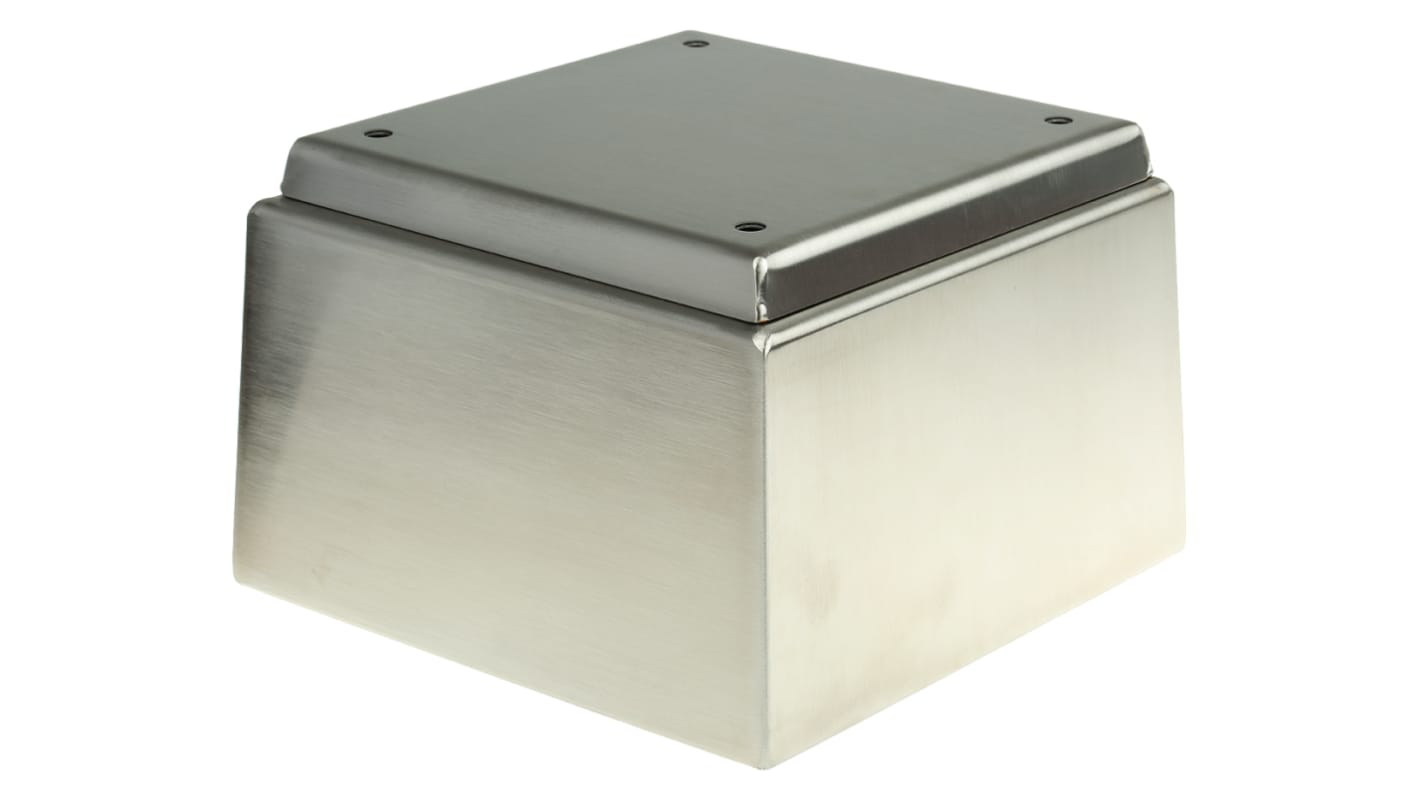

    Rittal HD Series Stainless Steel Terminal Box, IP66, IP69K, 150 mm x 150 mm x 120mm

    Rittal
    RS Stock No.:
    756-6774
    Mfr. Part No.:
    1671600
    Manufacturer:
    Rittal
    View all Wall Boxes
    5 In stock for delivery within 2 working days
    Add to Basket
    units

    Added

    Price Each

    €324.92

    (exc. VAT)

    €399.65

    (inc. VAT)

    unitsPer unit
    1 +€324.92
    RS Stock No.:
    756-6774
    Mfr. Part No.:
    1671600
    Manufacturer:
    Rittal

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    IP69K Hygienic Terminal Boxes


    The Rittal HD Hygienic Terminal Box is suitable for accepting electrical equipment in the food processing industry (splash area and non-food area according to DIN EN 1672-2). The enclosure is resistant to cleaning and disinfection as well as being dust-resistant, protecting installed components against intensive water spray (protection category IP66) and high-pressure cleaning (protection category IP69K).

    Stainless steel 1.4301 (AISI 304) 1.5mm enclosure and cover
    Sheet steel, zinc-plated, 2.0mm mounting bracket
    Stainless steel quick-release locks
    Silicone Seal, compliant with FDA 21 CFR 177.2600
    Intensive water spray IP66 and high-pressure cleaning IP69K
    Enclosure and cover have brushed, grain 400, RA < 0.8 um finish
    Blue, dyed seal, RAL 5010

    Standards

    EN 60 529

    Supplied with

    cover, mounting bracket (pre-assembled), seal and quick-release locks (enclosed).

    Rittal Terminal Box, Stainless Steel Material, 120mm Depth - HD Series - 1671600


    Safely house and protect your electrical controls in demanding environments with this terminal box from Rittal. Its body is made from durable stainless steel, so it's resistant to corrosion and impact. The door has a silicone seal to keep air and moisture out. Thanks to its IP66 and IP69K ratings, it's sealed against dust and high-temperature, high-pressure water jets. This makes it a good choice for use in hygienic areas where frequent washdowns are needed.

    Features & Benefits


    • LIght weight of 2.2kg to place minimal strain on the mounting surface
    • Compact dimensions of 150 (front height) x 150 (front width) x 120mm (depth) for installation in tight spaces

    Applications


    • Processing plants
    • Food industry

    Is this box easy to install?


    Yes, this box is supplied with an installation bracket for fast and simple mounting.


    Specifications

    AttributeValue
    External Height150 mm
    External Width150 mm
    External Depth120mm
    Body MaterialStainless Steel
    Transparent DoorNo
    IP RatingIP66, IP69K
    Chassis PlateNo
    Door Lock TypeQuick Release Lock
    Gland PlateNo
    IK RatingIK08
    ColourUnpainted
    SeriesHD
    Fixing KitYes
    External Mounting TypeBracket
    Internal Mounting TypePerforated Rail
    Standards MetUL
