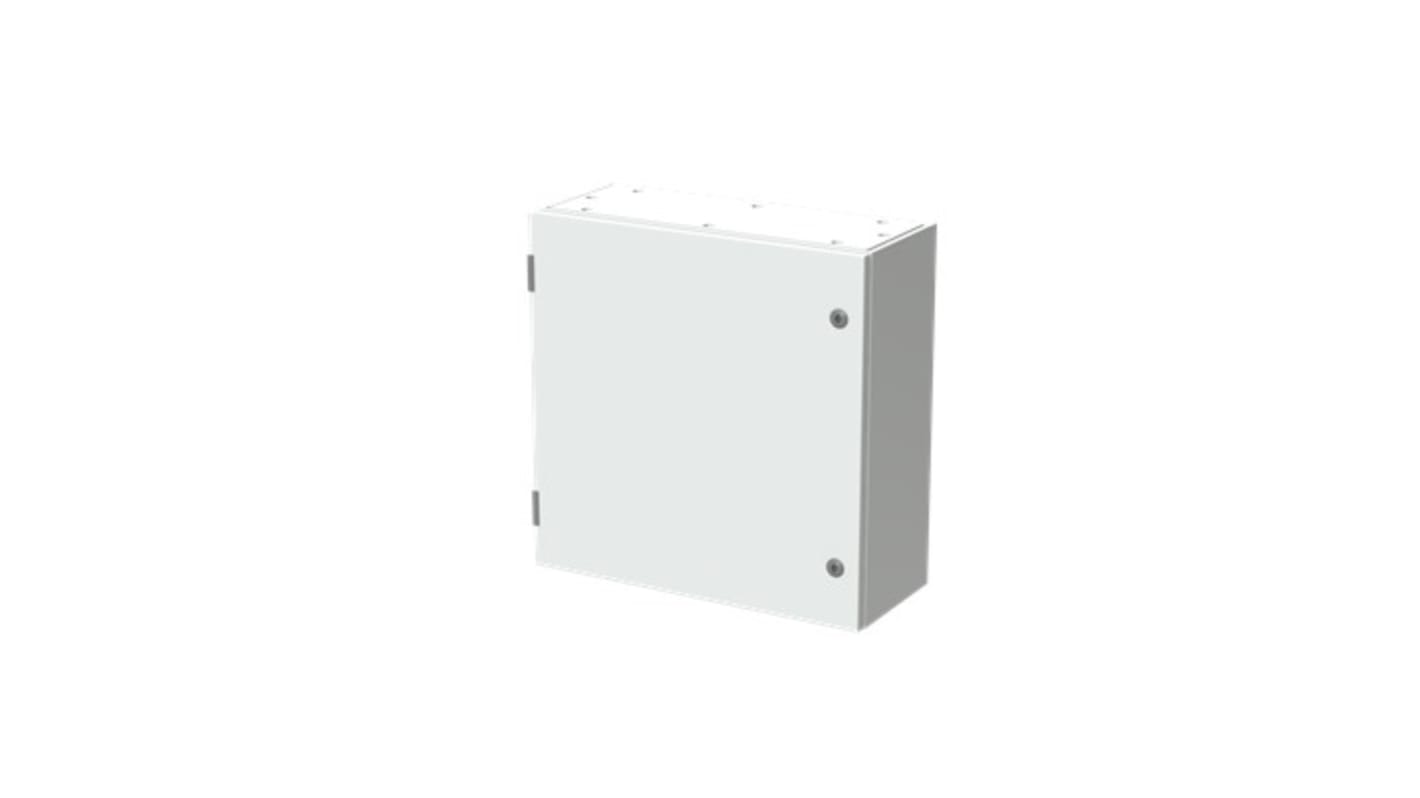

    ABB SR2 Monobloc Series Steel Wall Box, IP65, 600 mm x 600 mm x 250mm

    RS Stock No.:
    768-5695
    Mfr. Part No.:
    SRN6625K SR2-SRN6625K
    Manufacturer:
    ABB
    ABB

    Image representative of range

    View all Wall Boxes
    1 In stock for delivery within 2 working days
    Add to Basket
    units

    Added

    Price Each

    €227.00

    (exc. VAT)

    €279.21

    (inc. VAT)

    unitsPer unit
    1 - 4€227.00
    5 - 9€215.65
    10 - 24€204.30
    25 - 49€192.95
    50 +€181.61
    RS Stock No.:
    768-5695
    Mfr. Part No.:
    SRN6625K SR2-SRN6625K
    Manufacturer:
    ABB

    Technical data sheets


    Legislation and Compliance


    Product Details

    SR2 Monobloc Enclosure


    The range of ABB IP65 rated SR2 monobloc enclosures are made from steel. The wall-mounted enclosures are designed to fulfil the typical needs of the builder or installer of control panels.


    Features and Benefits


    • Can be stacked vertically, allowing two switchboard sections separate from each other to be made inside a single structure. This is done by removing the fairlead plates and inserting an optional IP65 sealing gasket. Assembly is then done by using the same holes used for the fairlead plates
    • Supplied with mounting plate
    • IP65 means that the wall boxes are protects against dust and water projected from a nozzle
    • Fitted with two cable entry flanges (one for the top and one for the bottom side) so that the whole enclosure is made reversible, offering the possibility of having door opening either on the right or left
    • Available with a solid door or a glass door
    • Wide range of sizes available


    Features and Benefits


    The SR2 Monobloc wall-mounted enclosures are ideal for making switchgear and control gear switchboards for various industrial machines: from large machinery with automated production lines, down to the typical installations of on-board machine switchboards, boilers and heating plants.


    Standards

    CEI EN 62208, CEI EN 60439-1, IEC61439-1-2.

    Approvals

    UL (Underwriters Laboratories) and CSA (Canadian Standards Association) Type 12 marks.


    Specifications

    AttributeValue
    External Height600 mm
    External Width600 mm
    External Depth250mm
    Body MaterialSteel
    Transparent DoorNo
    IP RatingIP65
    Chassis PlateYes
    Door Lock TypeKey
    Gland PlateNo
    ColourGrey
    SeriesSR2 Monobloc
    Fixing KitNo
    External Mounting TypeBracket
    Internal Mounting TypePanel
