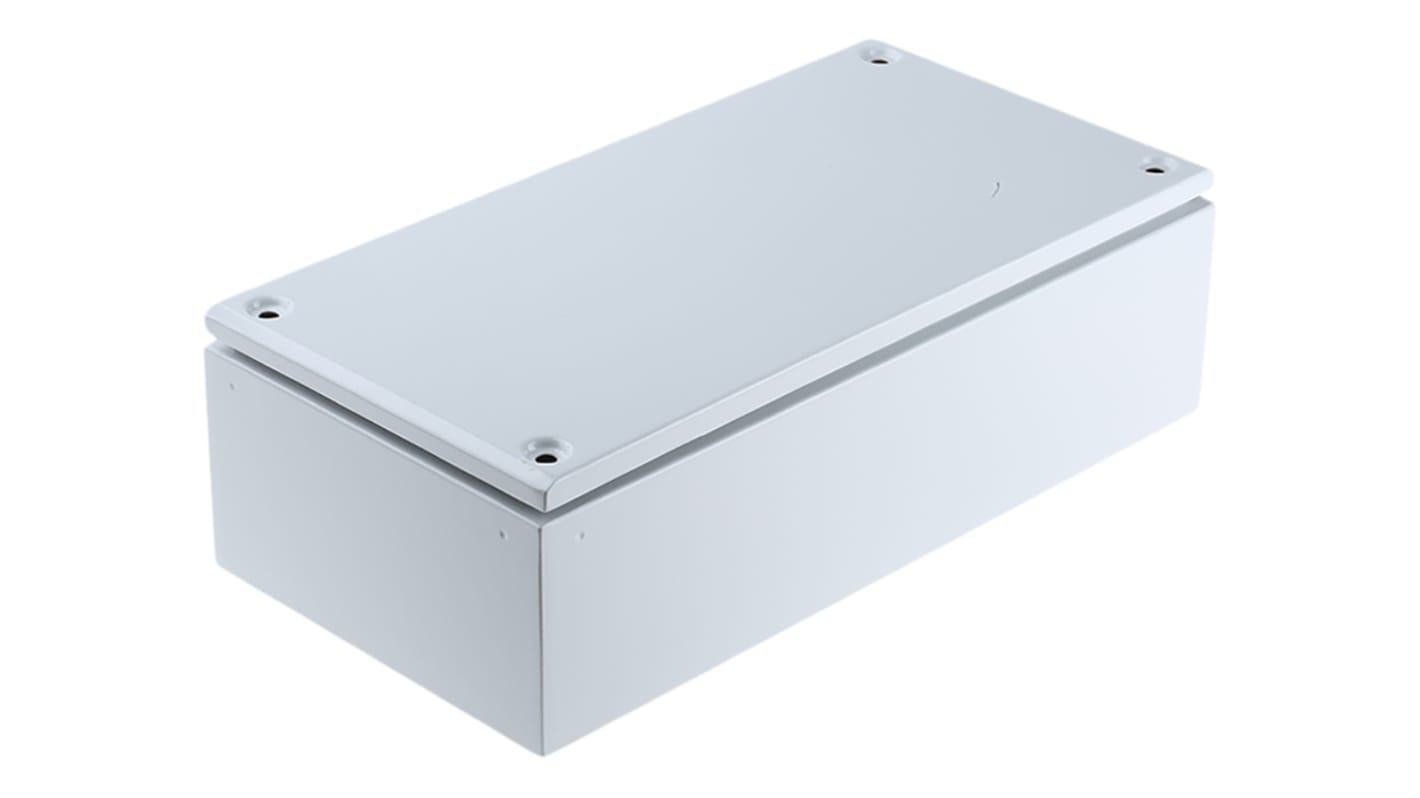

Schneider Electric PanelSeT SBM Series Steel Wall Box, IP66, 200 mm x 400 mm x 120 mm
- RS Stock No.:
- 783-9307
- Distrelec Article No.:
- 304-23-332
- Mfr. Part No.:
- NSYSBM204012
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
€54.85
(exc. VAT)
€67.47
(inc. VAT)
In Stock
- 2 unit(s) ready to ship
- Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | €54.85 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 783-9307
- Distrelec Article No.:
- 304-23-332
- Mfr. Part No.:
- NSYSBM204012
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 200mm | |
| Product Type | Wall Box | |
| External Depth | 120mm | |
| Body Material | Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Chassis Plate | No | |
| Door Lock Type | Screw | |
| Gland Plate | No | |
| Colour | Grey | |
| External Width | 400mm | |
| Internal Mount Type | Panel | |
| Mounting plate | No | |
| Series | PanelSeT SBM | |
| Standards/Approvals | RoHS Compliant | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| IK Rating | IK10 | |
| Fixing Kit | No | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 200mm | ||
Product Type Wall Box | ||
External Depth 120mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Chassis Plate No | ||
Door Lock Type Screw | ||
Gland Plate No | ||
Colour Grey | ||
External Width 400mm | ||
Internal Mount Type Panel | ||
Mounting plate No | ||
Series PanelSeT SBM | ||
Standards/Approvals RoHS Compliant | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
IK Rating IK10 | ||
Fixing Kit No | ||
Schneider Electric Wall Box, Screw Door Lock, Removable Cover - Spacial SBM Series - NSYSBM204012
Keep your electrical equipment under wraps with this wall box from Schneider Electric. It's a lockable, multi-purpose enclosure that you can easily install on a wall using just a screwdriver. As it withstands up to 20 joules of force and protects the contents from a 5kg object being dropped on it from a 40cm height, this is a tough nut to crack. An IP66 rating means you can rest assured it provides complete protection against high-pressure water jets and dust, so it's an ideal solution for environments that need regular washdowns.
• Dimensions of 200 (H) x 400 (W) x 120mm (D) provide plenty of space
• Screw cover can be removed when needed for easy maintenance
• Broad operating temperature range between -35°C and +80°C, for use in extreme environments
Applications
• Manufacturing plants
• Domestic power equipment
• Industrial automation
NSYSBM204012 has external dimensions of 200 x 400 x 120 mm.
Do I have to assemble the box before use?
No, this product has a single-piece body that's folded and welded. All you need to do is fit the cover and tighten the screws.
What's the box made of?
It's made of sheet steel, so it's a strong and long-lasting option.
What type of lock does it have?
The enclosure has an outside sealed area: PZ2 screwdriver captive screw
Schneider Electric Spacial SBM Industrial Wall Box Enclosures.
The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The SBM wall boxes offer excellent perfomance with up to date design a quality product.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.
Features and Benefits.
• 28 sizes available increasing to 42 by using the extension box accessory
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics
Typical Applications.
The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.
Note
(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).
Standards
IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.
