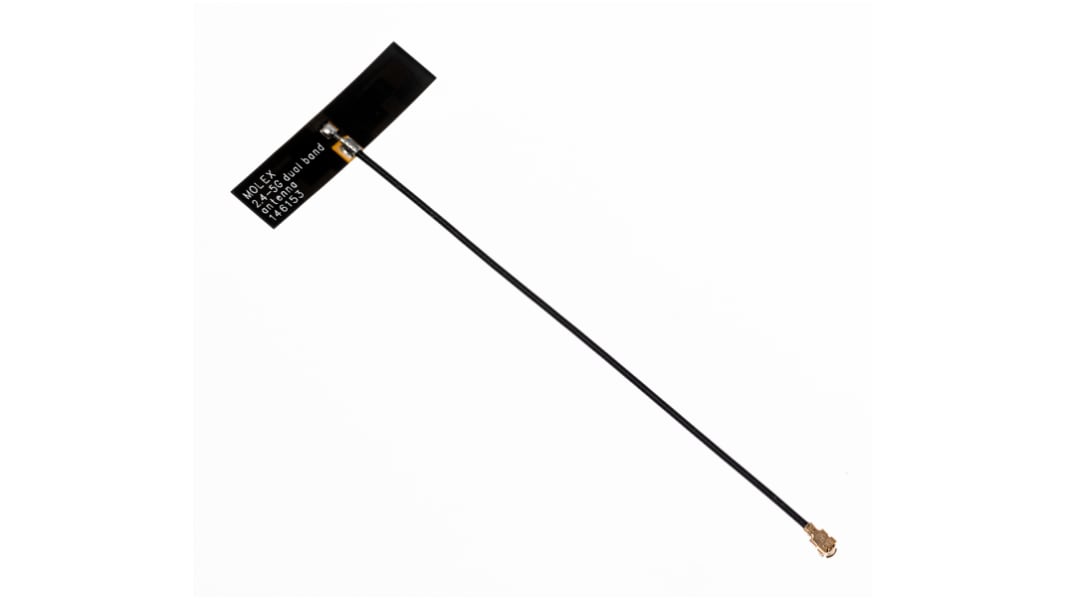

Molex 146153-0250 T-Bar WiFi Antenna, WiFi (Dual Band)
- RS Stock No.:
- 907-6510
- Mfr. Part No.:
- 146153-0250
- Manufacturer:
- Molex
View all WiFi Antennas
874 In stock for delivery within 2 working days
Price Each
€2.56
(exc. VAT)
€3.15
(inc. VAT)
units | Per unit |
1 - 9 | €2.56 |
10 - 24 | €2.48 |
25 - 99 | €2.43 |
100 - 249 | €2.37 |
250 + | €2.28 |
- RS Stock No.:
- 907-6510
- Mfr. Part No.:
- 146153-0250
- Manufacturer:
- Molex
- COO (Country of Origin):
- CN
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
2.4 GHz / 5 GHz Balance Wi-Fi Antennas with Cable, Molex
These balance Wi-Fi antennas from Molex are available in two lengths: 100 mm (9076517) and 250 mm (9076510). With a micro-coaxial cable, both antennas ensure that you have a consistent and fast Wi-Fi connection for use with your devices.
The Wi-Fi antennas are ideal for use within applications such as Machine to Machine communication (M2M), smartmeters, Industrial, Scientific & Medical (ISM) band systems, cameras, navigation devices, mobile gaming devices and ZigBee IEEE 802.15.4 devices.
Features & Benefits of the Wi-Fi Antennas
Dual band (2.4 GHz and 5 GHz)
Double-sided adhesive mounting
Linear polarization
Omnidirectional radiation pattern
Ground-plane independence
High levels of radiation efficiency
Operating temperature range: -30° C to +85° C
The Wi-Fi antennas are ideal for use within applications such as Machine to Machine communication (M2M), smartmeters, Industrial, Scientific & Medical (ISM) band systems, cameras, navigation devices, mobile gaming devices and ZigBee IEEE 802.15.4 devices.
Features & Benefits of the Wi-Fi Antennas
Dual band (2.4 GHz and 5 GHz)
Double-sided adhesive mounting
Linear polarization
Omnidirectional radiation pattern
Ground-plane independence
High levels of radiation efficiency
Operating temperature range: -30° C to +85° C
Molex Standalone Wi-Fi Antenna, Omnidirectional, 2.4 to 5GHz - 146153 Series - 146153-0250
This Molex dual-band Wi-Fi antenna is an ideal choice for network operations at 2.4GHz to 5GHz frequencies. As it's a ground-plane independent antenna, you can mount it on both mobile and fixed installations without losing radiation efficiency. The antenna comes with a micro-coaxial RF (radio frequency) connector that ensures high-speed Wi-Fi transmission with minimal signal loss. The 250mm cable is flexible for ease of installation in tight spaces. This type of antenna is commonly used in 4G, Wi-Fi and WLAN (wireless local area network) devices.
Double-sided adhesive for simple mounting to a device
Omnidirectional design for optimal signal transfer and reception from all directions
Low decibel loss for a high signal efficiency rate of more than 58% on 5G networks and 66% on 2.4G networks
Linear polarisation transmits electromagnetic waves in a single field for greater signal read
Omnidirectional design for optimal signal transfer and reception from all directions
Low decibel loss for a high signal efficiency rate of more than 58% on 5G networks and 66% on 2.4G networks
Linear polarisation transmits electromagnetic waves in a single field for greater signal read
Applications
Network access points
Laboratory equipment
Manufacturing machinery
Laboratory equipment
Manufacturing machinery
What are the benefits of a 2.4GHz to 5GHz frequency range?
The 2.4GHz frequency offers excellent short-range coverage, while the 5GHz frequency has greater penetrating power through physical barriers. This Wi-Fi antenna enables signal transmission at both frequencies for greater versatility and enhanced compatibility.
2.4GHz Antennas
Specifications
Attribute | Value |
RF Protocols | WiFi (Dual Band) |
Internal/External | Internal |
Frequency Range | 2.4 GHz, 5 GHz |
Antenna Physical Form | T-Bar |
Mounting Type | Adhesive Mount |
Antenna Mounting Type | Adhesive |
Gain | 2.4 dBi, 3.2 dBi |
Cable Length | 250mm |
Antenna Directivity | Omnidirectional |
Weight | 1g |
Width | 9mm |
Series | 146153 |
