XP Power 40 W Power Adapter AC/DC Adapter UK, EU, US 12V dc Output, 3.33 A
- RS Stock No.:
- 121-7104
- Distrelec Article No.:
- 301-83-752
- Mfr. Part No.:
- VEC40US12
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)*
€22.87
(exc. VAT)
€28.13
(inc. VAT)
In Stock
- 45 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 08 May 2026
- Plus 100 unit(s) shipping from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €22.87 |
| 5 - 9 | €22.18 |
| 10 - 24 | €21.50 |
| 25 - 49 | €20.81 |
| 50 + | €20.13 |
*price indicative
- RS Stock No.:
- 121-7104
- Distrelec Article No.:
- 301-83-752
- Mfr. Part No.:
- VEC40US12
- Manufacturer:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Sub Type | Power Adapter | |
| Plug Type | UK, EU, US | |
| Output Voltage | 12V dc | |
| Power | 40W | |
| Output Connector Type | DC Jack | |
| Cable Length | 1200mm | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | IEC 320-C14 | |
| Adapter Current | 3.33A | |
| Maximum Operating Temperature | 65°C | |
| Length | 116.3mm | |
| Depth | 31.3mm | |
| Standards/Approvals | CE, EN 60950-1, UL 60950-1, CB | |
| Width | 52.4mm | |
| Efficiency | 89% | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 90V ac | |
| Load Regulation | ±5 % | |
| Series | VEC40 | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Sub Type Power Adapter | ||
Plug Type UK, EU, US | ||
Output Voltage 12V dc | ||
Power 40W | ||
Output Connector Type DC Jack | ||
Cable Length 1200mm | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type IEC 320-C14 | ||
Adapter Current 3.33A | ||
Maximum Operating Temperature 65°C | ||
Length 116.3mm | ||
Depth 31.3mm | ||
Standards/Approvals CE, EN 60950-1, UL 60950-1, CB | ||
Width 52.4mm | ||
Efficiency 89% | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 90V ac | ||
Load Regulation ±5 % | ||
Series VEC40 | ||
Energy Efficiency Level VI | ||

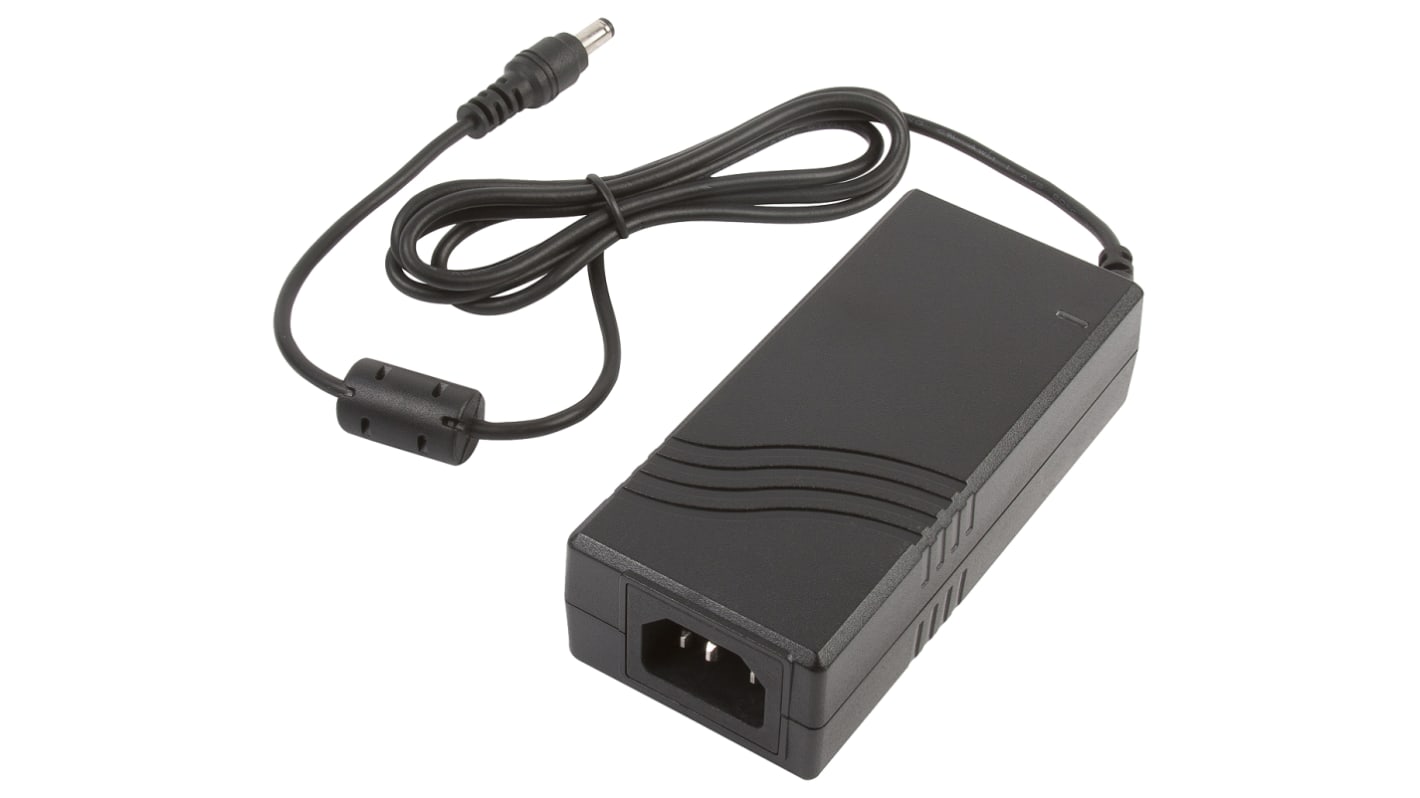

XP Power Desktop Power Supply
The XP Power VEC40 series desktop Power supply is the latest invention with a high-quality adapter and a voltage rating of 12VDC. It provides 40W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 264VAC, its maximum input current is 0.8A. The Power supply has an IEC320 C8 input connector and DC plug output connection.
Features and Benefits
Output current is 3.33A
Total regulation is ±5%
Energy efficiency level VI
European CoC tier 2
Limited Power source approved
Less than 0.15W standby Power
High Power density
Optional inlet connector available
Certifications
IEC68-2-27, 30 g
IEC68-2-6
CCC qualified
