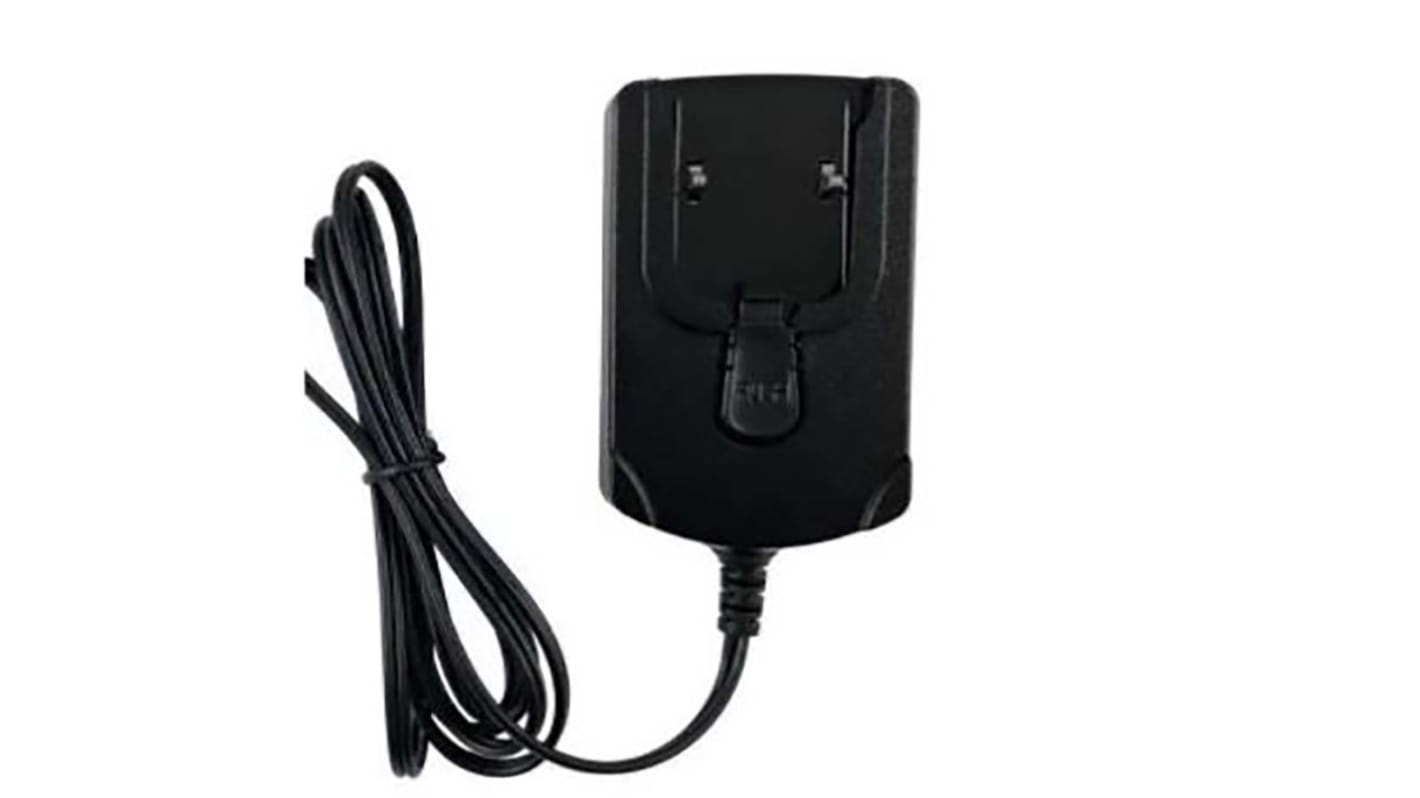

Phihong DC Output AC/DC Adapter AC/DC Adapter Interchangeable 10 W 5V dc Output, 2 A
- RS Stock No.:
- 204-7276
- Mfr. Part No.:
- PSM10R-050A(M)
- Manufacturer:
- Phihong
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
€20.54
(exc. VAT)
€25.26
(inc. VAT)
In Stock
- Plus 19 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €20.54 |
| 5 - 9 | €19.21 |
| 10 + | €17.87 |
*price indicative
- RS Stock No.:
- 204-7276
- Mfr. Part No.:
- PSM10R-050A(M)
- Manufacturer:
- Phihong
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phihong | |
| Sub Type | AC/DC Adapter | |
| Product Type | AC/DC Adapter | |
| Plug Type | Interchangeable | |
| Output Voltage | 5V dc | |
| Output Connector Type | DC Output | |
| Power | 10W | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Regulated | |
| Input Connector Type | 2-Pin | |
| Adapter Current | 2A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 400°C | |
| Length | 71.7mm | |
| Width | 45mm | |
| Standards/Approvals | cULus 60950-1, cULus 62368-1, IEC60950-1, IEC 62368-1, RCM | |
| Depth | 33mm | |
| Maximum Input Voltage | 264V ac | |
| Series | PSM10R | |
| Minimum Input Voltage | 264V ac | |
| Load Regulation | ±5 % | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand Phihong | ||
Sub Type AC/DC Adapter | ||
Product Type AC/DC Adapter | ||
Plug Type Interchangeable | ||
Output Voltage 5V dc | ||
Output Connector Type DC Output | ||
Power 10W | ||
Number of Outputs 1 | ||
Regulated/Unregulated Regulated | ||
Input Connector Type 2-Pin | ||
Adapter Current 2A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 400°C | ||
Length 71.7mm | ||
Width 45mm | ||
Standards/Approvals cULus 60950-1, cULus 62368-1, IEC60950-1, IEC 62368-1, RCM | ||
Depth 33mm | ||
Maximum Input Voltage 264V ac | ||
Series PSM10R | ||
Minimum Input Voltage 264V ac | ||
Load Regulation ±5 % | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
The Phihong Interchangeable wall plug adapter works with an input voltage ranges from 94 to 240V AC. It can be used in Network Equipment, Wireless Communications, Gaming applications.
Double insulated
Limited power source
Efficiency level VI compliance
0°C to +40°C operating temperature
