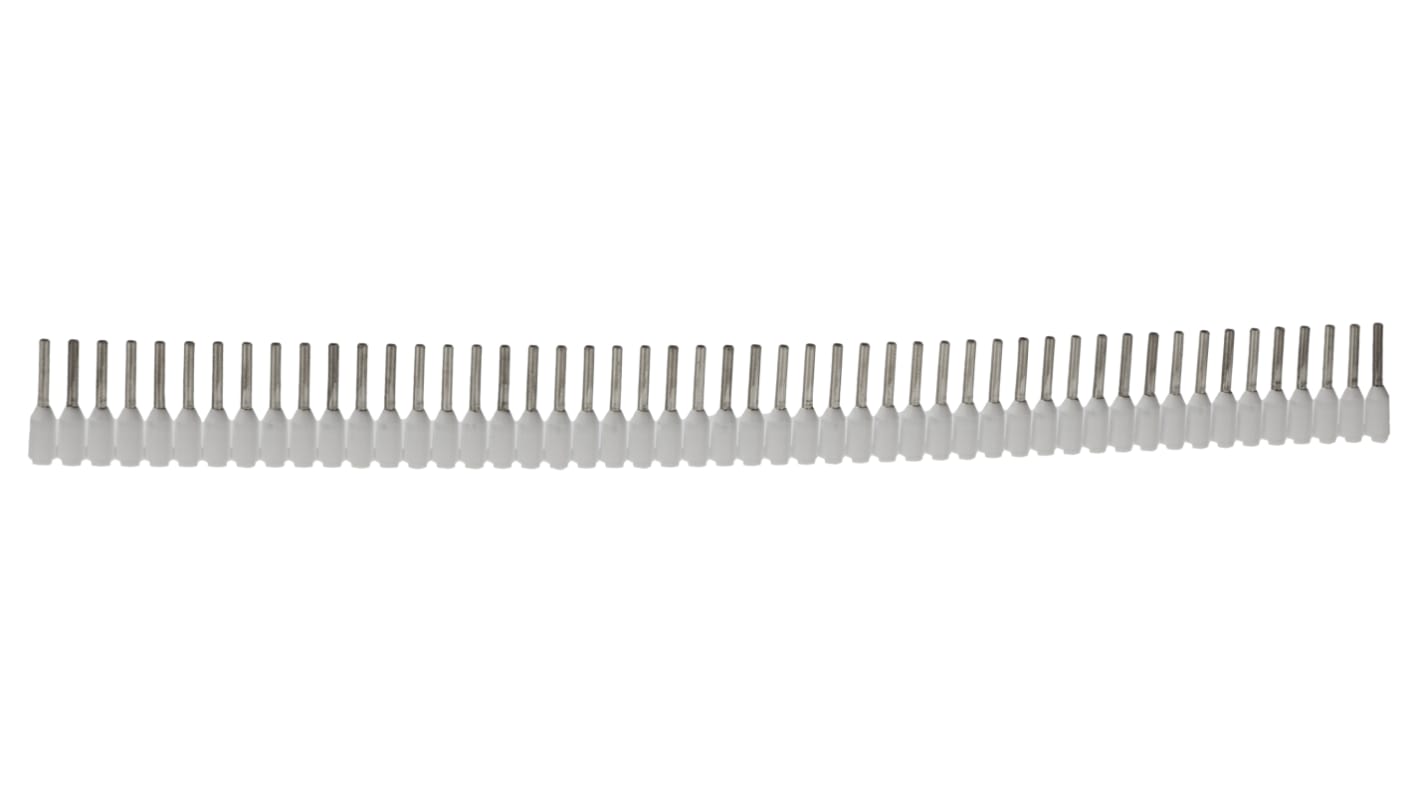

Weidmuller Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1mm Pin Diameter, 0.5mm² Wire Size, White
- RS Stock No.:
- 452-489
- Mfr. Part No.:
- 9021930000
- Manufacturer:
- Weidmüller
2 Within 1 working day(s) (IE stock)
51 Within 2 working day(s) (EU stock)
Price 1 Bag of 500
€43.81
(exc. VAT)
€53.89
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | €43.81 | €0.088 |
5 - 9 | €40.31 | €0.081 |
10 - 24 | €39.43 | €0.079 |
25 - 49 | €35.93 | €0.072 |
50 + | €32.86 | €0.066 |
*price indicative
- RS Stock No.:
- 452-489
- Mfr. Part No.:
- 9021930000
- Manufacturer:
- Weidmüller
Technical data sheets
Legislation and Compliance
Product Details
Weidmuller Crimp Bootlace Ferrule, 8mm Contact Surface Length, 14mm Overall Length - 9021930000
Want a way to secure a stranded wire to a spring or screw clamp in your setup? Pick up this crimp bootlace ferrule from Weidmuller for the job. To achieve a long-lasting hold, simply strip your wire and then push into the metal ferrule. Once it's inside, manually crimp the metal with a crimping tool, such as the multifunction Stripax Plus model (452-473). The resulting bond is gas and moisture-tight, so there's no need to worry about corrosion dampening its performance. This component is designed for use with wires up to 0.5mm² in size, so it's a sure fit for smaller connections.
Features & Benefits
• Light weight of 0.074g to minimise strain on your connection
• Insulated to prevent electrical hazards
• PP material for resistance to corrosion and wear, so it stands up to use in harsh industrial environments
• Insulated to prevent electrical hazards
• PP material for resistance to corrosion and wear, so it stands up to use in harsh industrial environments
Applications
• Industrial automation
• Control units
• Radio broadcasting
• Vehicle wiring
• Control units
• Radio broadcasting
• Vehicle wiring
What types of connections is this product suitable for?
This crimp bootlace ferrule is suitable for use with row clamp or poke-in clamp connectors, so it's a versatile choice.
Approvals
-
Specifications
Attribute | Value |
---|---|
Maximum Wire Size mm² | 0.5mm² |
Pin Diameter | 1mm |
Insulation Material | PP |
Number of Entries | 1 |
Colour | White |
Pin Length | 8mm |
Insulation | Insulated |
Maximum Wire Size AWG | 20AWG |
Overall Length | 14mm |
Minimum Wire Size AWG | 20AWG |
