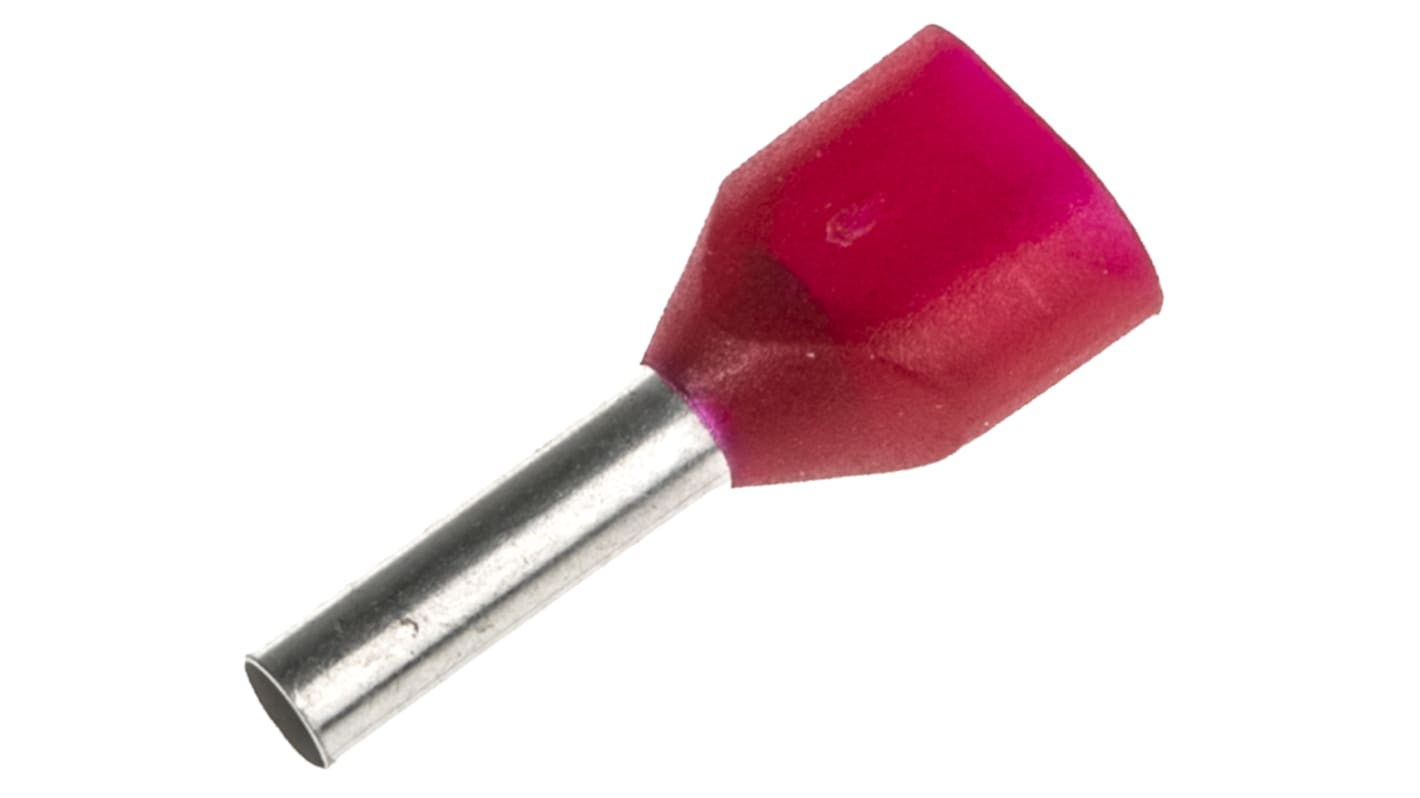

    Schneider Electric, AZ5DE Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 2.2mm Pin Diameter, 2 x 1mm² Wire Size, Red

    RS Stock No.:
    254-6542
    Mfr. Part No.:
    AZ5DE010
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Bootlace Ferrules
    5800 Within 2 working day(s) (EU stock)
    4300 Within 2 working day(s) (EU stock)
    Add to Basket
    units

    Added

    Price Each (In a Box of 100)

    €0.137

    (exc. VAT)

    €0.169

    (inc. VAT)

    unitsPer unitPer Box*
    100 - 400€0.137€13.70
    500 - 2400€0.116€11.60
    2500 - 4900€0.102€10.20
    5000 - 9900€0.089€8.90
    10000 +€0.075€7.50
    *price indicative
    RS Stock No.:
    254-6542
    Mfr. Part No.:
    AZ5DE010
    Manufacturer:
    Schneider Electric
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Schneider Electric Crimp Bootlace Ferrule, Twin Conductor End Type, 18AWG - AZ5DE Series - AZ5DE010


    Connecting wires to your system is a walk in the park thanks to this crimp bootlace ferrule from Schneider Electric. As it's a twin conductor cable end, you can link two 18AWG cables at once with a simple clamp of a tool. Thanks to the plastic bezel's insulating properties, you won't be shocked by any electrical hazards when using it. To keep your equipment running efficiently, you can rest assured the highly conductive copper tubing supports rapid-fire connection speeds.

    • Dispenser pack lets you quickly grab what you need without spillage
    • Broad operating temperature range between -20°C and +105°C to handle demanding conditions
    • Halogen-free plastic won't release any dangerous gases if there's a fire, protecting users

    Applications


    • Manufacturing facilities
    • Automation systems
    • Domestic appliances
    • Electrical repairs

    How do I connect this component to a cable?


    It's a breeze to install this termination unit. To start, strip the end and push the wires through the collar until they're snug inside the metal tube. Next, you'll need a crimping tool to clamp the metal and keep the wires squeezed securely in place.


    Specifications

    AttributeValue
    Maximum Wire Size mm²2 x 1mm²
    Pin Diameter2.2mm
    Insulation MaterialPlastic
    Number of Entries2
    ColourRed
    Pin Length8mm
    InsulationInsulated
    Maximum Wire Size AWG2 x 18AWG
    Overall Length15mm
    SeriesAZ5DE
    Minimum Wire Size AWG18AWG
    Better World ProductYes
    Better World VerificationGreen Premium
