RS PRO Black Nylon Cable Gland Kit, M50 Thread, IP66

RS Stock No.:: 185-6105
Manufacturer:: RS PRO

RS PRO Black Nylon Cable Gland Kit, M50 Thread, IP66

10 In stock for delivery within 2 working days

Added

Price Each (In a Bag of 5)

€18.096

(exc. VAT)

€22.258

(inc. VAT)

Units	Per unit	Per Bag*
5 +	€18.096	€90.48
*price indicative

RS Stock No.:: 185-6105
Manufacturer:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

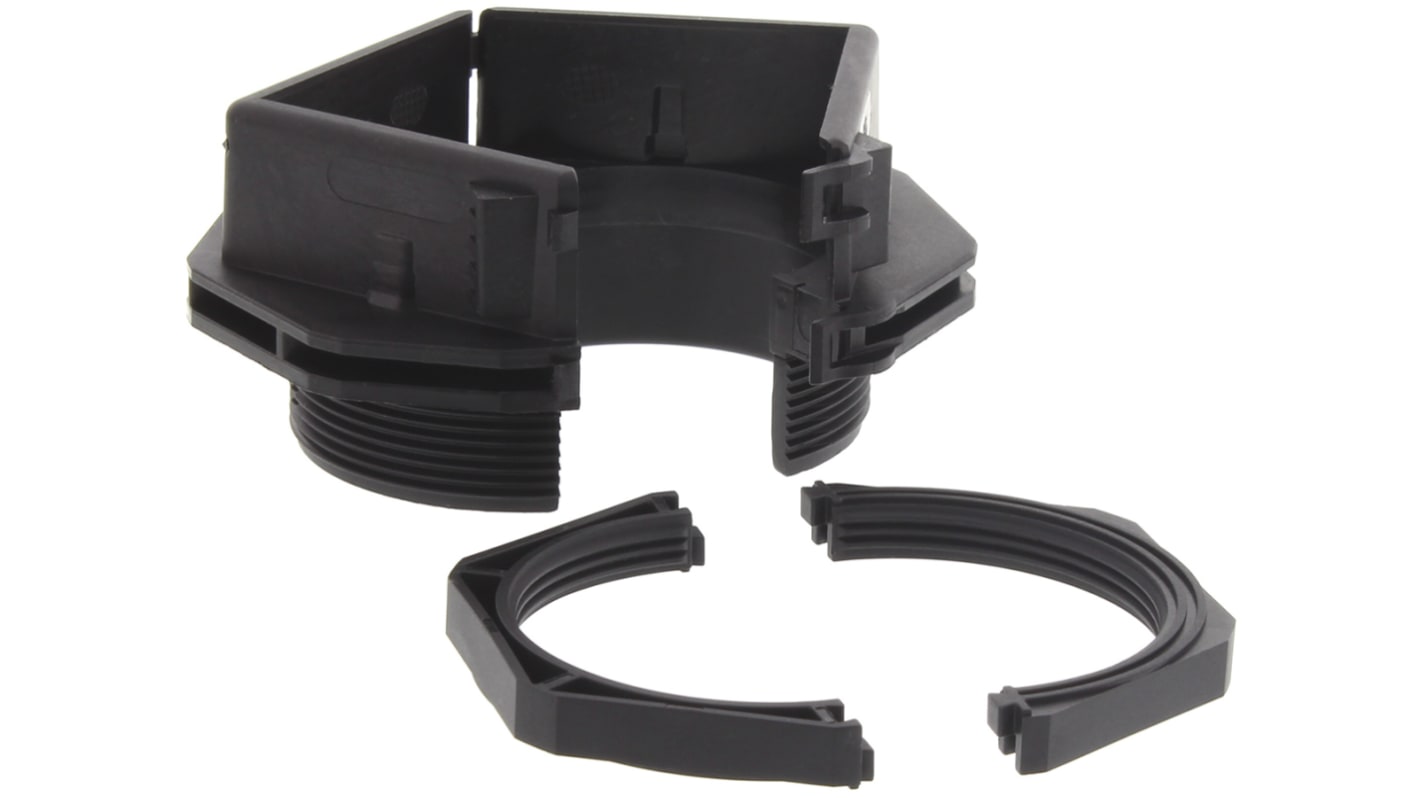

RS PRO Separable Cable Gland

The RS PRO separable black cable gland has a 72mm x 72mm x 39.7mm (L x W x H) dimension and a 72mm screw head diameter. The cable gland has a metric thread of size 40mm and pitch 1.5mm.

Features and Benefits

• Halogen-free
• Polyamide 6.6 material
• Ring type seal
• Screw mounted
• Silicone-free
• Spanner width of 68mm
• Strain relief
• TPE sealing material
• Working temperature ranges between -40°C and 120°C

Applications

• Cable entry

Certifications

• IP66 rated
• UL 94 v-0 approved

Specifications

Attribute	Value
Thread Size	M50
Material	Nylon 66
Colour	Black
IP Rating	IP66
Locknut Included	No
Fire Behaviour	Halogen Free, Self-extinguishing
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+120°C
Number of Pieces	5
Standards Met	RoHS Compliant, UL 94 V-0
Kit Includes	Cable Gland
Operating Temperature Range	-40 → +120 °C
