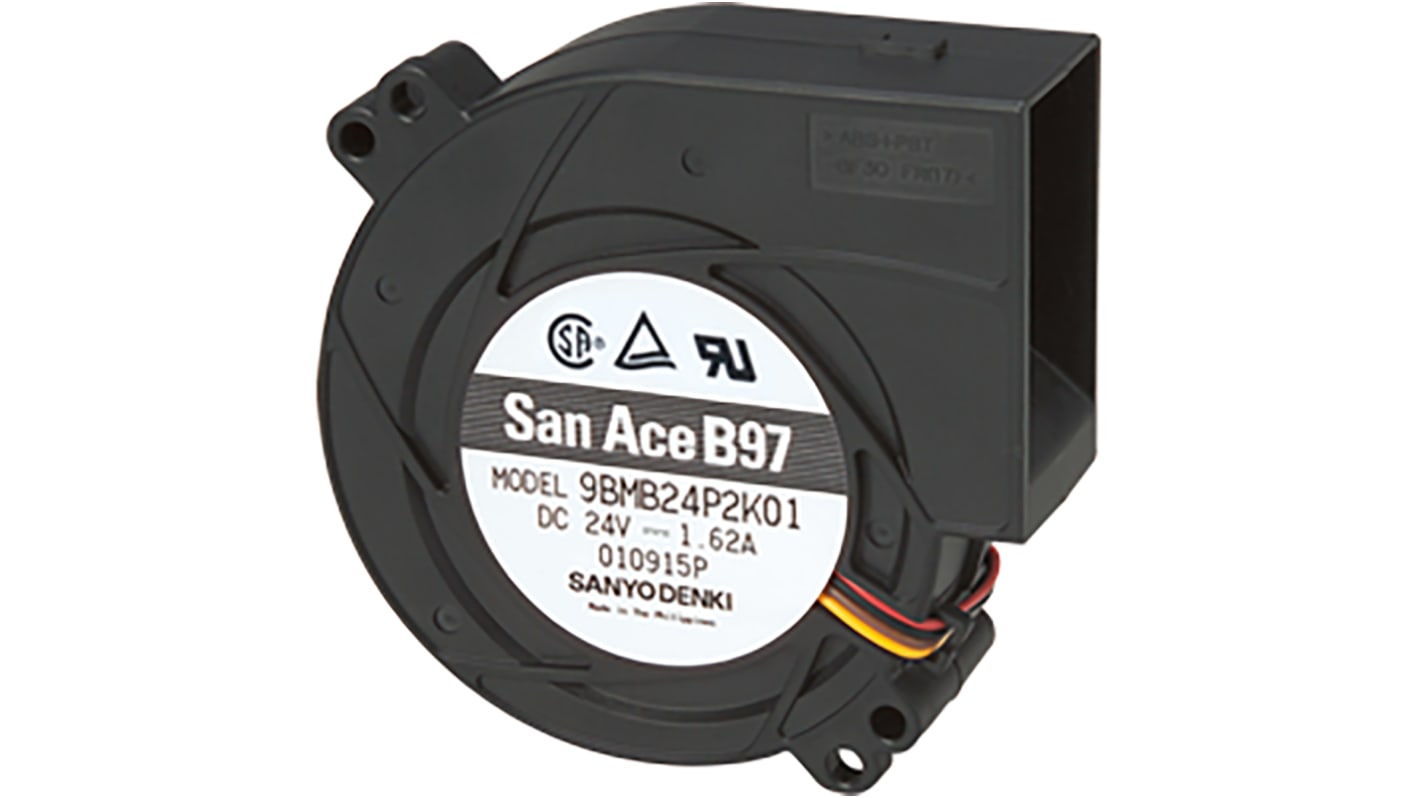

Sanyo Denki San Ace B97 Series Blower, 24 V dc, 56.8cfm, DC Operation, 97 x 97 x 33mm
- RS Stock No.:
- 191-9313
- Distrelec Article No.:
- 301-54-399
- Mfr. Part No.:
- 9BMB24P2K01
- Manufacturer:
- Sanyo Denki
Bulk discount available
Subtotal (1 unit)*
€37.31
(exc. VAT)
€45.89
(inc. VAT)
In Stock
- 409 unit(s) ready to ship from another location
- Plus 53 unit(s) shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | €37.31 |
5 - 9 | €35.88 |
10 - 24 | €34.54 |
25 - 49 | €33.31 |
50 + | €32.15 |
*price indicative
- RS Stock No.:
- 191-9313
- Distrelec Article No.:
- 301-54-399
- Mfr. Part No.:
- 9BMB24P2K01
- Manufacturer:
- Sanyo Denki
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sanyo Denki | |
Supply Voltage | 24 V dc | |
Blower Type | Blower | |
AC or DC Operation | DC | |
Air Flow | 56.8cfm | |
Series | San Ace B97 | |
Height | 97mm | |
Width | 97mm | |
Depth | 33mm | |
Dimensions | 97 x 97 x 33mm | |
Fan Speed | 6850rpm | |
Noise Level | 57dB(A) | |
Mounting Hole Spacing | 71 x 71mm | |
Direction of Curve | Backward | |
Maximum Current | 1.62A | |
Static Pressure | 1280Pa | |
Termination Type | Lead Wire | |
Special Features | 50/60 Hz, 500 VAC, for 1 Minute, Frame:Plastic (Flammability: UL 94V-0), Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Reverse Polarity Protection | |
Sensor Type | PWM | |
Inlet Diameter | 56mm | |
Vertical Hole Spacing | 71mm | |
Horizontal Hole Spacing | 71mm | |
Mounting Hole Diameter | 4.5mm | |
Select all | ||
---|---|---|
Brand Sanyo Denki | ||
Supply Voltage 24 V dc | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 56.8cfm | ||
Series San Ace B97 | ||
Height 97mm | ||
Width 97mm | ||
Depth 33mm | ||
Dimensions 97 x 97 x 33mm | ||
Fan Speed 6850rpm | ||
Noise Level 57dB(A) | ||
Mounting Hole Spacing 71 x 71mm | ||
Direction of Curve Backward | ||
Maximum Current 1.62A | ||
Static Pressure 1280Pa | ||
Termination Type Lead Wire | ||
Special Features 50/60 Hz, 500 VAC, for 1 Minute, Frame:Plastic (Flammability: UL 94V-0), Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Reverse Polarity Protection | ||
Sensor Type PWM | ||
Inlet Diameter 56mm | ||
Vertical Hole Spacing 71mm | ||
Horizontal Hole Spacing 71mm | ||
Mounting Hole Diameter 4.5mm | ||
