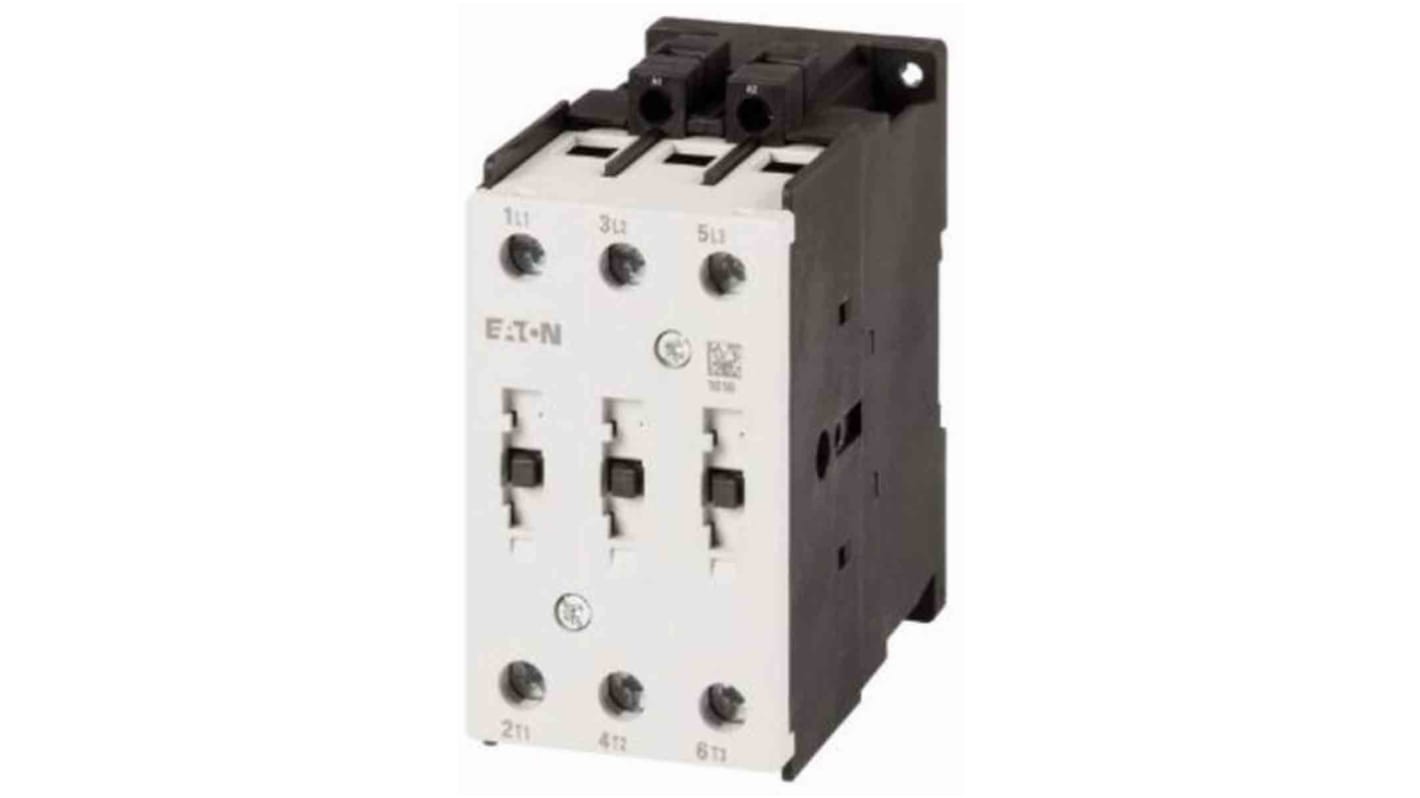

Eaton DILMT65 Contactor, 240V ac Coil, 3-Pole, 65 A, 30 kW 230V, 3 NO, 690V

View all Contactors

Subtotal (1 unit)*

€342.01

(exc. VAT)

€420.67

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +€342.01

*price indicative

RS Stock No.:
201-7624
Mfr. Part No.:
190964 DILMT65(230V50HZ/240V60HZ)
Manufacturer:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Contactor

Coil Voltage

240V ac

Number of Poles

3

Contact Voltage

690V

Contact Current

65A

Power Rating

30kW

Series

DILMT65

Function

Motor Control

Mount Type

DIN Rail

Normal State Configuration

3 NO

Terminal Type

Screw

Control Circuit Voltage Uc

230V

Contactor Application

Motor Control

Operational Current Ie

65A

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

55°C

Width

55mm

Depth

103mm

Standards/Approvals

CSA, EN, IEC, UL

Length

104mm

Pole and Throw Configuration

3

RoHS Status: Exempt

COO (Country of Origin):
CN
The Eaton power contactors for Motors works with a subrange of 95A, It has three number of poles with a utilization category AC-1 for non-inductive or slightly inductive loads and resistance furnaces, NAC-3 for normal AC induction motors (starting, switch

Maximum rating for three phase motors 50 to 60Hz

AC operation Voltage

-40 to 80°C storage temperature

Screw type of electrical connection of main circuit

Note

Eaton formerly known as Moeller
