Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	400 V ac
	Number of Poles	3
	Contact Voltage Rating	400 V ac
	Contact Current Rating	65 A
	Power Rating	30 kW
	Range	xStart
	Series	DILM
	Normal State Configuration	3NO
	Number Of Auxiliary Contacts	0
	Terminal Type	Screw
	Width	55mm
	Length	132.1mm
	Depth	132.1mm
	Pole and Throw Configuration	3P
	Maximum Operating Temperature	+60°C
	Minimum Operating Temperature	-25°C
	Control Voltage	400/440 V ac

	Select all
	Brand Eaton
	Coil Voltage 400 V ac
	Number of Poles 3
	Contact Voltage Rating 400 V ac
	Contact Current Rating 65 A
	Power Rating 30 kW
	Range xStart
	Series DILM
	Normal State Configuration 3NO
	Number Of Auxiliary Contacts 0
	Terminal Type Screw
	Width 55mm
	Length 132.1mm
	Depth 132.1mm
	Pole and Throw Configuration 3P
	Maximum Operating Temperature +60°C
	Minimum Operating Temperature -25°C
	Control Voltage 400/440 V ac

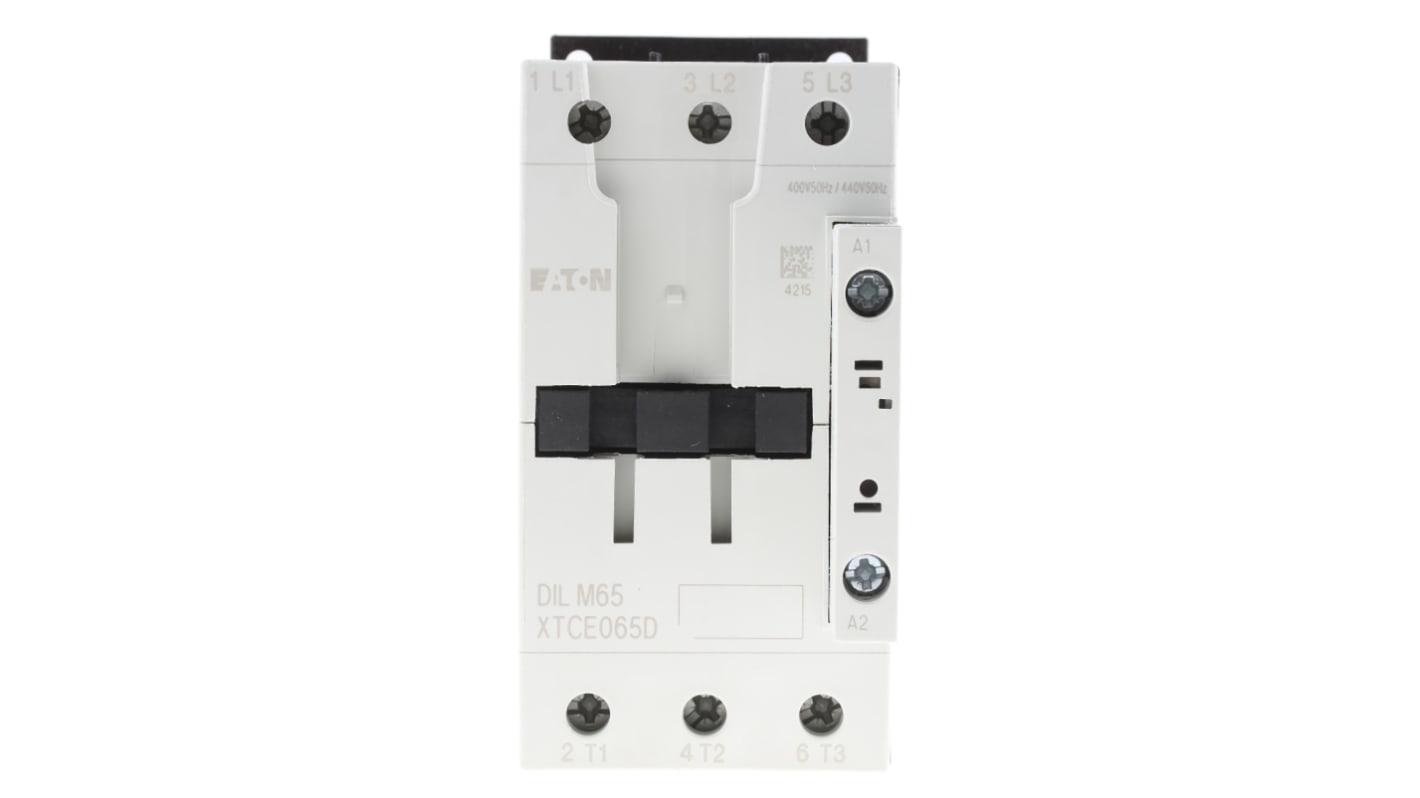

Eaton xStart DILM Contactor, 400 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 400 V ac

Eaton DILM Series Contactor, 400V AC Coil Voltage, 3NO Normal State Configuration - 277896 DILM65(400V50HZ,440V60HZ)

Features & Benefits

Applications

What is the recommended installation environment for this equipment?

Can it handle inductive loads?

Are there any specific connection requirements for this contactor?

How frequently can it operate under normal conditions?

Is it compatible with energy-efficient motors?
