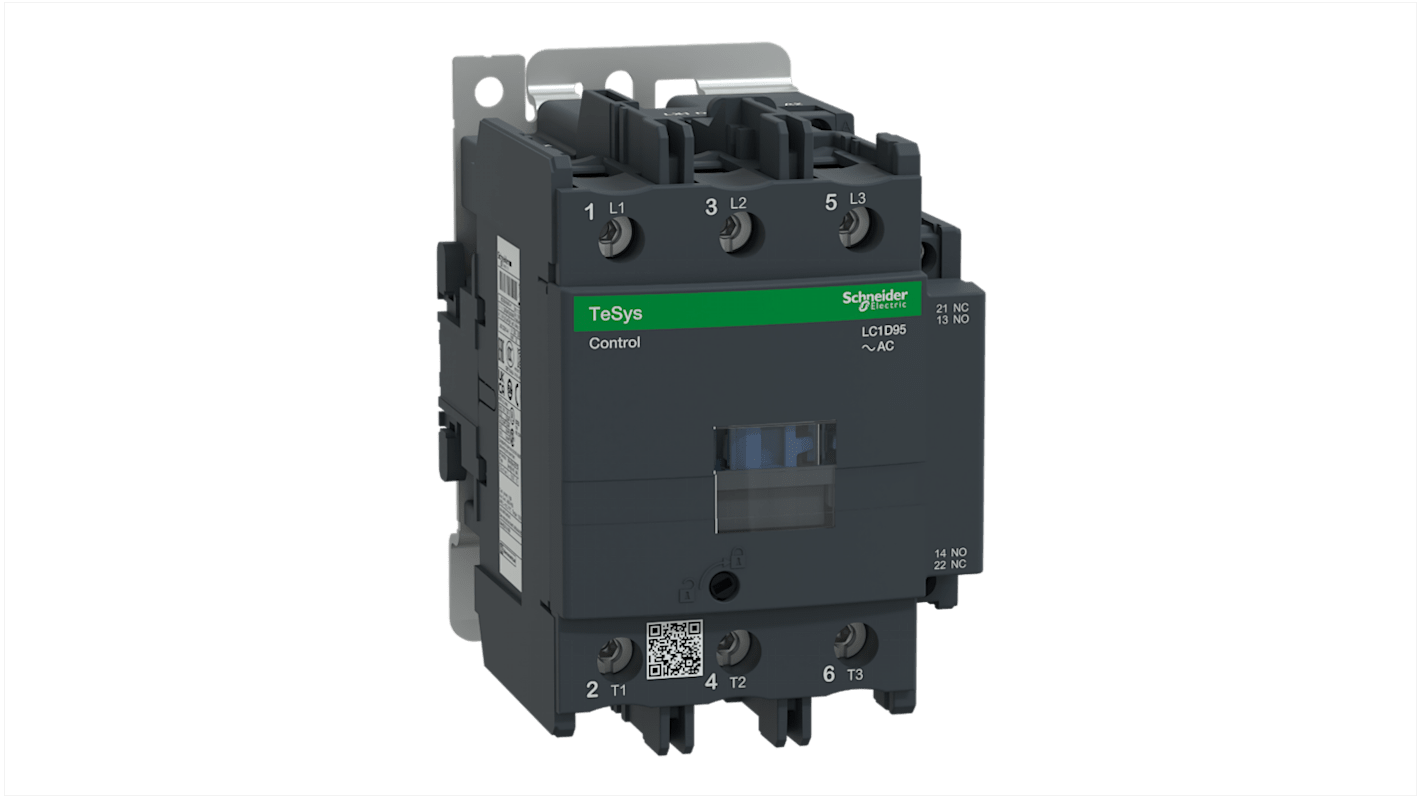

Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 95 A, 45 kW, 3NO, 1 kV ac

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

For rock-steady motor control, turn to this contactor from Schneider Electric. With a high current carrying capacity of 92A, it's just what you need to reliably switch power to demanding loads, such as those found in lighting and motor control circuits. Thanks to contacts that open and close at lightning-fast speed, the unit reduces the risk of electrical arcs that could cause damage to equipment. A maximum operating rate of 3,600 cycles per hour allows this contactor to withstand repetitive switching without buckling under pressure.

• Recyclability potential of 70% to reduce the amount of waste sent to landfill
• IP20-rated front face is protected against human touch and objects larger than 12mm
• Flame-retardant, so it's unlikely to contribute towards the spread of a fire
• Screw clamp terminals for fuss-free wiring using only a screwdriver

• Automotive manufacturing
• Water management systems
• HVAC equipment
• Public-building infrastructure

Yes, it withstands vibration and shock, so it's a practical option for rail transportation and other moving applications.
