Schneider Electric LC1D Contactor, 24V ac Coil, 3-Pole, 115 A, 55 kW 24V ac, 3 NO, 1kV ac

RS Stock No.:: 608-9374
Mfr. Part No.:: LC1D115B7
Manufacturer:: Schneider Electric

Schneider Electric LC1D Contactor, 24V ac Coil, 3-Pole, 115 A, 55 kW 24V ac, 3 NO, 1kV ac

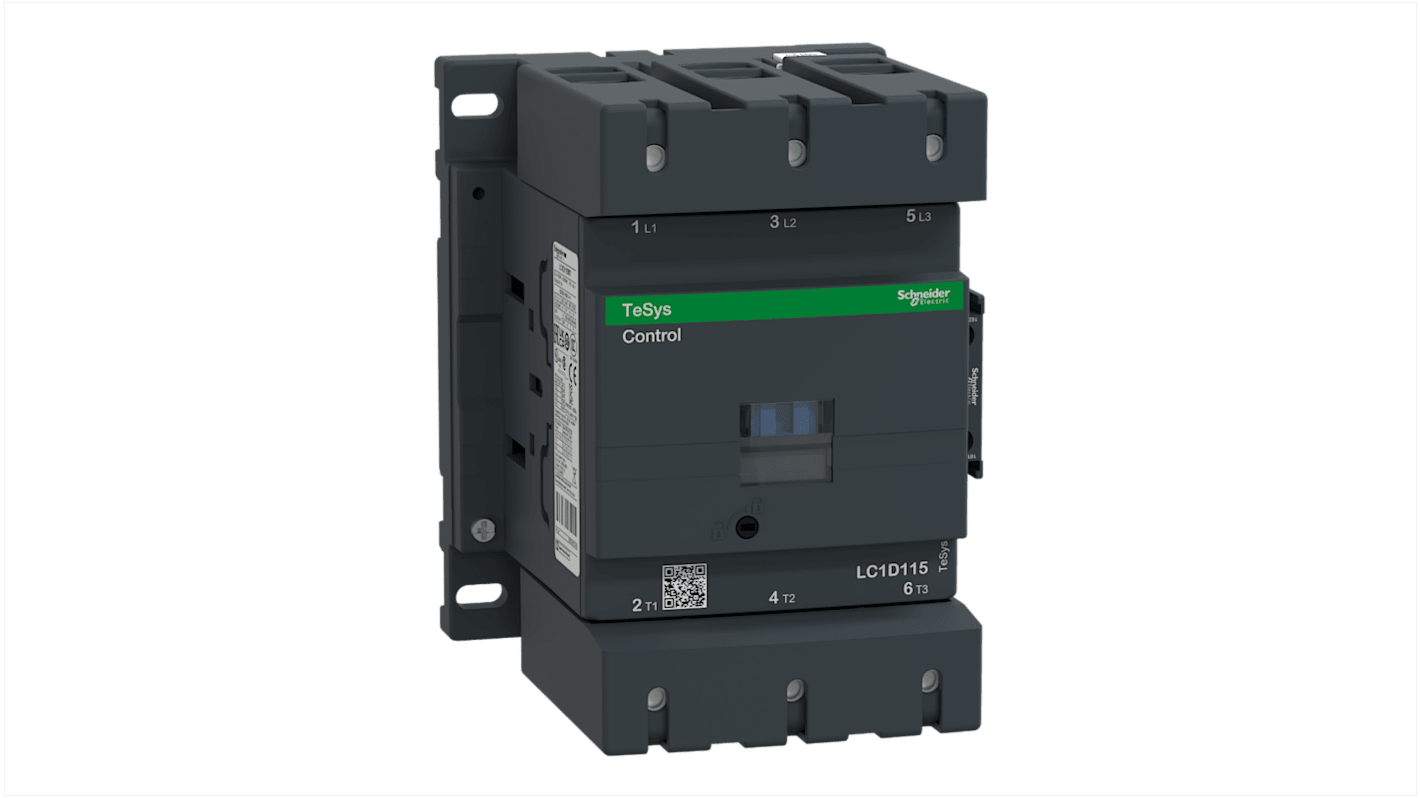

Image representative of range

Subtotal (1 unit)*

€1,150.56

(exc. VAT)

€1,415.19

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	€1,150.56

*price indicative

RS Stock No.:: 608-9374
Mfr. Part No.:: LC1D115B7
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	24V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	1kV ac
	Contact Current	115A
	Series	LC1D
	Power Rating	55kW
	Function	Motor Control, Resistive Load
	Mount Type	DIN Rail
	Normal State Configuration	3 NO
	Number of Auxiliary Contacts	2
	Auxiliary Contact Configuration	1 NO/1 NC
	Terminal Type	Screw
	Operational Current Ie	115A
	Control Circuit Voltage Uc	24V ac
	Minimum Operating Temperature	-40°C
	Contactor Application	Resistive Load, Motor Control
	Maximum Operating Temperature	60°C
	Standards/Approvals	CCC, IEC, RoHS, CSA, EAC, EN 60947-5-1, UL
	Length	158mm
	Depth	136mm
	Width	120mm
	Pole and Throw Configuration	3

	Select all
	Brand Schneider Electric
	Coil Voltage 24V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 1kV ac
	Contact Current 115A
	Series LC1D
	Power Rating 55kW
	Function Motor Control, Resistive Load
	Mount Type DIN Rail
	Normal State Configuration 3 NO
	Number of Auxiliary Contacts 2
	Auxiliary Contact Configuration 1 NO/1 NC
	Terminal Type Screw
	Operational Current Ie 115A
	Control Circuit Voltage Uc 24V ac
	Minimum Operating Temperature -40°C
	Contactor Application Resistive Load, Motor Control
	Maximum Operating Temperature 60°C
	Standards/Approvals CCC, IEC, RoHS, CSA, EAC, EN 60947-5-1, UL
	Length 158mm
	Depth 136mm
	Width 120mm
	Pole and Throw Configuration 3

COO (Country of Origin):: CZ

Schneider Electric LC1D Series TeSys D Contactor, Load Voltage 400V, 115A Contact Current Rating - LC1D115B7

This contactor is a vital component in industrial automation, offering reliable control for motor and load applications. With a robust design, it features three poles configured as normally open (3NO). It operates with a coil voltage of 24V AC, suitable for diverse electrical tasks. The contactor measures 158mm in length, 120mm in width, and 136mm in depth, making it an efficient fit for DIN rail mounting.

Features & Benefits

• Supports high current applications with a 115A contact rating

• Operates effectively within a temperature range of -40°C to +60°C

• Capable of handling loads up to 55 kW at 400V

• Two auxiliary contacts provide flexible circuit control options

• Designed for easy installation with screw clamp terminals

Applications

• Utilised in motor control systems for efficient machinery operation

• Suitable for load control in industrial settings

• Employed in automated processes requiring reliable switching

• Ideal for installations needing a compact DIN rail solution

How does this contactor function in controlling high-power motors?

It achieves this through its ability to manage significant electrical loads, ensuring safe operation with up to 115A under its rated specifications, which is crucial for motor control tasks.

What is the relevance of the temperature rating for operational efficiency?

The wide temperature range of -40°C to +60°C ensures it remains functional in extreme conditions, making it suitable for various industrial environments without compromising performance or safety.

Can this contactor accommodate different load types?

Yes, it supports various categories like AC-1 for resistive loads and AC-3 for inductive loads, making it versatile for different applications.
