Allen Bradley 100S-C Contactor, 24V dc Coil, 3-Pole, 12 A, 7.5 kW 24V dc, 2 NO/3 NC, 690V ac

View all Contactors

Subtotal (1 unit)*

€124.69

(exc. VAT)

€153.37

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 18 unit(s) shipping from 04 May 2026
  • Plus 6 unit(s) shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +€124.69

*price indicative

RS Stock No.:
776-8463
Distrelec Article No.:
302-27-124
Mfr. Part No.:
100S-C12EJ23C
Manufacturer:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Coil Voltage

24V dc

Product Type

Contactor

Number of Poles

3

Contact Voltage

690V ac

Contact Current

12A

Power Rating

7.5kW

Series

100S-C

Function

Motor Control, Reversing

Mount Type

Panel

Normal State Configuration

2 NO/3 NC

Number of Auxiliary Contacts

5

Auxiliary Contact Configuration

2 NO/3 NC

Terminal Type

Screw

Minimum Operating Temperature

-25°C

Operational Current Ie

12A

Control Circuit Voltage Uc

24V dc

Contactor Application

Direct-on-Line (DoL), Safety

Maximum Operating Temperature

60°C

Standards/Approvals

CCC, CE, CSA, cULus, EAC, IEC, RoHS, UL

Width

45mm

Depth

126mm

Length

81mm

Pole and Throw Configuration

3P

RoHS Status: Exempt

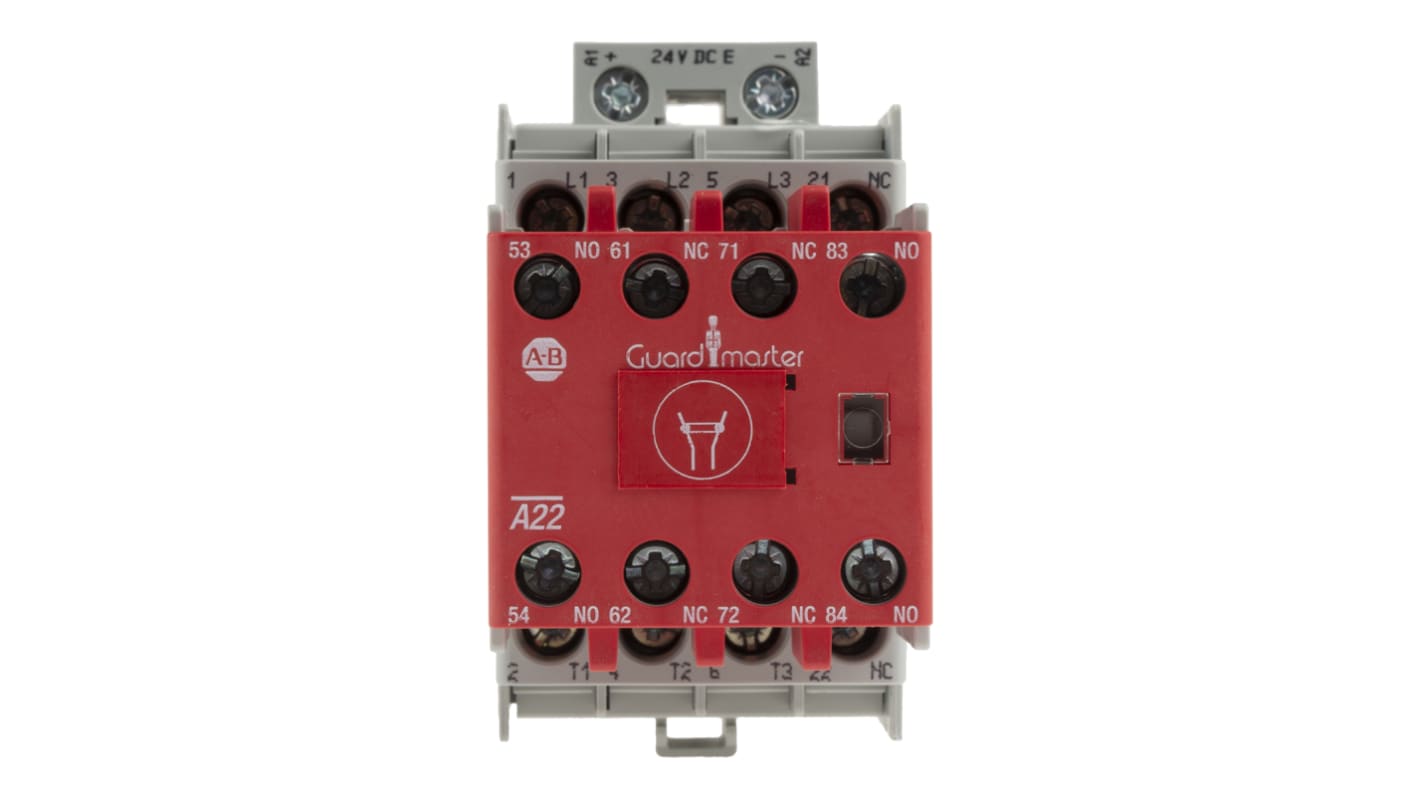

Allen Bradley Safety Contactor


This safety contactor from Rockwell Automation's Allen Bradley range provides sustainable protection to high current-carrying devices. Its reliable technology is ideally suited to any device that's frequently turned on and off, such as a motor or a lighting circuit. The unit features a protective cover to prevent unauthorised access, and its window ensures good visibility of the contactor's working status. Gold-plated, bifurcated auxiliary contacts have high sensitivity for precise and fast response times. A red housing makes this unit simple to identify as a safety device.

Features and Benefits


• Suitable for direct mounting into the contactor to save panel space

• Compact design with dimensions of 81 (length) x 45 (width) x 125.5 mm (depth)

• Wide operating temperature range of -25°C to +60°C for use in demanding environments

Standards and Certifications


• CE (Conformité Européene)

• UL (Underwriters' Laboratories)

• CSA (Canadian Standards Association)

• RINA (Registro Italiano Navale)

• IEC 60947 (International Electrotechnical Commission)

• EN 60947 (European Norm)

How does a safety contactor work?


CE certified

UL listed

CSA certified

RINA certified

IEC60947

EN60947

A safety contactor incorporates spring-loaded contacts that make or break power supply lines to a load. These contacts are designed to open and close rapidly to assist with arc suppression, ensuring the contactor's ability to interrupt heavy motor currents with minimal damage over a long life cycle.
