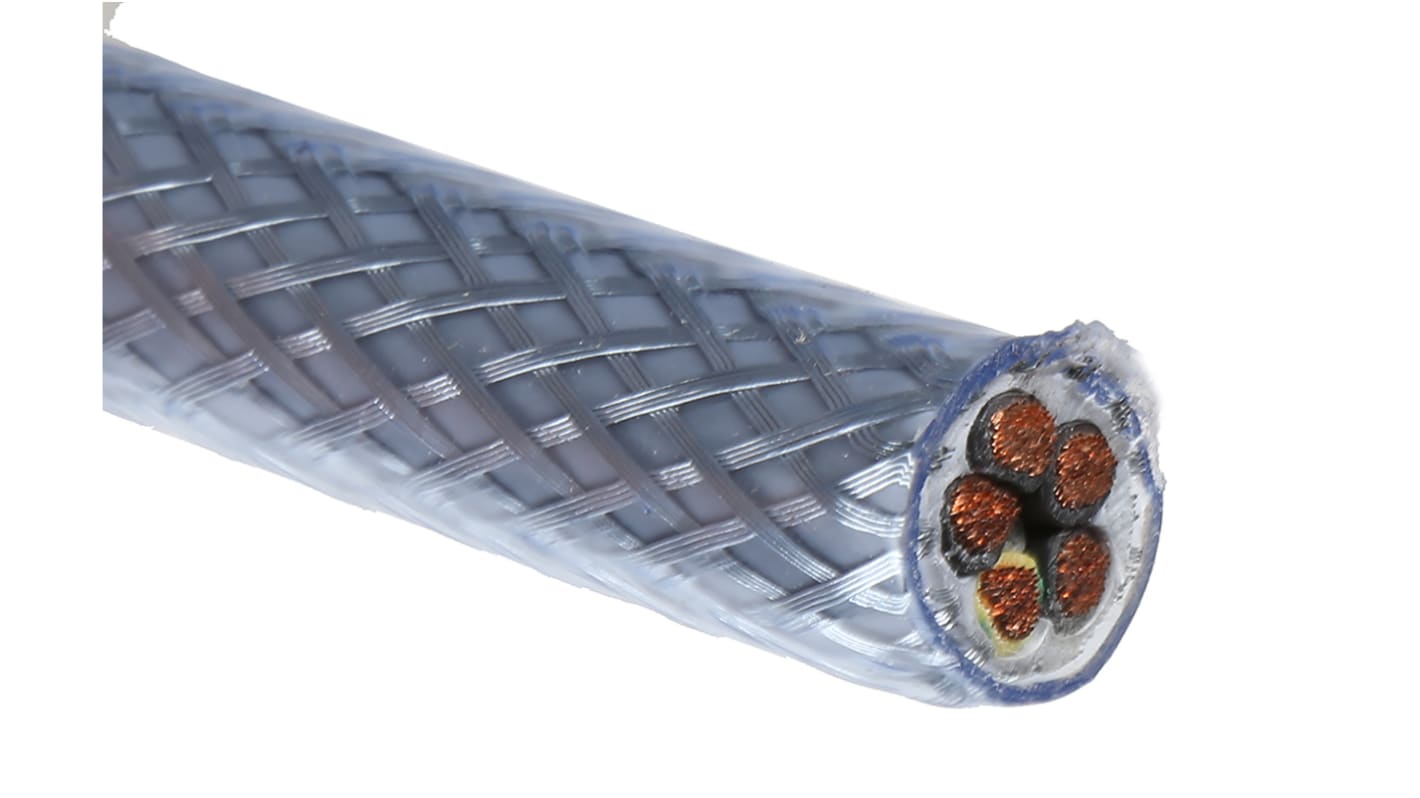

RS PRO Control Cable, 5 Cores, 6 mm², SY, Screened, 50m, Transparent PVC Sheath, 9 AWG

RS Stock No.:: 827-4215
Manufacturer:: RS PRO

RS PRO Control Cable, 5 Cores, 6 mm², SY, Screened, 50m, Transparent PVC Sheath, 9 AWG

Subtotal (1 reel of 50 metres)*

€622.15

(exc. VAT)

€765.24

(inc. VAT)

In Stock

20 unit(s) ready to ship from another location
Plus 10 unit(s) shipping from 21 August 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	€622.15	€12.443

*price indicative

Compare

RS Stock No.:: 827-4215
Manufacturer:: RS PRO

LAPP Control Cable, 5 Cores, 6 mm² Cross Sectional Area - 38101368

This control cable is designed for versatile applications requiring reliable connectivity. Featuring five cores and a cross-sectional area of 6 mm², this SY control cable offers robust performance in a variety of environments. With a transparent PVC sheath, it ensures visibility of the inner components while maintaining flexibility. It is suitable for use in dry, damp, or wet conditions, making it ideal for numerous installations.

Features & Benefits

• Screened design ensures reduced electromagnetic interference
• Made with a flame-retardant PVC sheath for enhanced safety
• Rated for a voltage of 300/500 V, offering dependable durability
• Flexible structure allows for easy installation in tight spaces

Applications

• Utilised in machine tools and production lines
• Suitable for control equipment on conveyors
• Ideal for measuring, regulating, and computer units
• Supports free movement without tensile stress
• Effective in both industrial and commercial

What is the significance of the screened design for this cable?

The screened design significantly reduces electromagnetic interference, making it suitable for sensitive applications and ensuring data integrity in control systems.

How does the PVC sheathing contribute to its performance?

The PVC sheathing provides durability and protection against environmental factors, while its flame-retardant properties enhance safety in installations.

What are the implications of the cable's temperature ratings?

With a minimum operating temperature of -40°C and a maximum of +80°C, it can perform efficiently in extreme temperature conditions, making it versatile for various installations.

What type of mechanical protection does this cable offer?

The cable features galvanised steel wire braiding, which provides additional mechanical strength, protecting it from potential damage during use.

Type SY

Note

SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Cores	5
	Cross Sectional Area	6 mm²
	American Wire Gauge	9 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Control Cable Type	SY
	Sheath Colour	Transparent
	Screen Type	Braid
	Screened/Unscreened	Screened
	Length	50m
	Outer Diameter	16.7mm
	Minimum Bend Radius	Fixed - 6 x D Occasional Flexing - 20 x D
	Voltage Rating	300/500 V
	Current Rating	44 A
	CPR Certification	Eca
	Standards Met	IEC 60228
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+80°C
	Bedding Material	PVC
	Conductor Resistance	3.3 Ω/km
	Filler Material	Non-Wicking Filler
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Cable Shape	Multicore
	Insulation Material	PVC
	Core Strands	84/0.3 mm
	Earth Cable	Yes

	Select all
	Brand RS PRO
	Number of Cores 5
	Cross Sectional Area 6 mm²
	American Wire Gauge 9 AWG
	Conductor Material Copper
	Sheath Material PVC
	Control Cable Type SY
	Sheath Colour Transparent
	Screen Type Braid
	Screened/Unscreened Screened
	Length 50m
	Outer Diameter 16.7mm
	Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D
	Voltage Rating 300/500 V
	Current Rating 44 A
	CPR Certification Eca
	Standards Met IEC 60228
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +80°C
	Bedding Material PVC
	Conductor Resistance 3.3 Ω/km
	Filler Material Non-Wicking Filler
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Cable Shape Multicore
	Insulation Material PVC
	Core Strands 84/0.3 mm
	Earth Cable Yes
